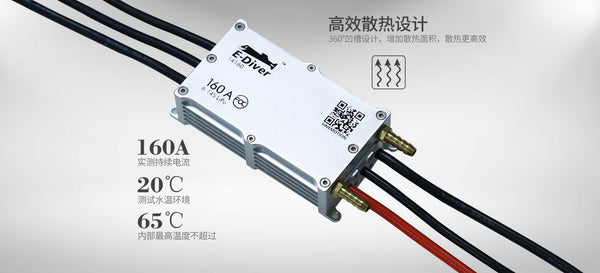

IP68 waterproof and watercooling 8-16s 160A ESC for Jetboard efoil propulsion system boat ect
| Feature | Description | Remarks |
| battery support | 12 - 14S LiPo | Supports lithium batteries up to 4.35V/S |
| Maximum working voltage | 60.9V | |
| Throttle PWM input level | 3.3V/5V | |
| Throttle PWM Compatible Frequency | 50 - 500Hz | |
| Throttle PWM working pulse width | 1100 - 1900uS | "Identification pulse width: 400 - 2200uS, beyond which it is regarded as an invalid signal |
| Limit the maximum speed (7 pairs of poles) | 13000rpm | Parking pulse width: 400 - 1090us |
| Communication Interface | RS485 | Support data return and firmware upgrade |
| digital communication throttle | support | Support 50Hz refresh rate per ESC |
| Maximum peak current | 180A | Acceleration peak current (10S) |
| Maximum continuous current | 150A | Water cooling test |
| Rated output power | 8KW | Measured 54V power supply, 150A continuous current |

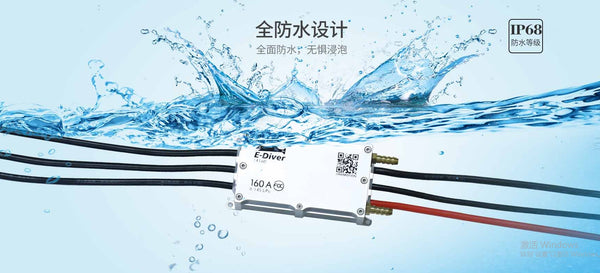

| waterproof level | IP67 | External motor cable and power cable reach IP45 |
| Use ambient temperature | -20 - 45℃ | Water cooling test |
| Indication function | drive motor sound | Support various scales, support customization |
| Bright red and green bi-color LED | The color can be selected by upgrading, and the yellow light is a fault indication | |
| Power cord hot swap | With anti-sparking function | Extend battery plug life |
| Use safety | Stall protection | Continuously stalled for 1S, it will enter the stall protection state. If the stall time is less than 1S, it will not enter the protection state and will continue to start. |
| Overcurrent Protection | The software limits the peak value of the motor line current not to exceed the set value | |
| Overheating power protection | After the maximum internal temperature reaches the set limit, reduce the output power to ensure that the temperature will not continue to rise | |
| Short circuit protection | Hardware short-circuit protection, including motor line-to-ground, power supply short-circuit, short-circuit between motor lines, and MOS tube fault short-circuit | |
| Overvoltage protection | Hardware short-circuit protection, including motor line-to-ground, power supply short-circuit, short-circuit between motor lines, and MOS tube fault short-circuit | |
| Input signal discrimination | Filter and discriminate the input signal. Prevent the introduction of interference signals after the PWM line is disconnected to trigger false triggering | |

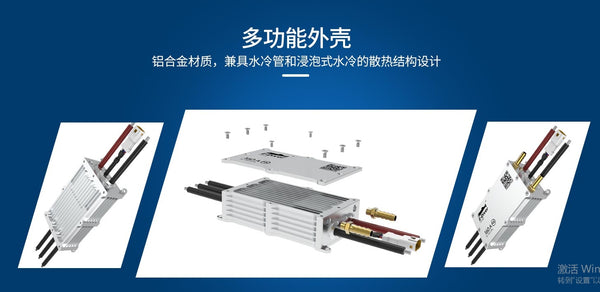

| physical dimension | "With water cooling tube: 123.80*57.00*28.50mm; |
square |
| Without water cooling tube: | ||
| 111.30*57.00*26.00mm" |
