16S 75V 300A Vesc waterproof watercooled electric motorcycle efoil bldc motor controller
16S 75V 300A Vesc waterproof watercooled electric motorcycle efoil bldc motor controller
  • Load image into Gallery viewer, 16S 75V 300A Vesc waterproof watercooled electric motorcycle efoil bldc motor controller
  • Load image into Gallery viewer, 16S 75V 300A Vesc waterproof watercooled electric motorcycle efoil bldc motor controller

16S 75V 300A Vesc waterproof watercooled electric motorcycle efoil bldc motor controller

Regular price
$285.00
Sale price
$285.00
Regular price
$350.00
Sold out
Unit price
per
Shipping calculated at checkout.

VESC 75V 300A In CNC T6 Silicone Sealed Aluminum Box - The most Powerful Vedder Electronic Speed Controller ever



Rating

·    Voltage: 14V – 75V (Safe for 3S to 16S LiPo).
     Voltage spikes may not exceed 75V!
·    Current: Continuous 300A, Burst 450A.  Values depend on the mounting, ambient temperature and air/water circulation around the device!
·    5V and 12V 1A output for external electronics
·    3.3V 0,5A output for external electronics
·    Modes: DC, BLDC, FOC (sinusoidal)
·    Supported sensors: ABI, HALL, AS5047
·    up to 150K ERPM drivable

 e

Features

·    Accurate current and voltage measurement on all motor phases (3x phase shunts)
·    Regenerative braking
·    Sensored or sensorless operation + hybrid mode
·    Configurable RPM-, current-, voltage- and power limits
·    Input source: PPM, Analog, NRF Nyko Kama Nunchuck
·    Communication ports: USB, CAN, UART
·    Throttle curve and ramping for all input sources
·    Seamless 4-quadrant operation
·    Motor revolution, amp hour, watt hour counting
·    Real time data analysis and read out via communication ports
·    Adjustable protection against:
-    Low input voltage
-    High input voltage
-    High motor current
-    High input current
-    High regenerative braking current (separate limits for the motor and the input)
-    High RPM (separate limits for each direction).
-    Over tempertaure (MOSFET and motor)

Guide how to use the vesc 75v 300A

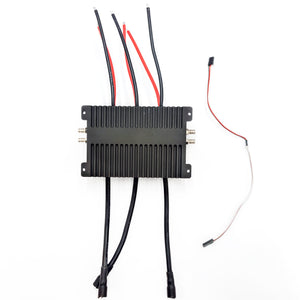

Product picture:
