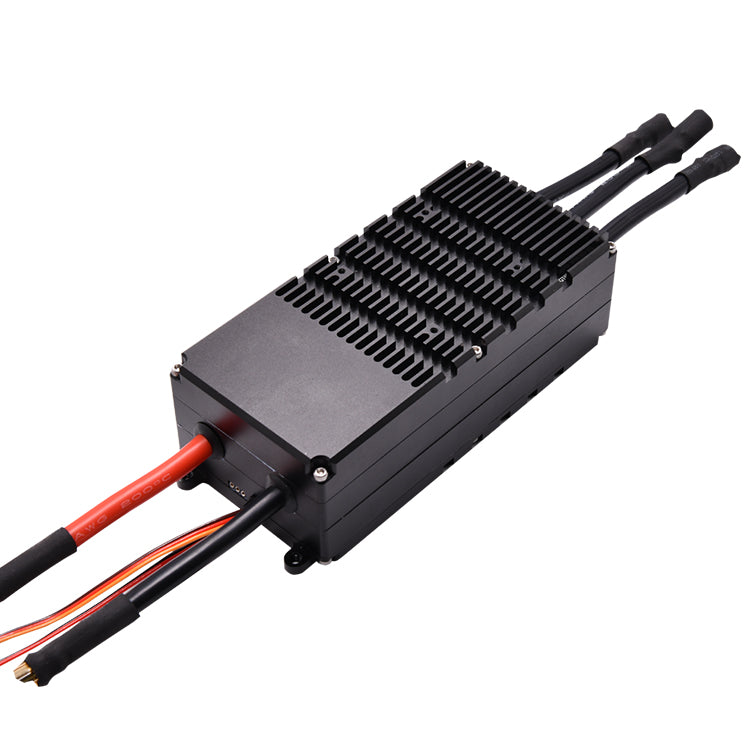

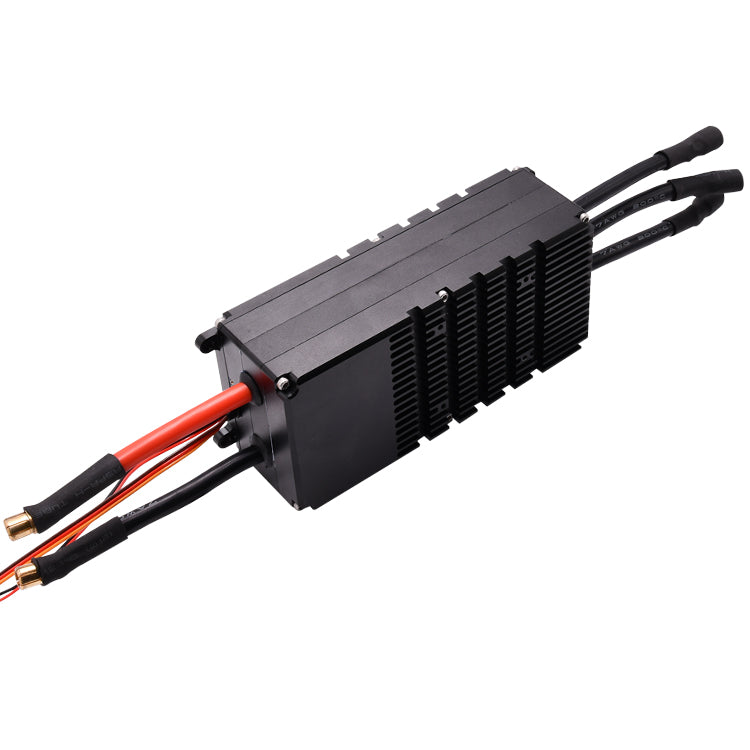

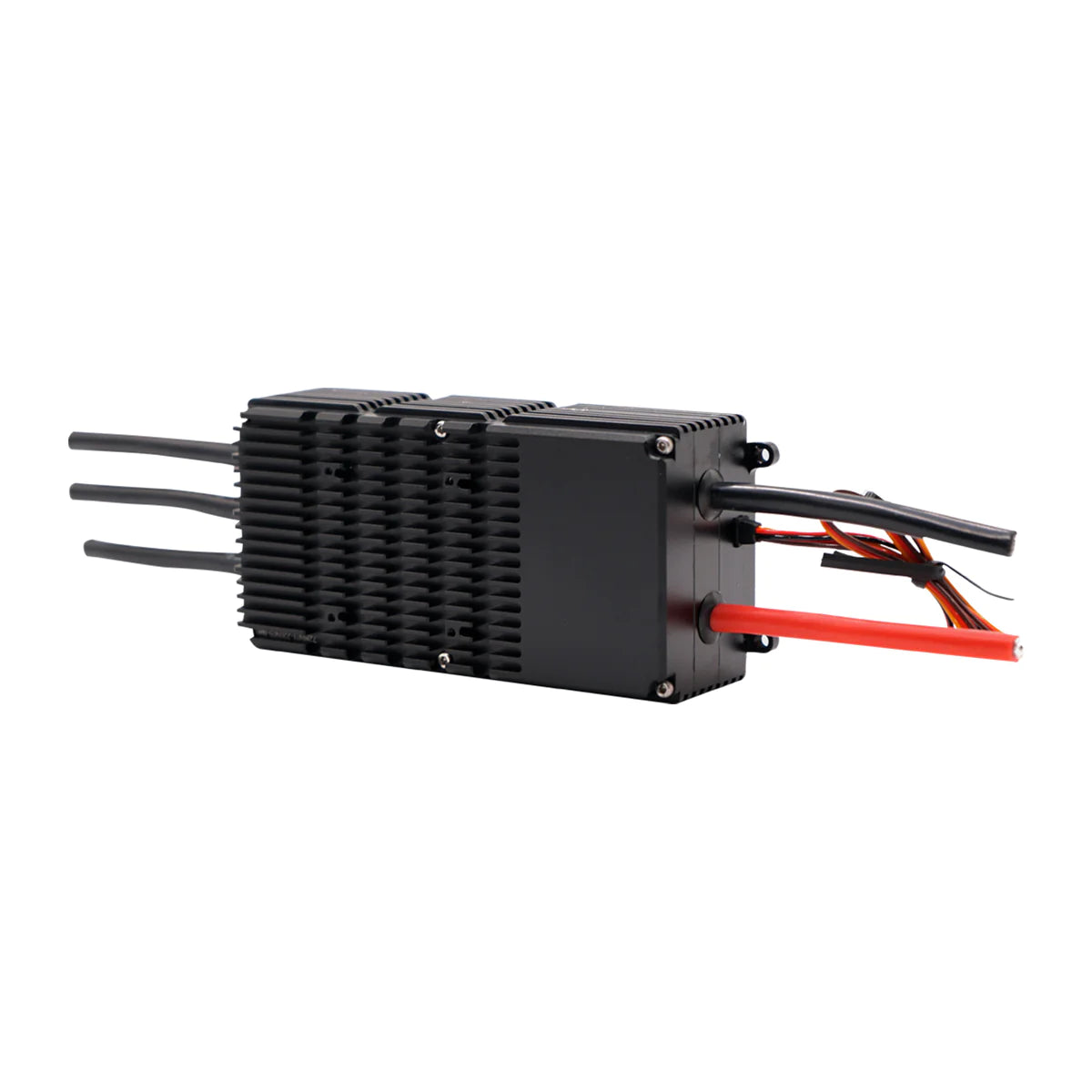

FRC 24S 200A high voltage powerful ESC for heavy lift drone paramotor paraglider airboat ect
FRC 24S 200A high voltage powerful ESC for heavy lift drone paramotor paraglider airboat ect
Share
98 件存货
SKU:FRC24S200A-19991
查看完整详细信息Product Image
ESC Introduction
-
This brushless ESC uses advanced algorithms to precisely control the commutation of the brushless motor, and achieves reliable high-voltage drive by using professional industrial-grade brushless motor drive chips
ESC Data
-
Voltage input range :DC50-100V Max DC100V
Battery cells: 12-24S
300A version is max current and rated current is 240A, Please ensure that the heat dissipation and ventilation conditions are good, the case temperature is below 80 degrees, which is normal temperature, and the peak current is 300A, 15 seconds
Control signal standard:
Compatible with model airplane remote control cycle is 50Hz, high level time is 1000-2000us command, the highest input frequency is 400Hz,. Note: The maximum input pulse width must be below 2050us
The remote control input signal position is isolated from the power supply position, and remote control signals is transmitted internally through optocoupler isolation. The red line of the remote control line must be provided with 5-8v power supply by the receiver or flight control.
Calibrate the throttle range, same as normal ESC: before the power supply, first enter
the maximum value of RC signal, then power on, ESC will produces a series of sounds;
when sounds stop, enter minimum value of RC signal, ESC will produces a series of
sounds again; after sounds stop, power off. Then ESC can be used once power on. Refer
to details of instruction
Factory environment
Free RC Hobby is a company founded in2012 China, specializing in thedesign and manufacturing of brushless DC
motors, ESCs, and propellers.
Years of foreign trade relations, trustworthy
24S 200A ESC use
Mainly used in electric scooter Drones ang VTOL drone
The scope of application of the company motor
It is widely used in hydrofoil surfboard, electric skateboard bicycle powered paraglider, multi-rotor UAV, fixed-wing robot, electric tool, etc.
