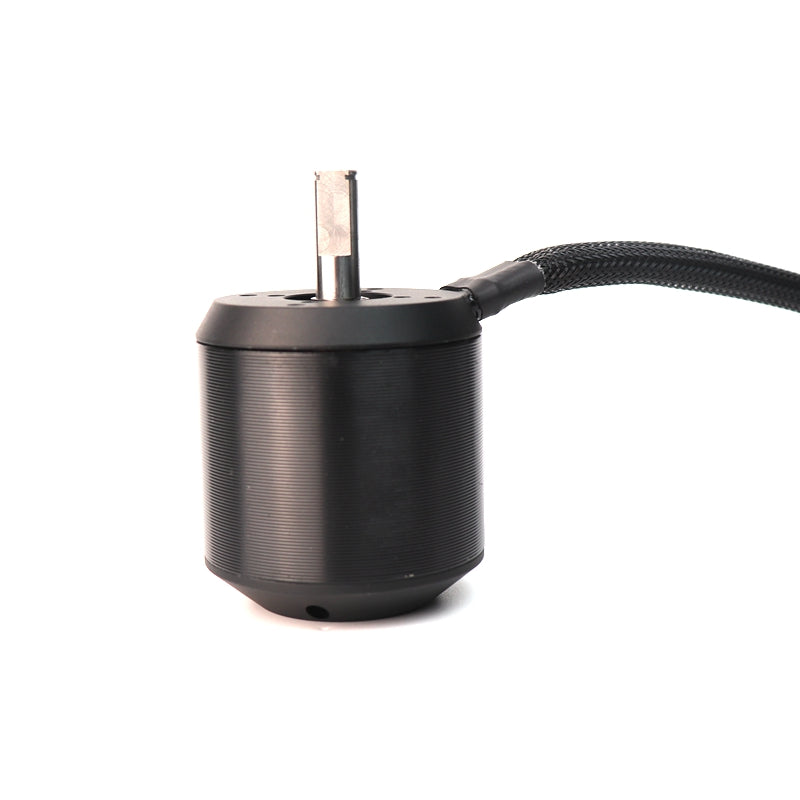

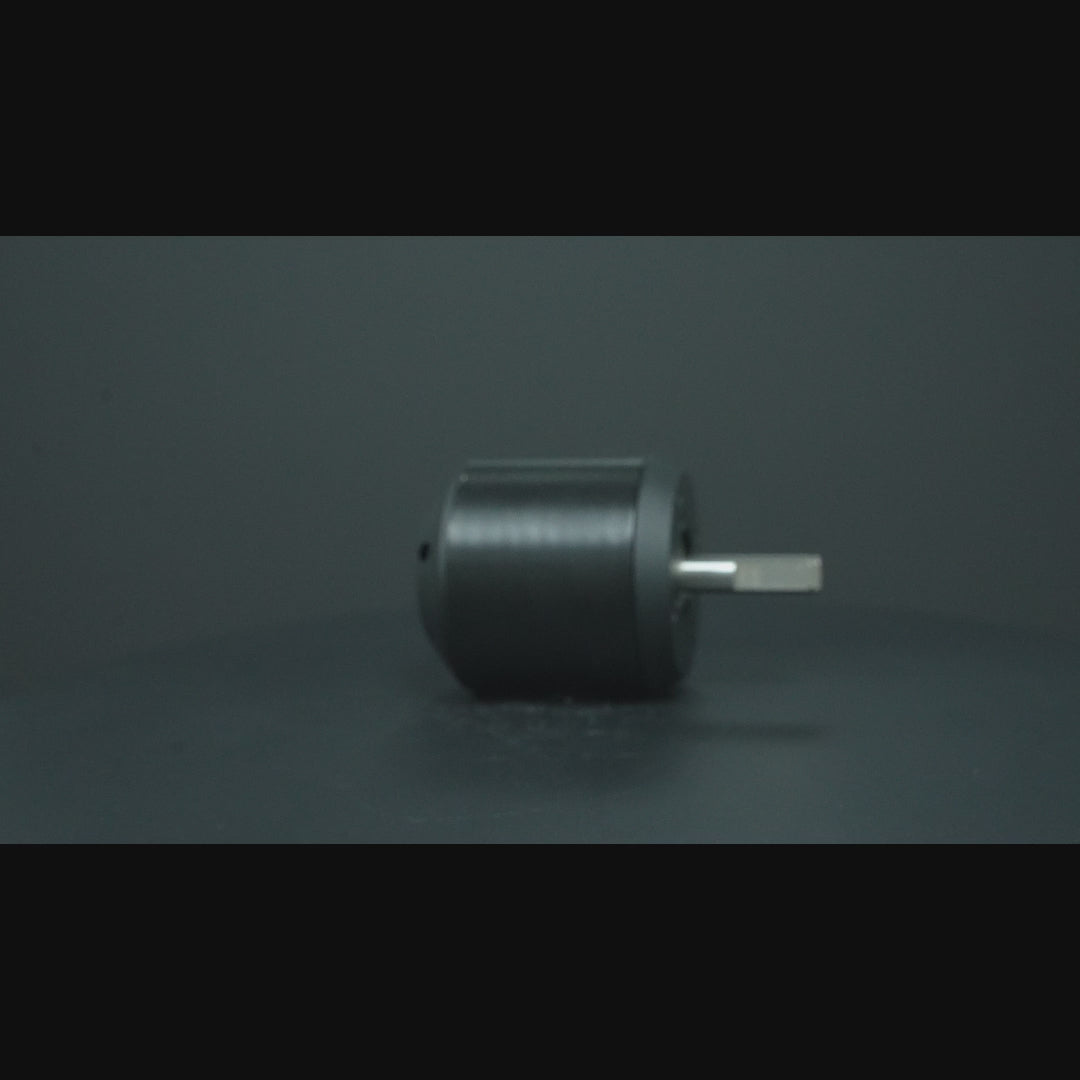

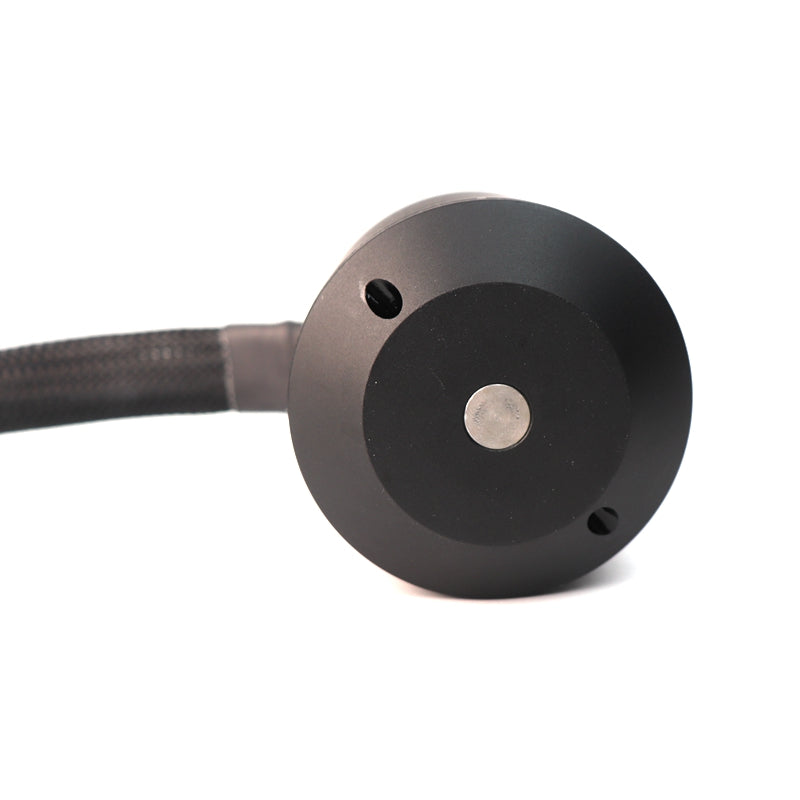

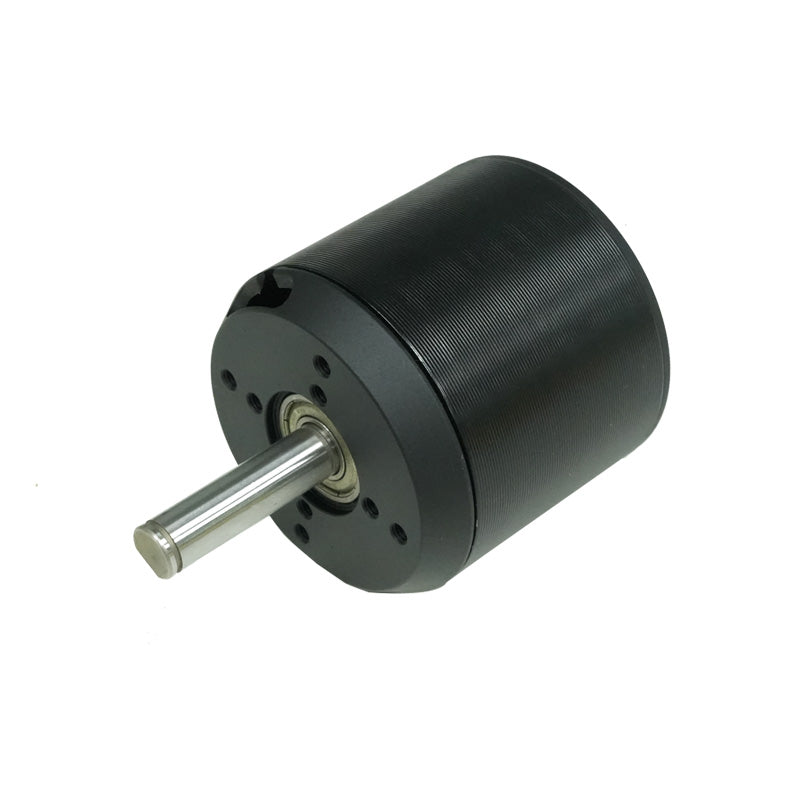

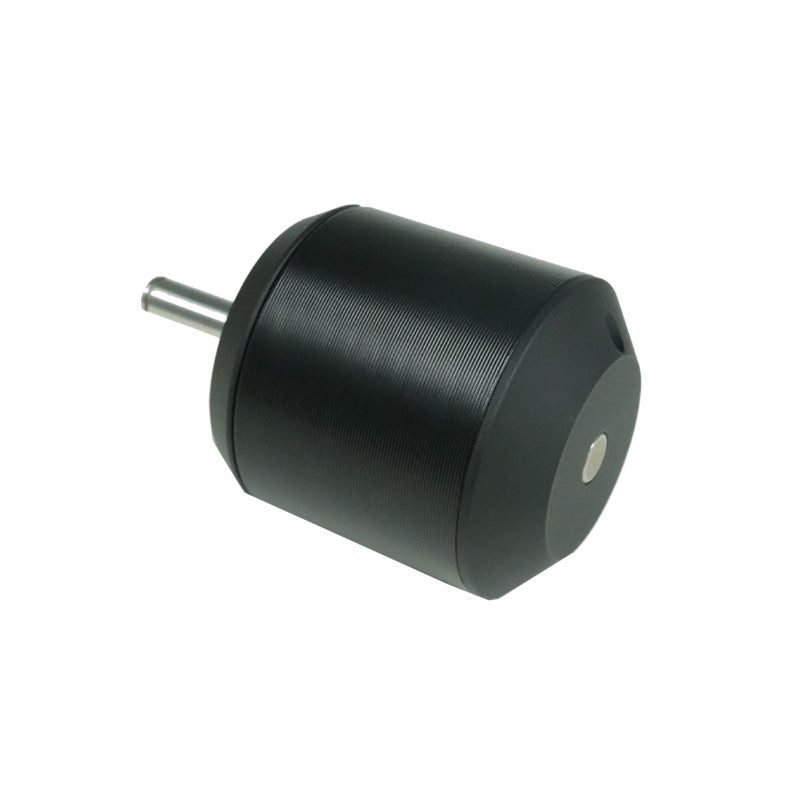

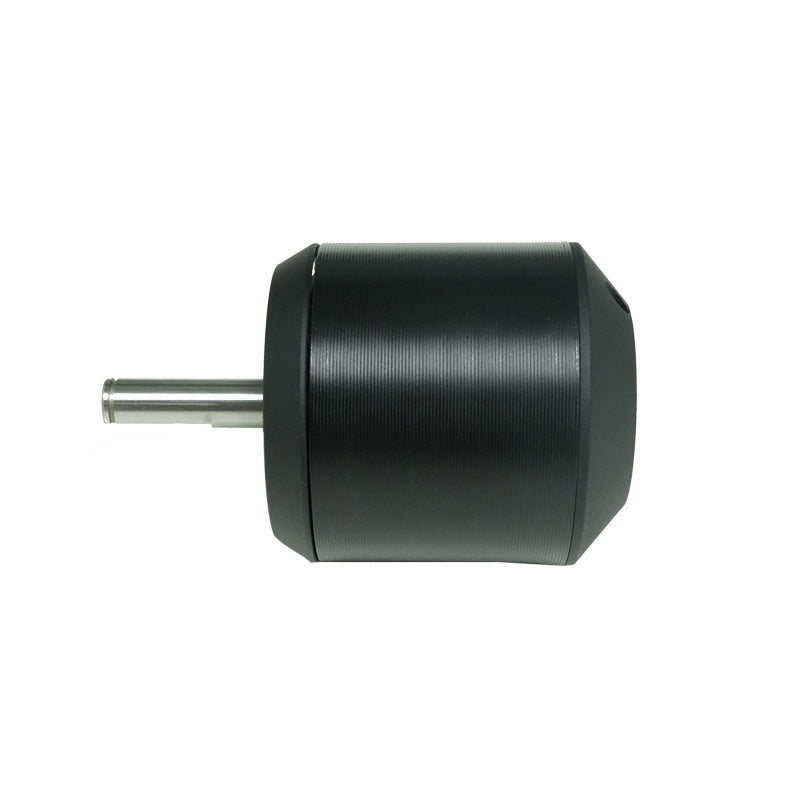

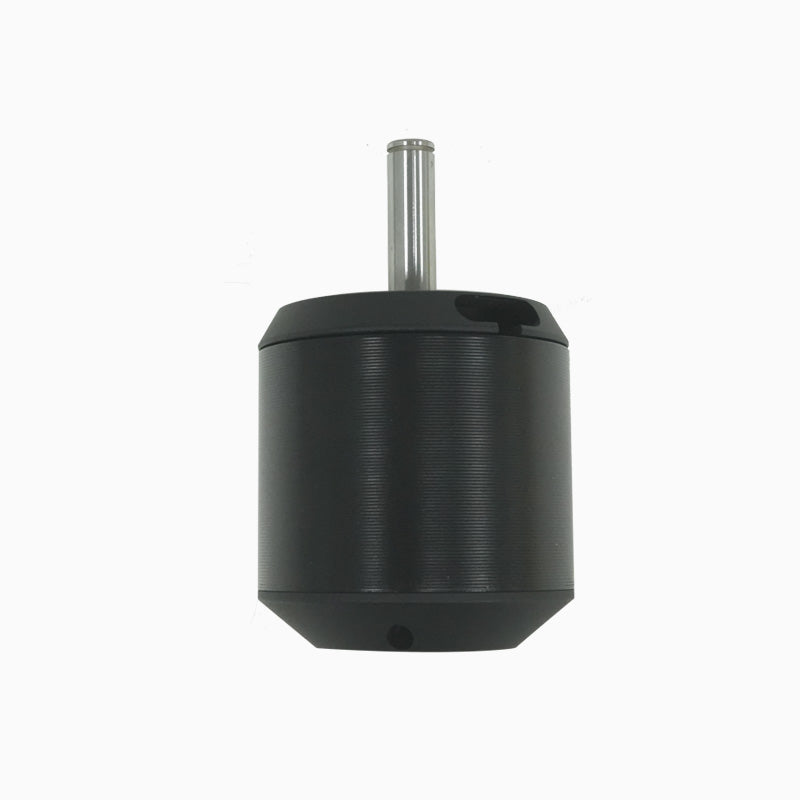

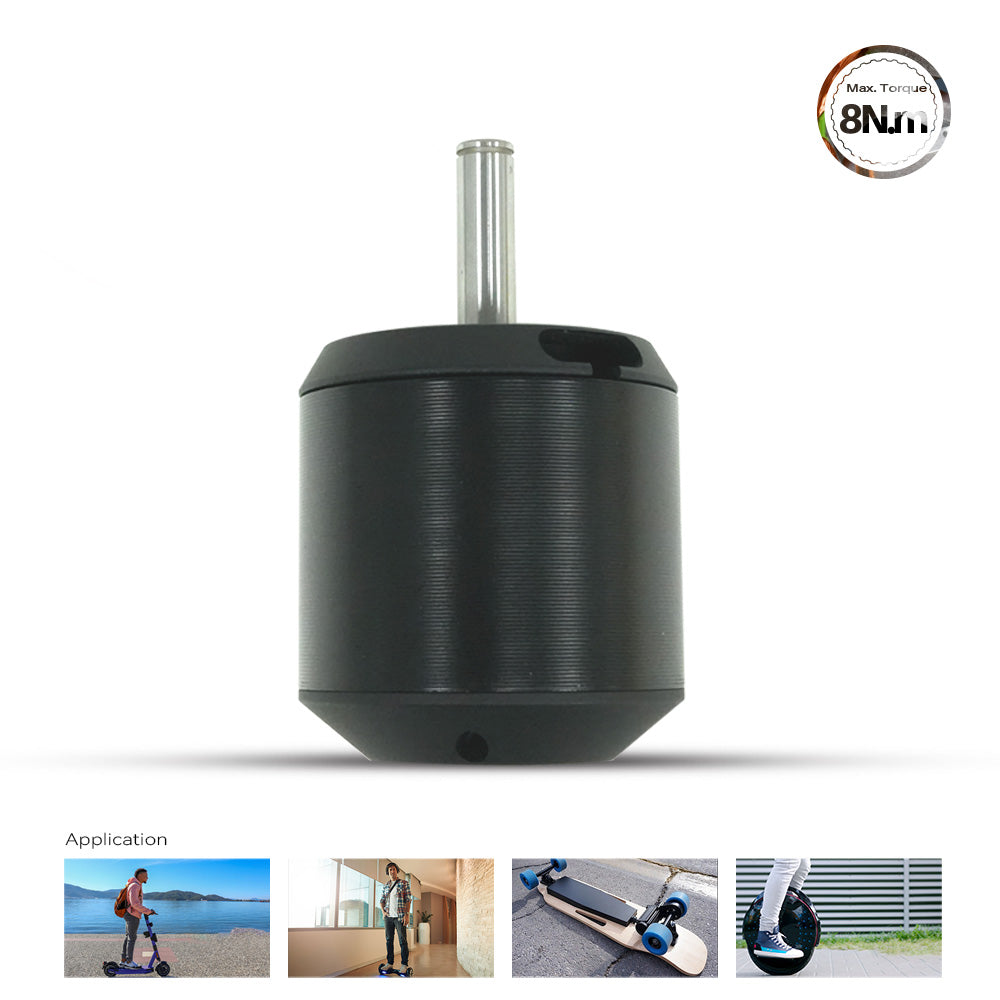

Freerchobby 2950W BLDC Motor 6368 190KV Brushless DC Motor for DIY Skateboard

Freerchobby 2950W BLDC Motor 6368 190KV Brushless DC Motor for DIY Skateboard

常规价格 $72.00 USD
常规价格 $70.00 USD 促销价 $72.00 USD
促销 售罄
结账时计算的运费

20 件存货

SKU:SKU-FRC63681999-1

查看完整详细信息
  • Specifications:

    Max Power:2950 Watts
    Max Current: 75 Amps
    Max Volts: 4-13S
    Max Torque:8Nm
    Motor Resistance: 0.1678Ohm
    Recommend ESC:VESC4&VESC6(3-13S )
    Weight: 750g

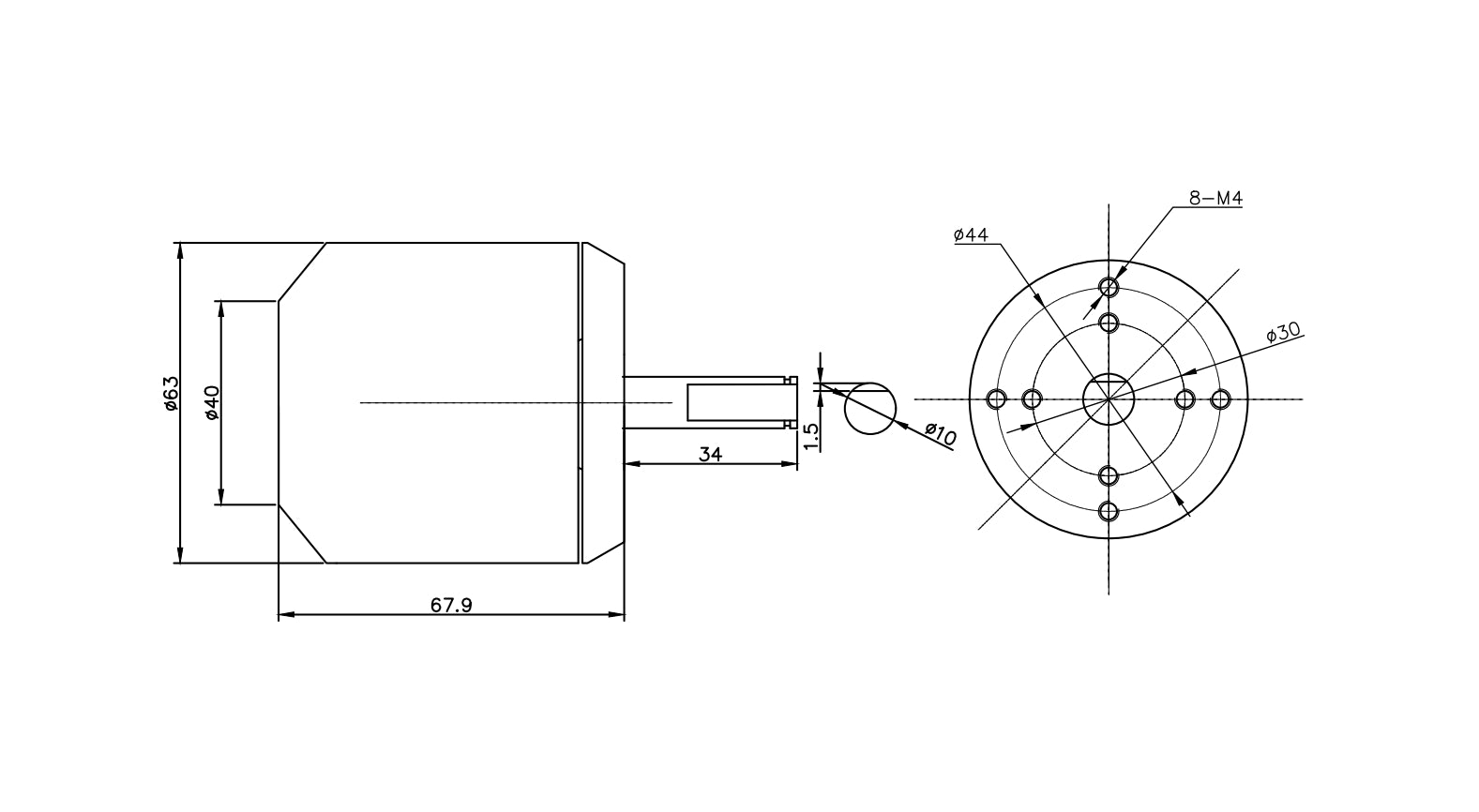

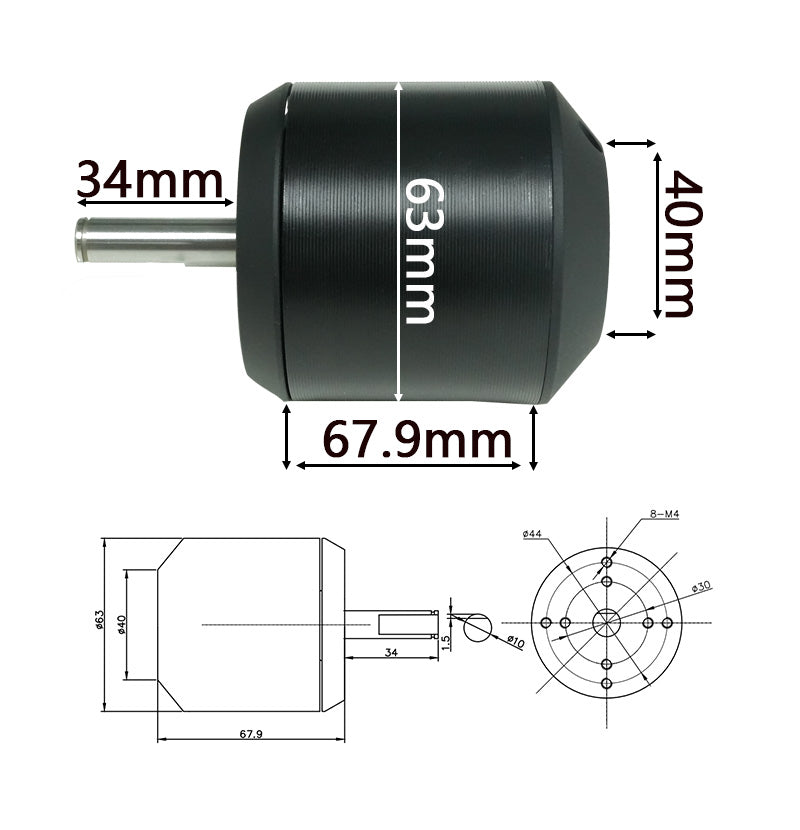

    The motor length:68mm
    The motor diameter: 63mm

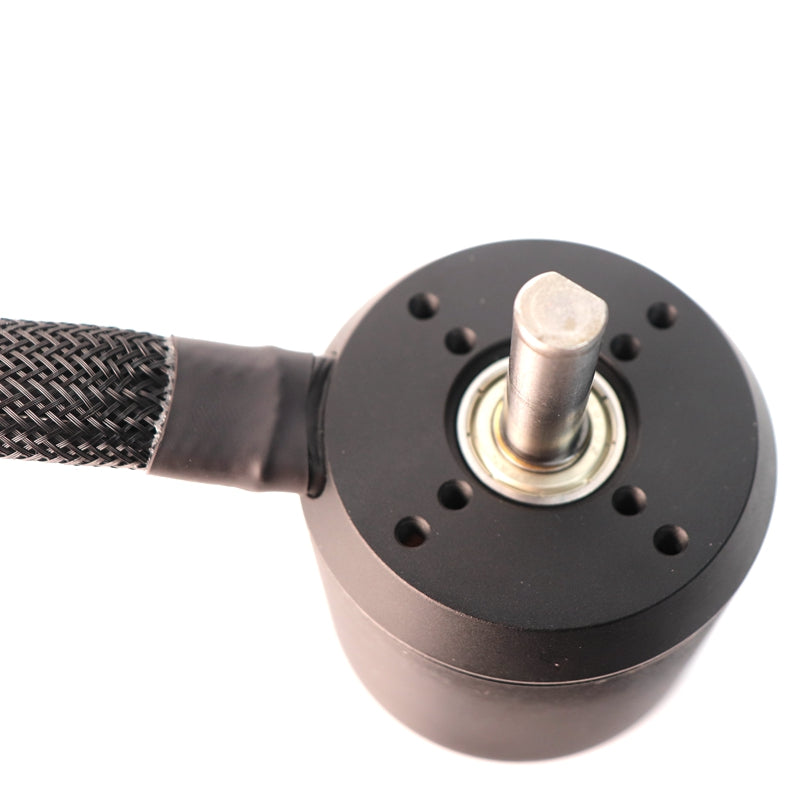

    Shaft Diameter 8mm/10mm, 30mm length(8mm ), 25mm length(10mm),3x3x14mm keyway slot.

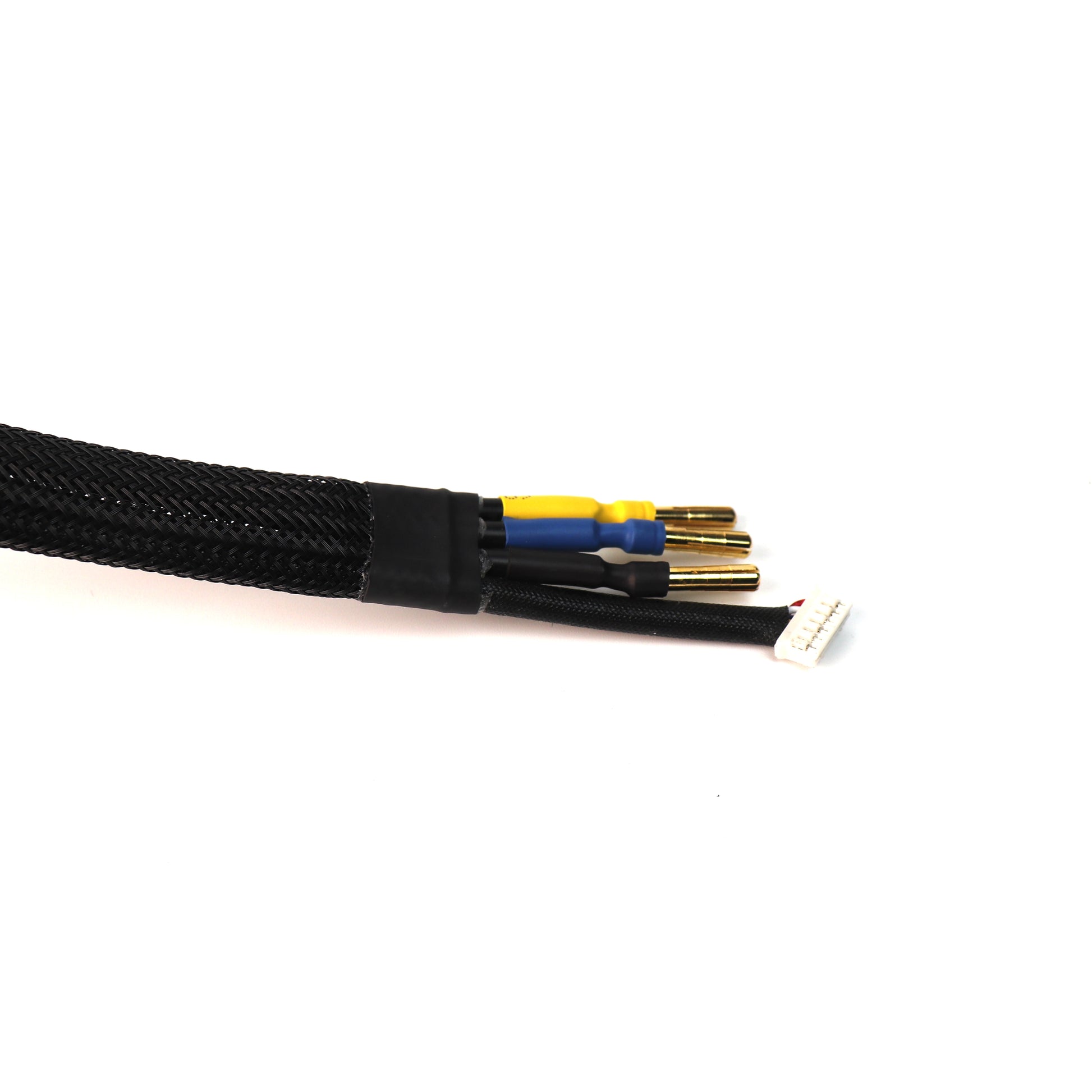

    Motor Wire: 12AWG wire with 4.0mm Gold Bullet Connector Male.customizable 5.5mm gold plated connector
    Wire configuration:Blue = A/ Black = B / Yellow = C

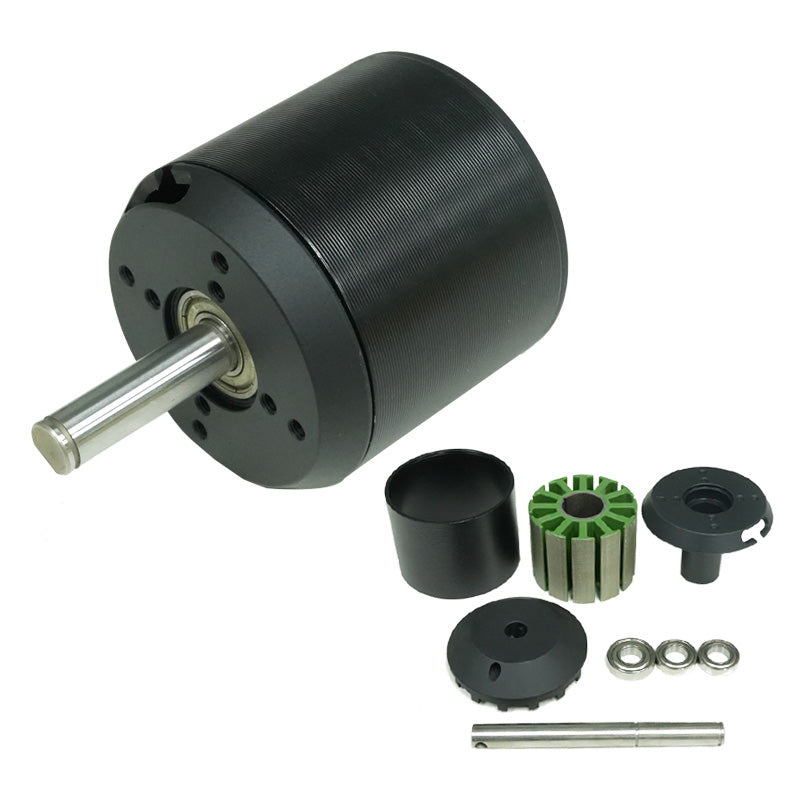

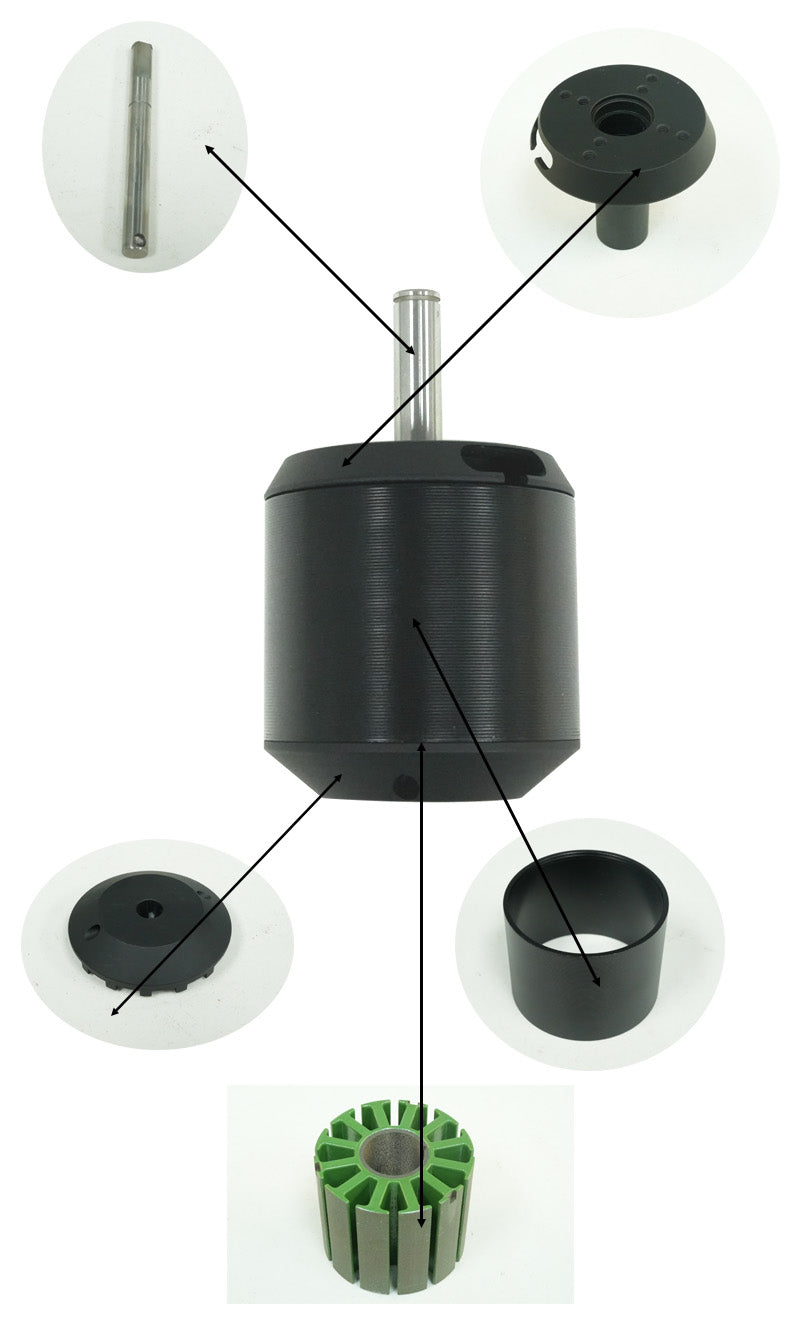

    Stator: 0.2mm thickness lamination japan steel
    Magnet: N42SH high temp curve magnet
    BLDC Motor
    The number of pole: 14
    Sensor Wire: Standard RC Sensor Wire JST-ZH 6pin 1.5mm/2mm pitch
    Internal PCB with 120 Degree Hall Effect Sensors.
    Motor can be used with or without a sensor. Sensorless operation is most common.
    VESC Sensor Wires required to use with VESC.

Factory environment

Free RC Hobby is a company founded in2012 China, specializing in thedesign and manufacturing of brushless DC
motors, ESCs, and propellers.

Years of foreign trade relations, trustworthy

MP6368 Motor use

Mainly used in electric scooter

The scope of application of the company motor

It is widely used in hydrofoil surfboard, electric skateboard bicycle powered paraglider, multi-rotor UAV, fixed-wing robot, electric tool, etc.

Transportation channels

Have USP, FedEX , DHL, TNT, UP SIn different ways.

Strong performance, quality assurance

High-quality production, years of experience in the industry
