Dongguan Freerchobby Co.,Ltd

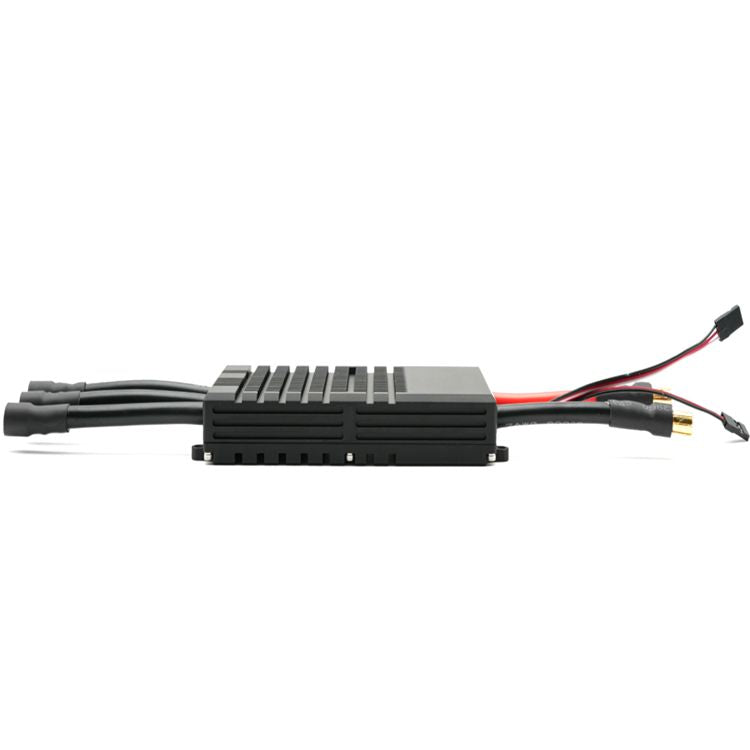

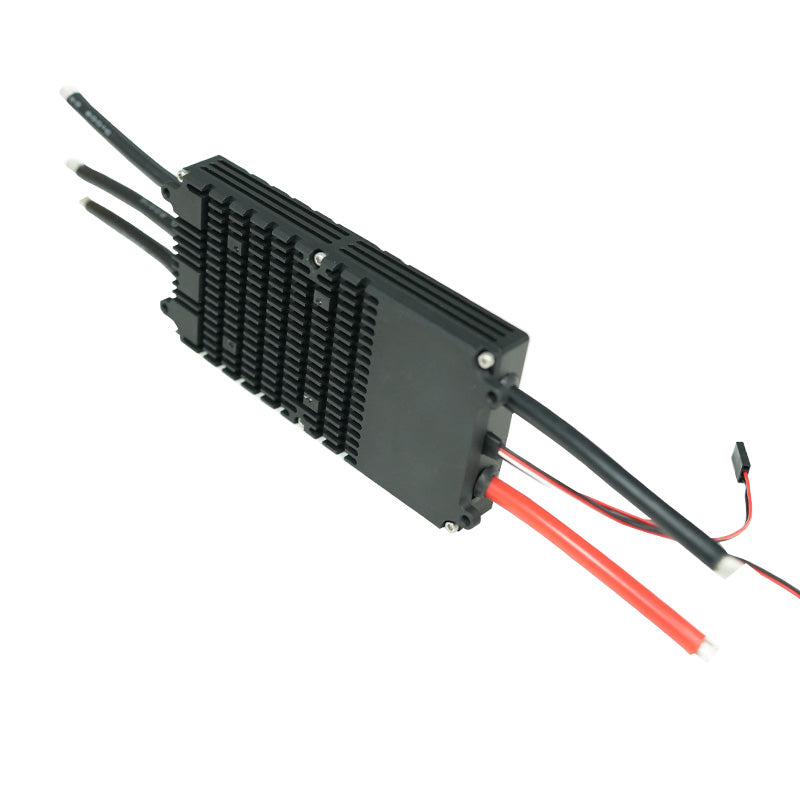

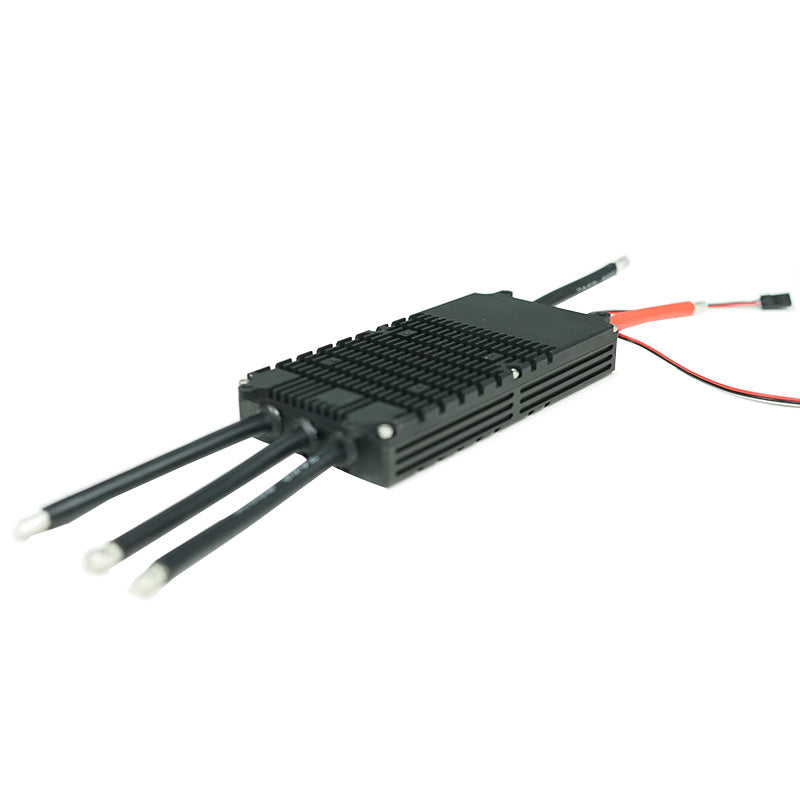

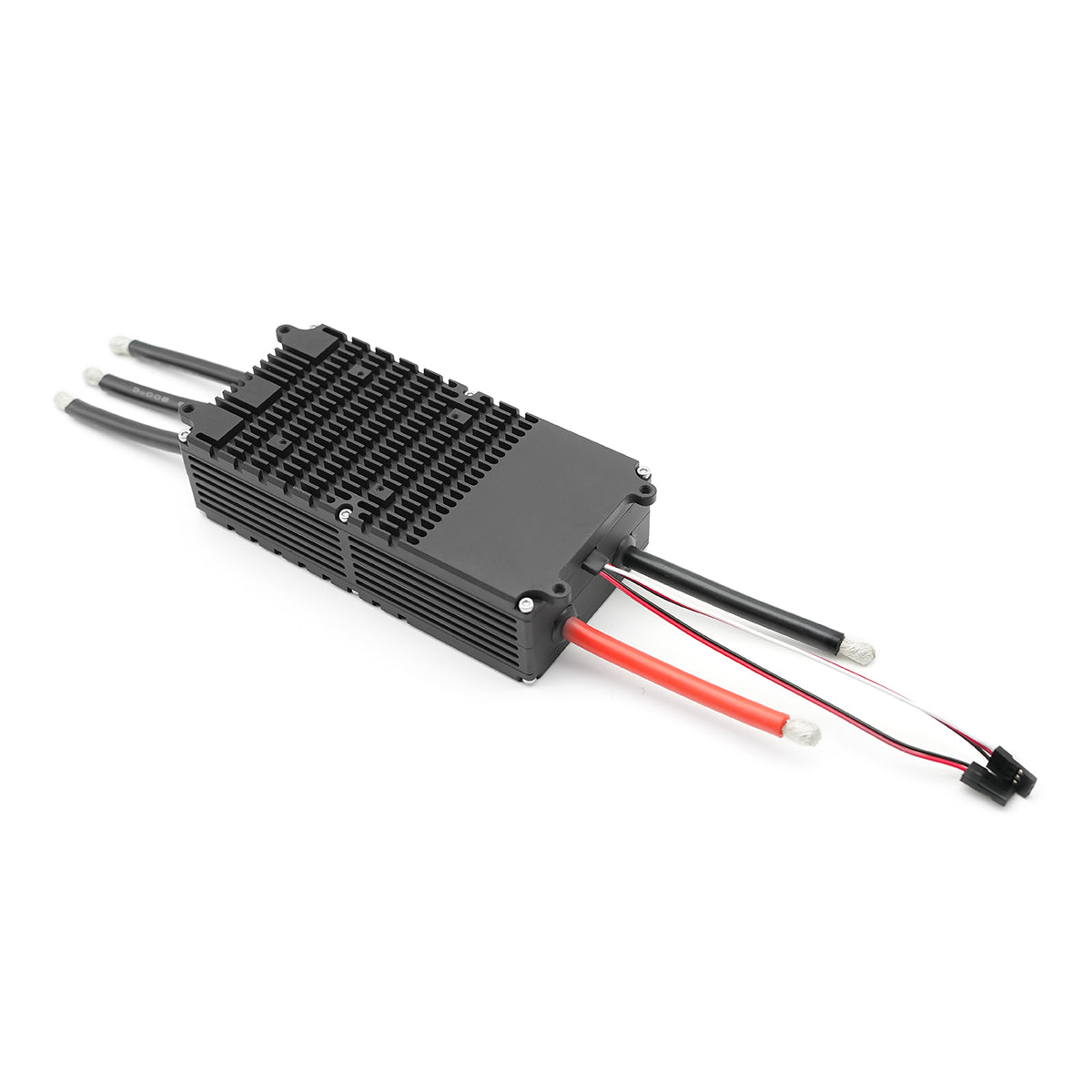

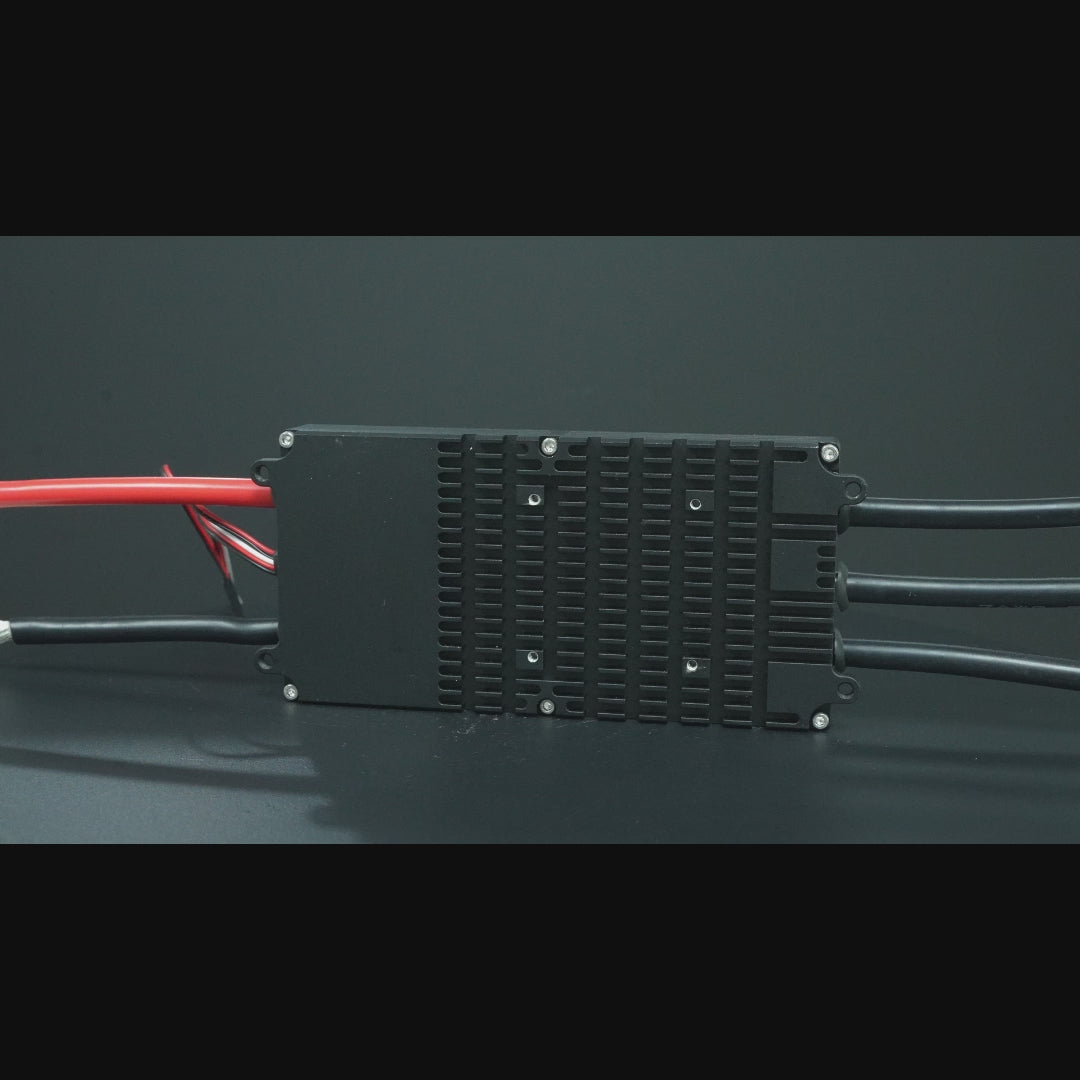

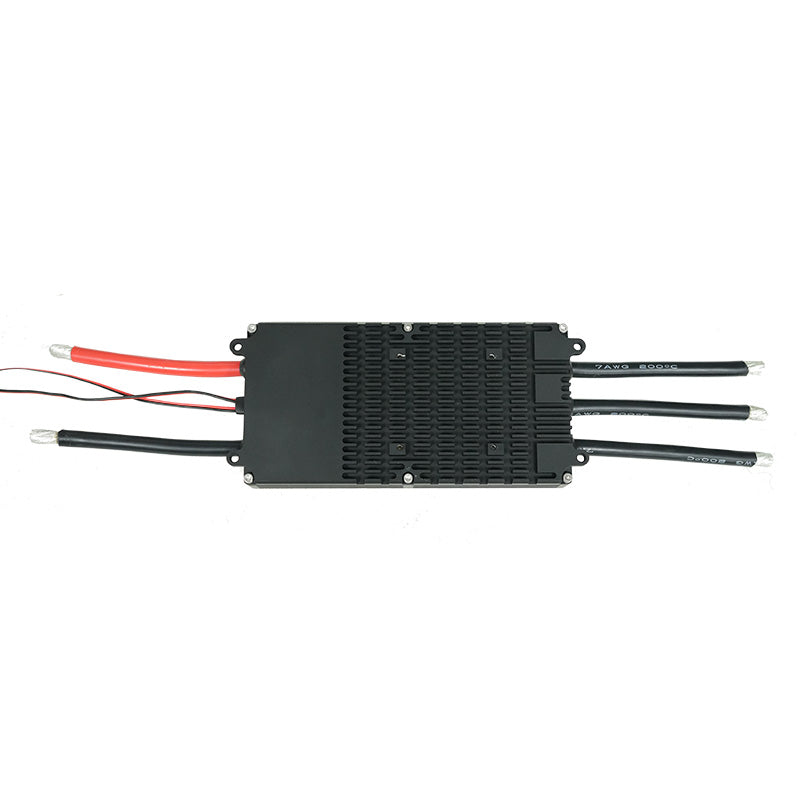

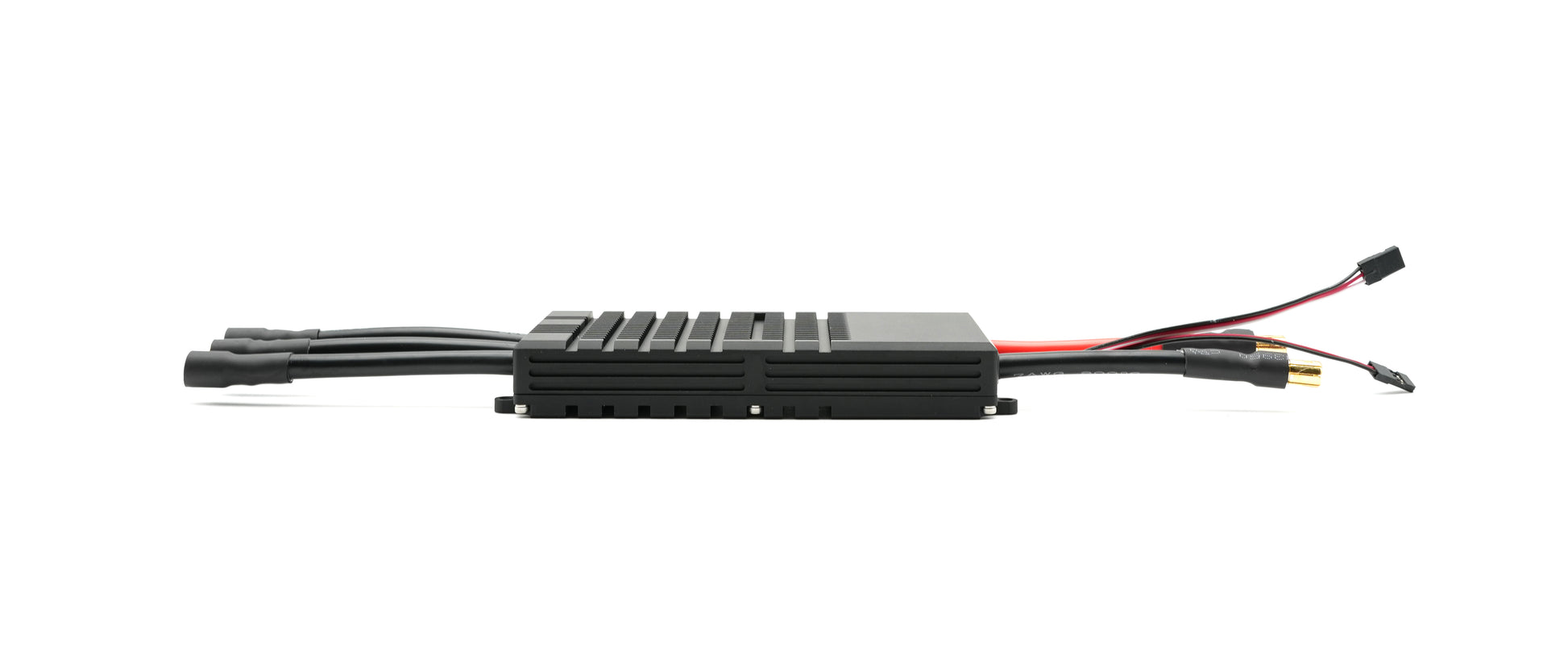

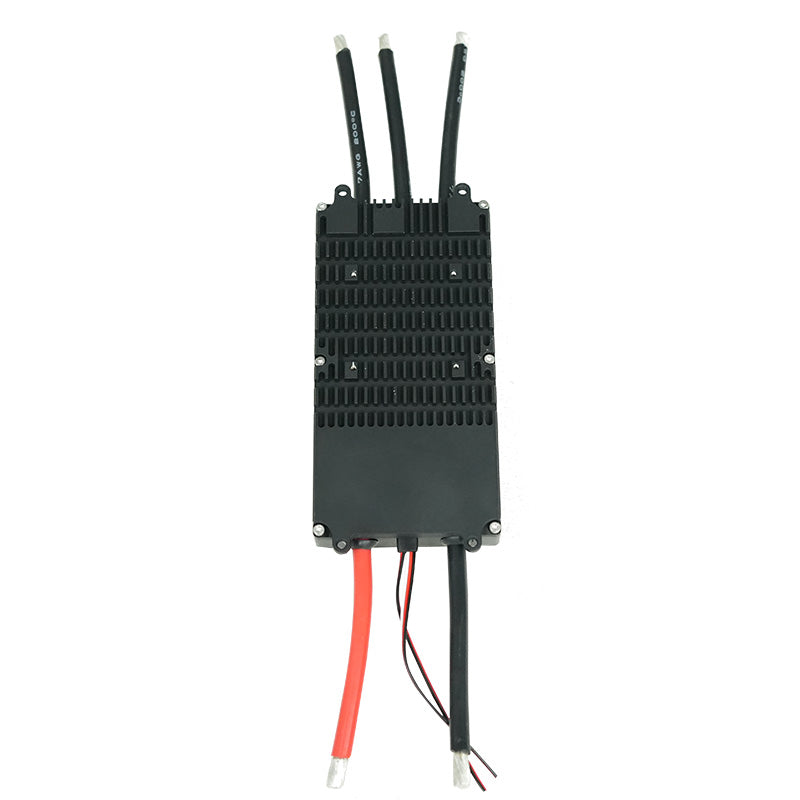

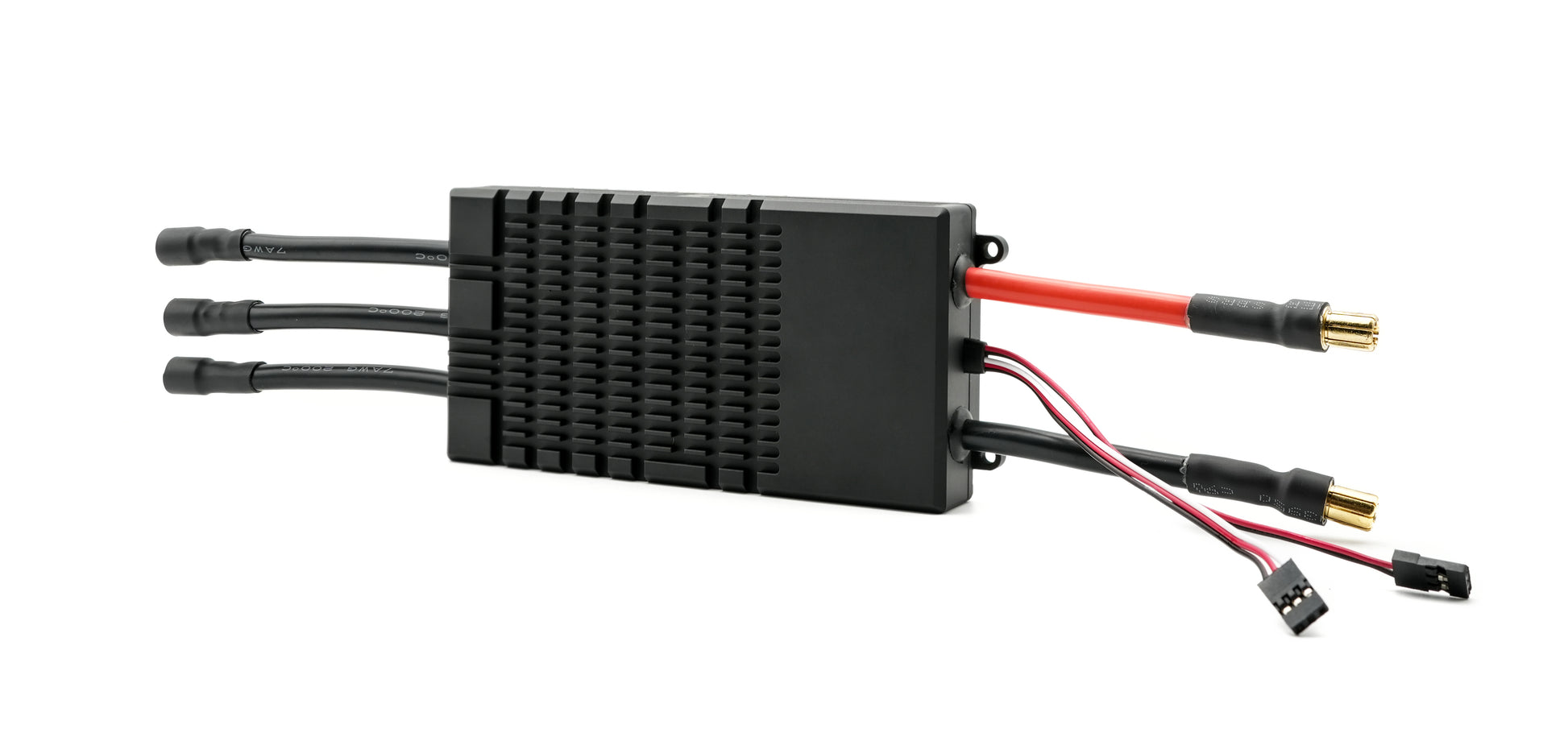

FRC 150A 12-24S Electronic Speed Controller Brushless Motor Drone ESC For Drone Multicopter EVTOL Airplane

FRC 150A 12-24S Electronic Speed Controller Brushless Motor Drone ESC For Drone Multicopter EVTOL Airplane

常规价格 $452.00 USD
常规价格 $479.00 USD 促销价 $452.00 USD
促销 售罄
结账时计算的运费

98 件存货

SKU:FRC-24S150A-99

查看完整详细信息
  • Essential details

    Weight:450g

    Li-po:12S-24S

    Advance Angle:15°

    IP Level:Rainproof

    Brand Name:Free RC

    Input Voltage:12S-24S

    Peak Current:220AInput

    Continuous Current:150A

    Warranty:3months-1year

    Model Number:24S 150A

    Place of Origin:Guangdong,China

    Effective Throttle:1000us-2000us

    HobbyDimension:140mm x 66mm x 21mm

  • Model:DC/BLDCStarting Protection:When motor fails to start after increasing the accelerator for 10 seconds, ESC will automatically shut down. After the accelerator is reset to zero and properly work again, ESC will resume working.Current and Voltage Protection:   ESC will automatically shut down as long as it running with current or voltage fall out of safe working range, and will resume working after throttle returns to 0.Temperature Protection:   ESC alarms when temperature reaches 115 degrees, turns off when temperature reaches140 degrees, and resumes working when throttle returns to 0.Throttle-loss  Protection:    ESC automatically shut down when no throttle signal is detected for 0.3 second, and resume working after throttle signal restores.

Factory environment

Free RC Hobby is a company founded in2012 China, specializing in thedesign and manufacturing of brushless DC
motors, ESCs, and propellers.

24S 150A ESC use

Mainly used in electric scooter Drones and VTOL drone

The scope of application of the company motor

It is widely used in hydrofoil surfboard, electric skateboard bicycle powered paraglider, multi-rotor UAV, fixed-wing robot, electric tool, etc.

Transportation channels

Have USP, FedEX , DHL, TNT, UP SIn different ways.

Company certificate display

We strive to satisfy your needs as they define them and achieve
their expectations while delivering value. This is accomplished by
implementing thehighest industry standards to coordinate and direct

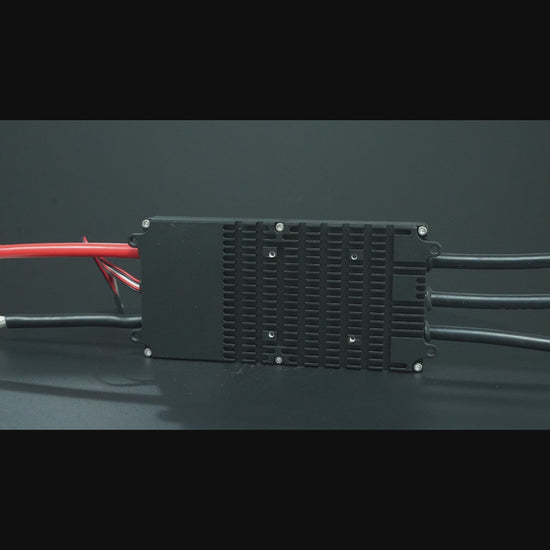

Video
