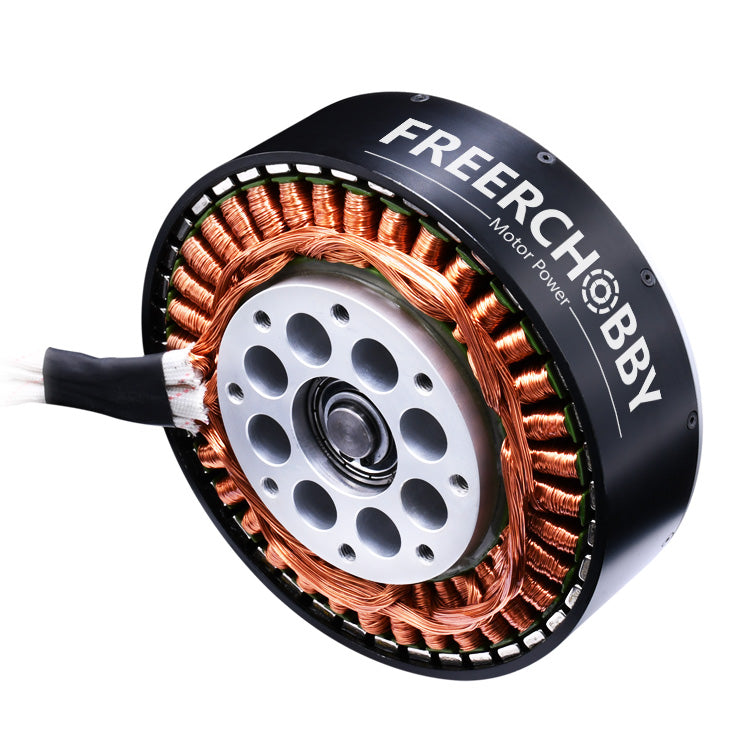

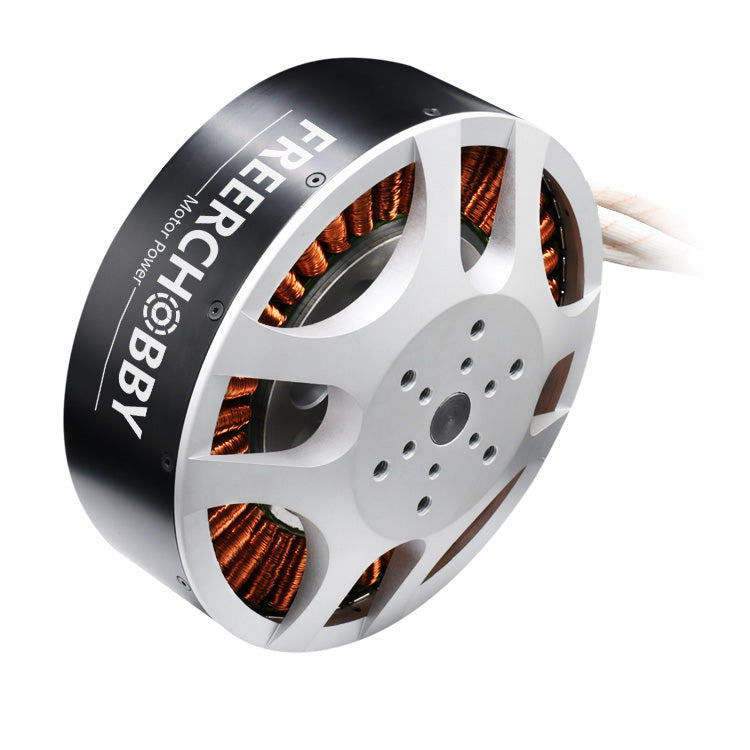

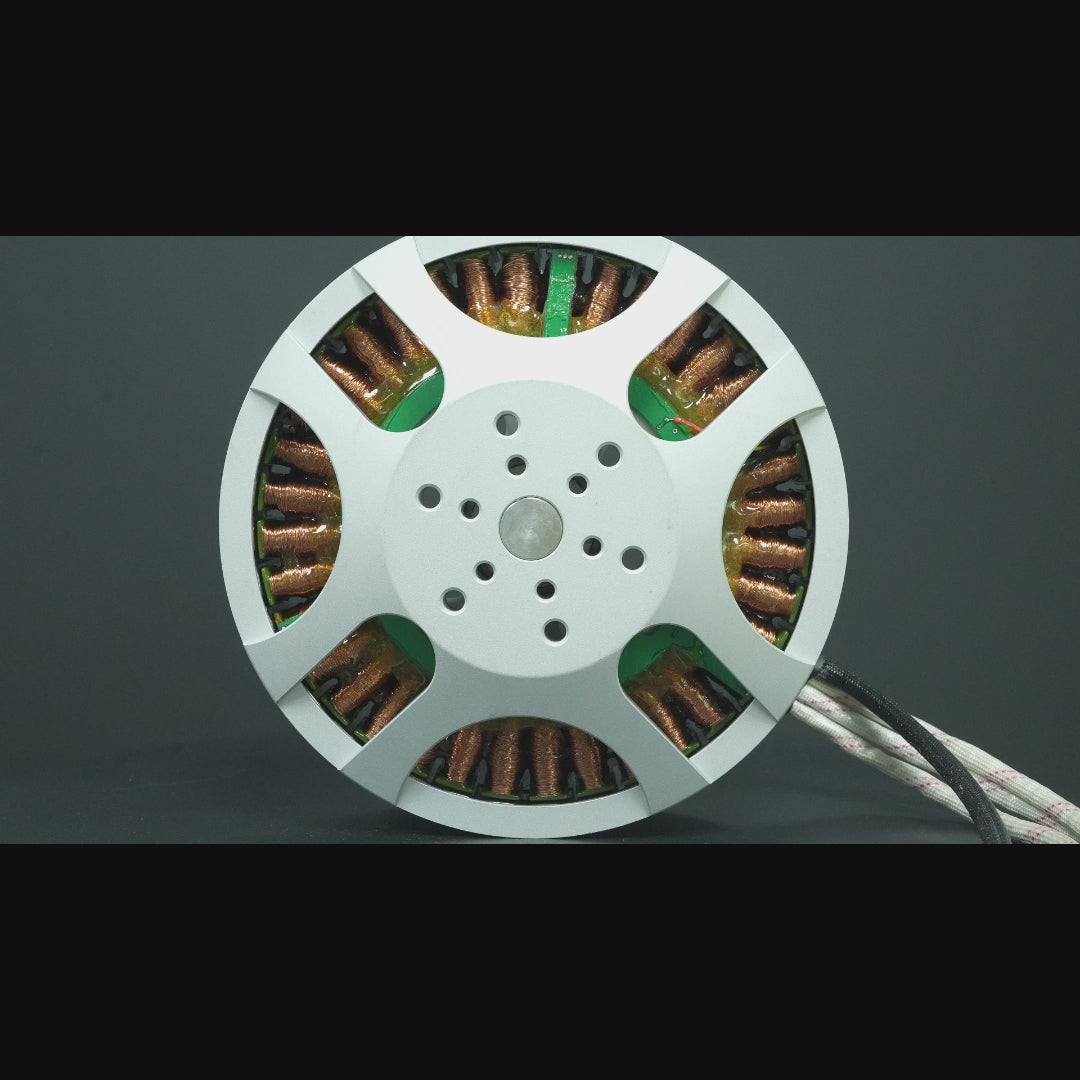

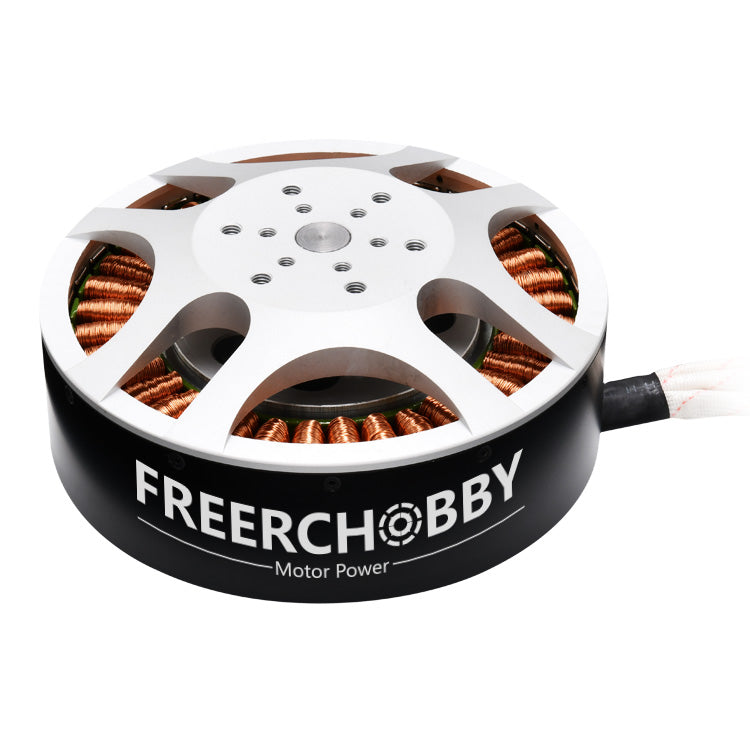

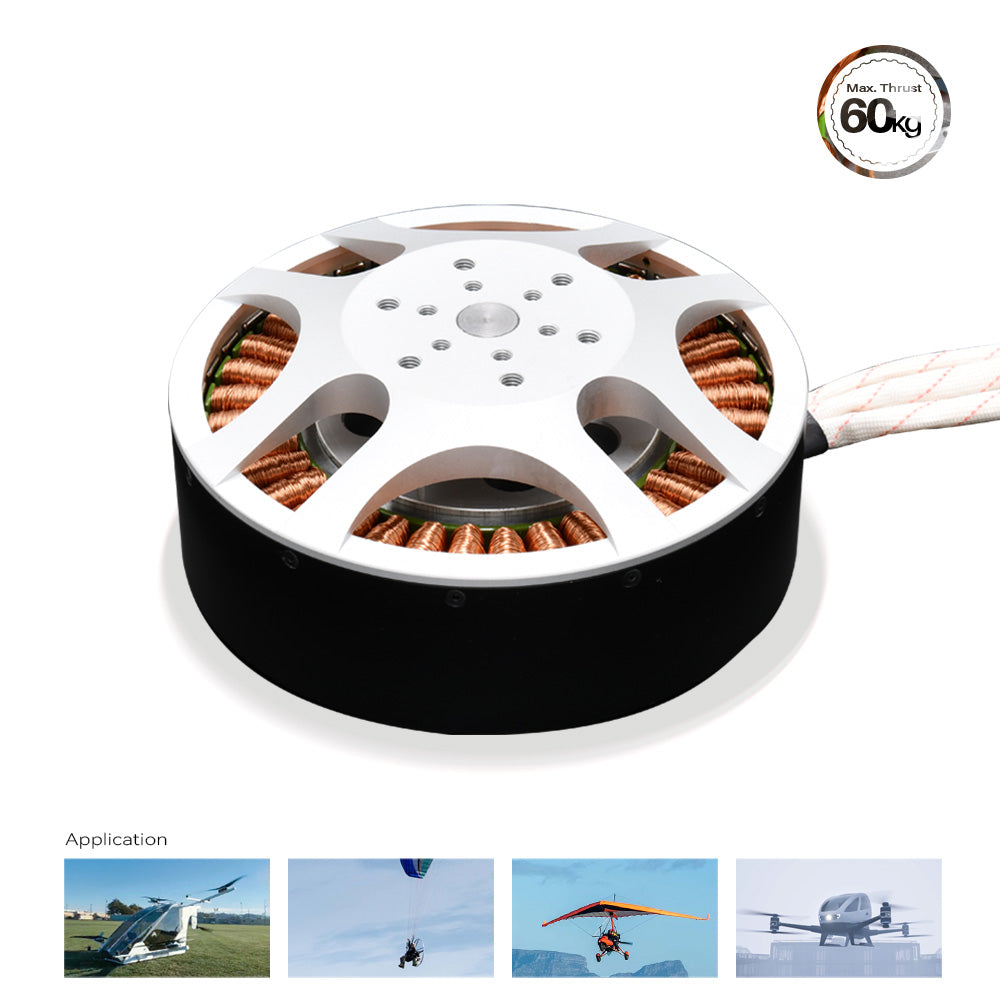

MP 15470 30kw 60kg Thrust Sensorless Motor for Drone /Paramotor

MP 15470 30kw 60kg Thrust Sensorless Motor for Drone /Paramotor

常规价格 $650.00 USD
常规价格 $650.00 USD 促销价 $650.00 USD
促销 售罄
结账时计算的运费

94 件存货

SKU:

查看完整详细信息
  • Specifications:

    • MOTOR: MP 15470
    • KV: 55
    • MAX POWER: 30KW
    • RATED POWER: 12kw
    • MAX CURRENT:300A
    • ESC:120V 500A ESC /22S 500A ESC
    • MAX VOLT: 100V
    • RPM: 5500
    • SIZE: 154 x 69.5( without shaft )
    • TORQUE: 50Nm
    • THRUST:60KG
    • POLES: 20 (40 MAGANET)
    • SLOT:36
    • PWM:8-16KHZ
    • TIMING DEGREE: 15
    • NET WEIGHT (kg):3.5
    • SHAFT: 15mm

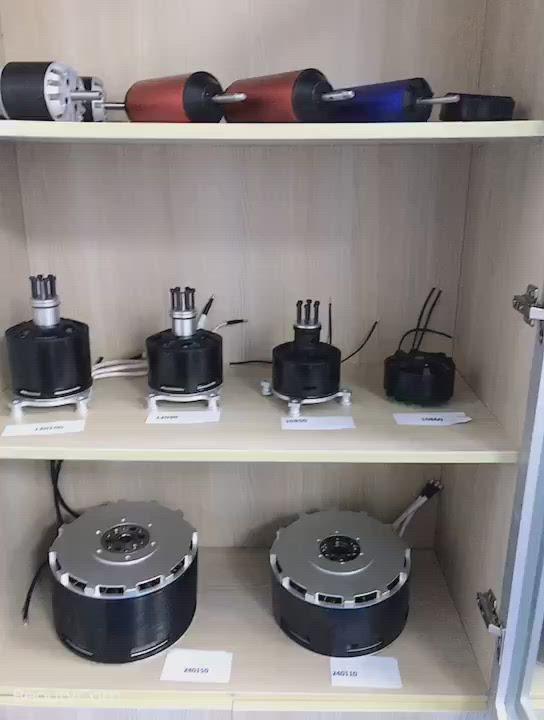

Factory environment

Free RC Hobby is a company founded in2012 China, specializing in thedesign and manufacturing of brushless DC
motors, ESCs, and propellers.

MP15470 Motor use

Mainly used in electric scooter

The scope of application of the company motor

It is widely used in hydrofoil surfboard, electric skateboard bicycle powered paraglider, multi-rotor UAV, fixed-wing robot, electric tool, etc.
