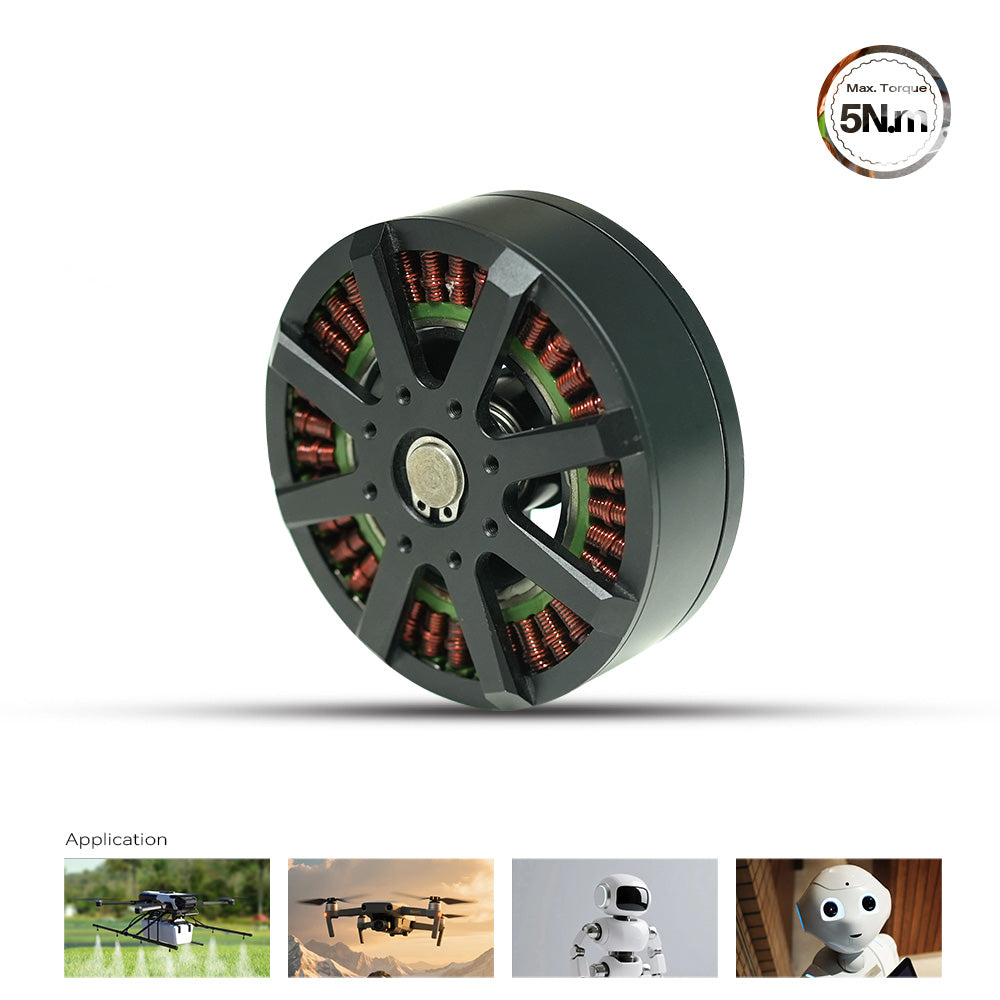

MP 8318 2870W Brushless Motor for Agricultural UAV Drone
MP 8318 2870W Brushless Motor for Agricultural UAV Drone
Share
82 件存货
SKU:
查看完整详细信息Motor Date
-
Specifications:
8318 100KV Brusheless Motor
Motor KV: 100KV RPM/V
Motor Resistance (RM): 0.0692 Ω
Idle Current (Io/10V) : 1.1A/10V
Max Continuous Current: 62A
Max Continuous Power: 3000W
Lipo Cell: 3-12S
Motor Diameter: 92mm/3.62in
Motor Body Length: 37.8mm/1.49in
No. of Stator Arms: 36
Pole Count : 42
Overall Shaft Length: 38.3mm/1.5in
Bolt holes spacing: 32mm/40mm/1.26in/1.57in
Bolt thread: M4×16
Maximum thrust: 12500g
Motor Date
Product Image
Factory environment
Free RC Hobby is a company founded in2012 China, specializing in thedesign and manufacturing of brushless DC
motors, ESCs, and propellers.
Years of foreign trade relations, trustworthy
MP8318 Motor use
For fixed-wing robots and uavs
The scope of application of the company motor
It is widely used in hydrofoil surfboard, electric skateboard bicycle powered paraglider, multi-rotor UAV, fixed-wing robot, electric tool, etc.
Transportation channels
Have USP, FedEX , DHL, TNT, UP SIn different ways.
Strong performance, quality assurance
High-quality production, years of experience in the industry
Company certificate display
We strive to satisfy your needs as they define them and achieve
their expectations while delivering value. This is accomplished by
implementing thehighest industry standards to coordinate and direct
