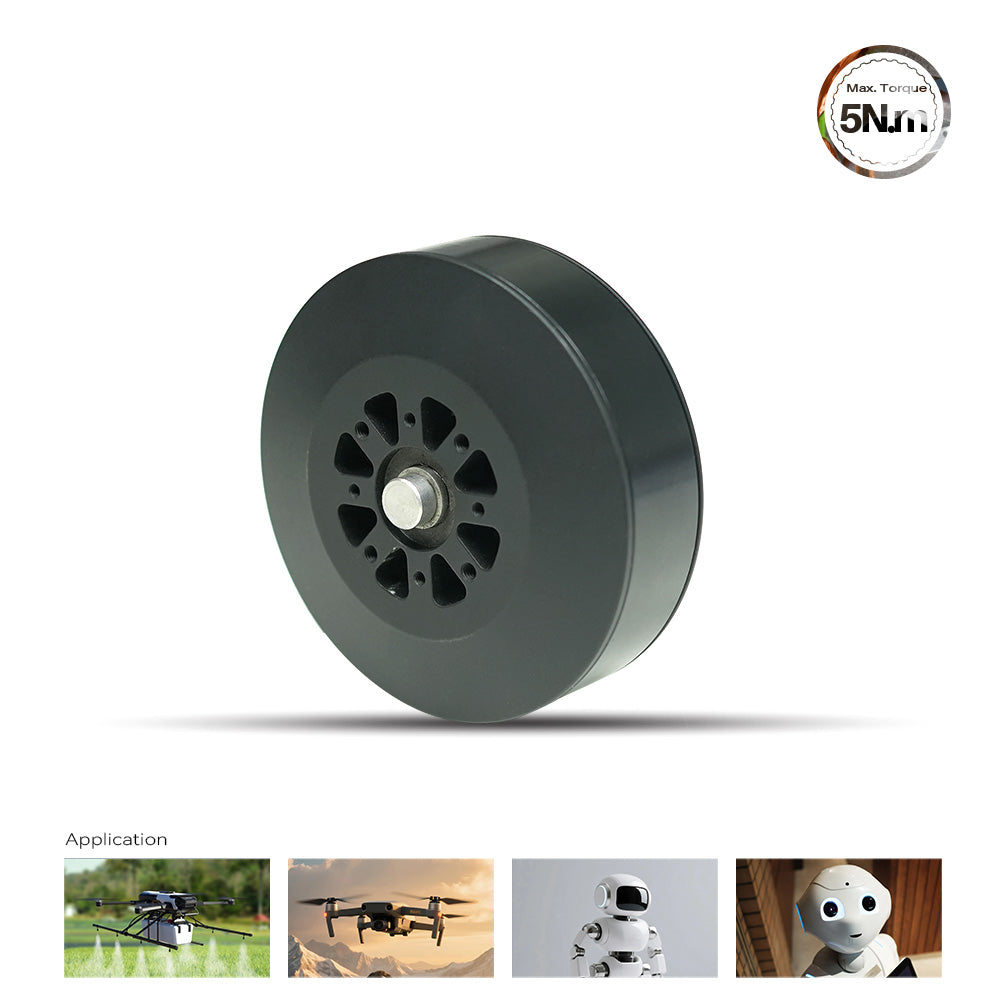

MP8318 2870W IP waterproof version for agructure UAV drone, robotic, EV vehicle
MP8318 2870W IP waterproof version for agructure UAV drone, robotic, EV vehicle
Share
92 件存货
SKU:
查看完整详细信息Motor Date
-

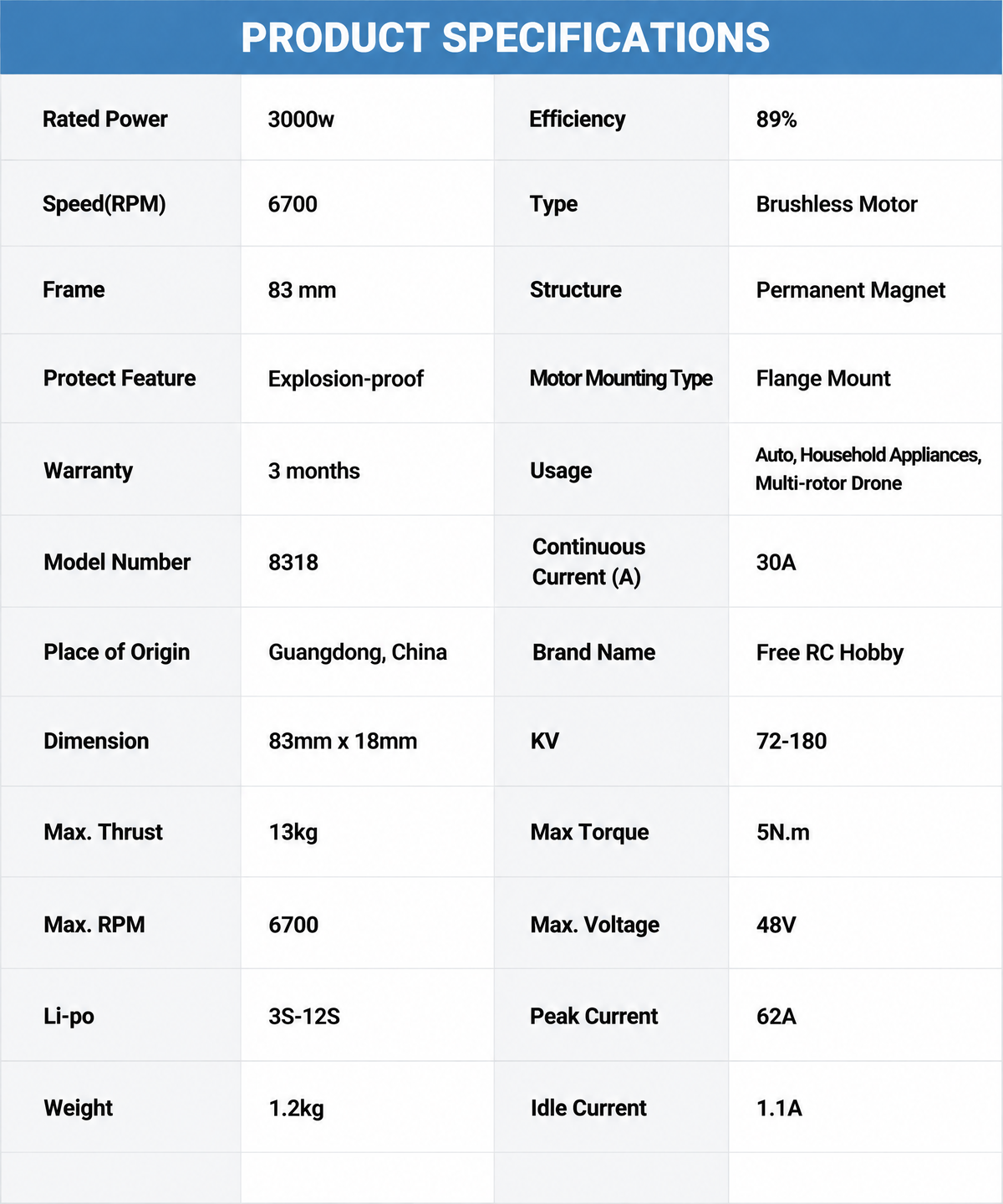

Specifications:
8318 100KV Brusheless Motor
Motor KV: 100KV RPM/V
Motor Resistance (RM): 0.0692 Ω
Idle Current (Io/10V) : 1.1A/10V
Max Continuous Current: 62A
Max Continuous Power: 3000W
Lipo Cell: 3-12S

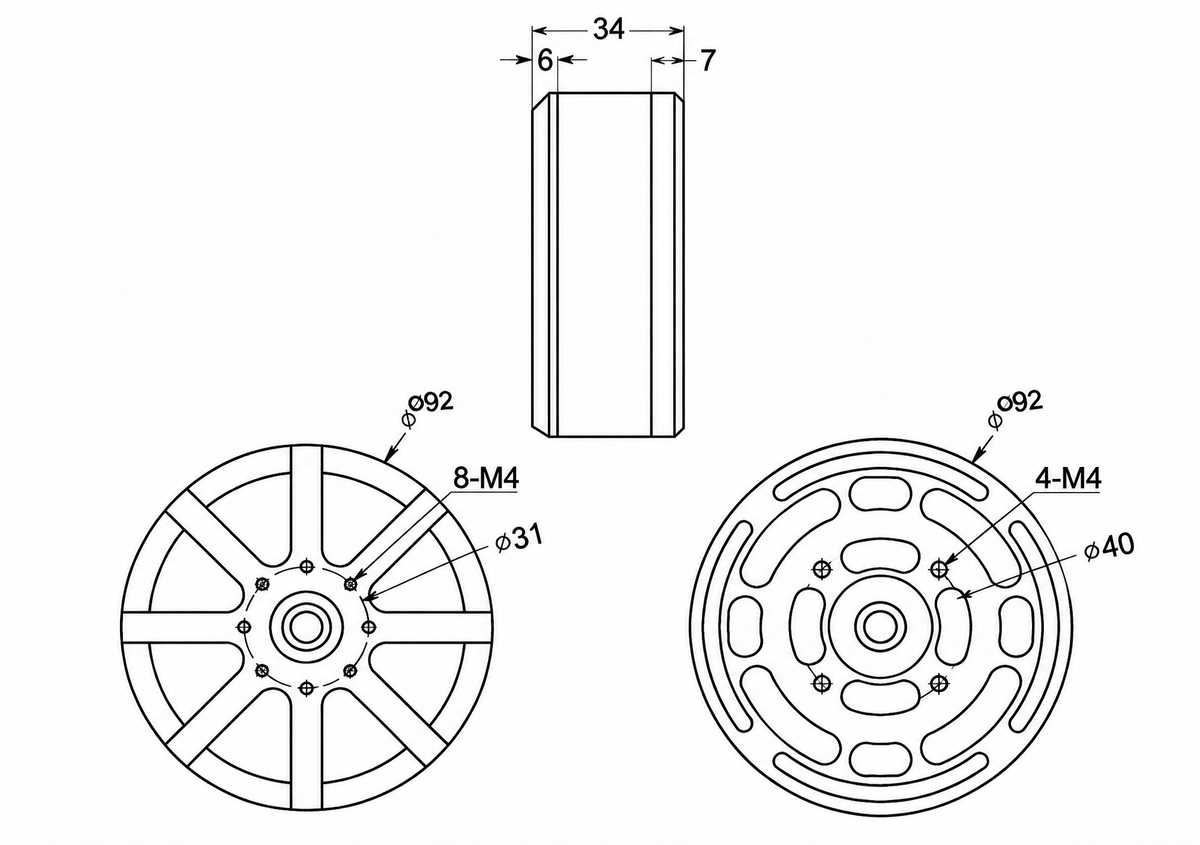

Motor Diameter: 92mm/3.62in
Motor Body Length: 37.8mm/1.49in
No. of Stator Arms: 36
Pole Count : 42
Overall Shaft Length: 38.3mm/1.5in
Bolt holes spacing: 32mm/40mm/1.26in/1.57in
Bolt thread: M4×16
Maximum thrust: 12500g

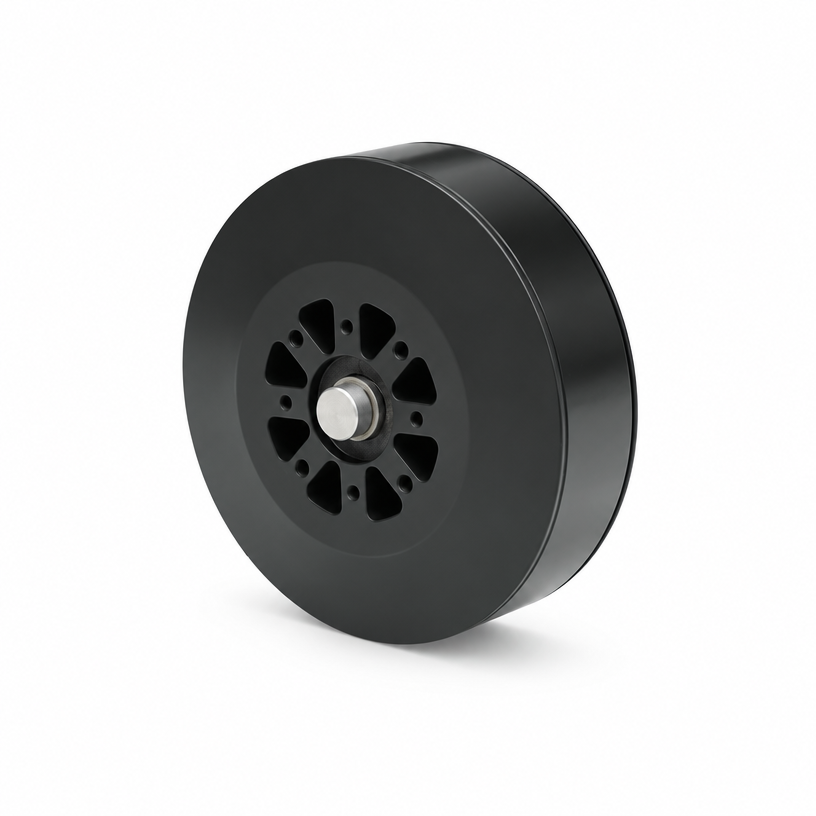

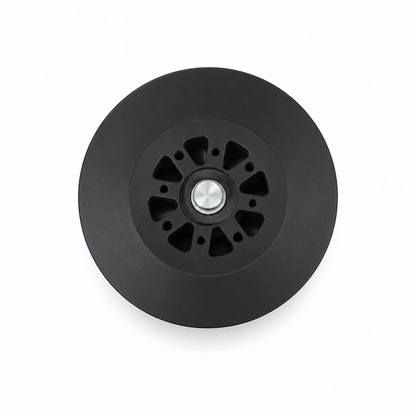

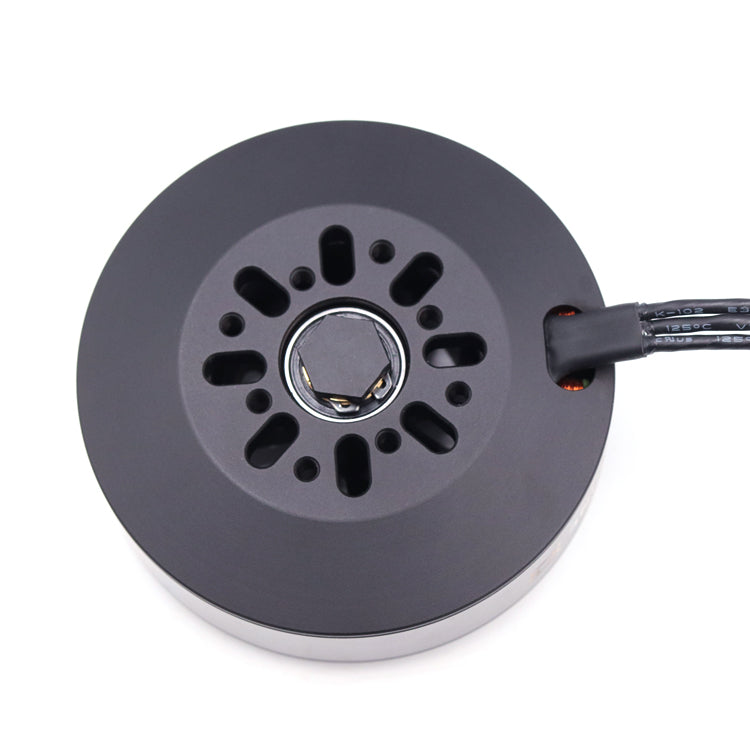

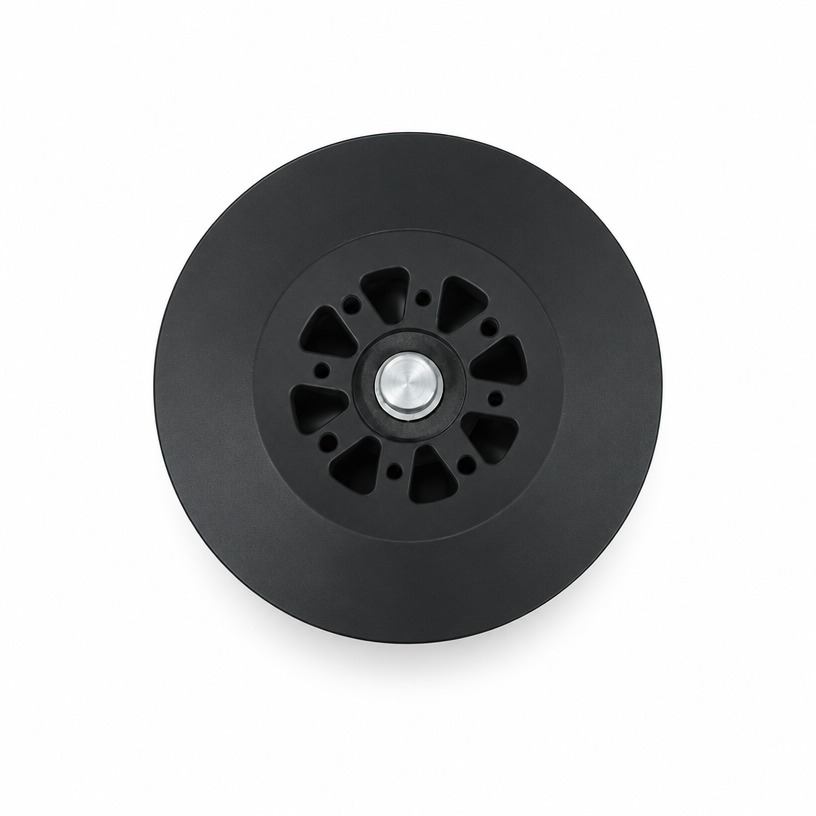

Product Image
Factory environment
Free RC Hobby is a company founded in2012 China, specializing in thedesign and manufacturing of brushless DC
motors, ESCs, and propellers.
Years of foreign trade relations, trustworthy
MP8318 Motor use
For fixed-wing robots and uavs
The scope of application of the company motor
It is widely used in hydrofoil surfboard, electric skateboard bicycle powered paraglider, multi-rotor UAV, fixed-wing robot, electric tool, etc.
Transportation channels
Have USP, FedEX , DHL, TNT, UP SIn different ways.
Strong performance, quality assurance
High-quality production, years of experience in the industry
