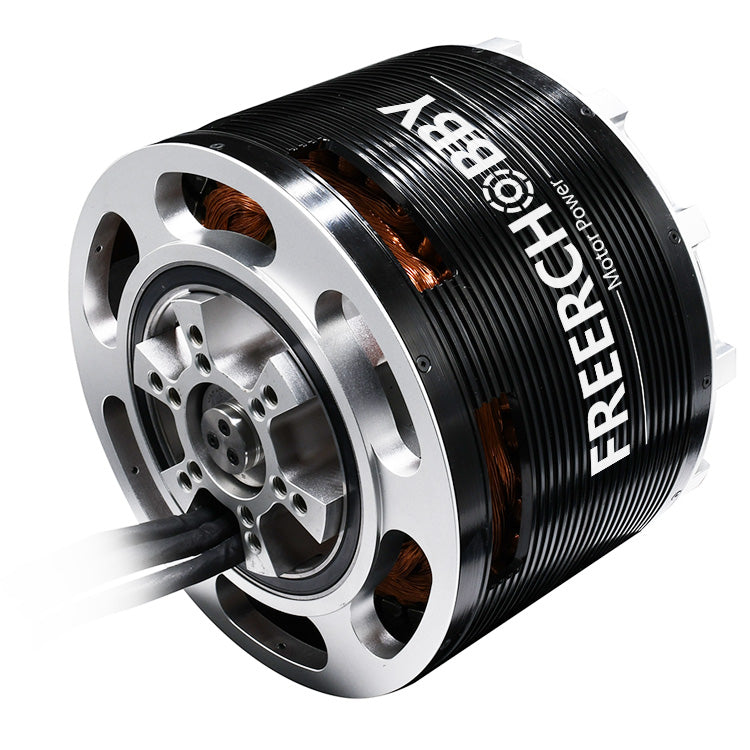

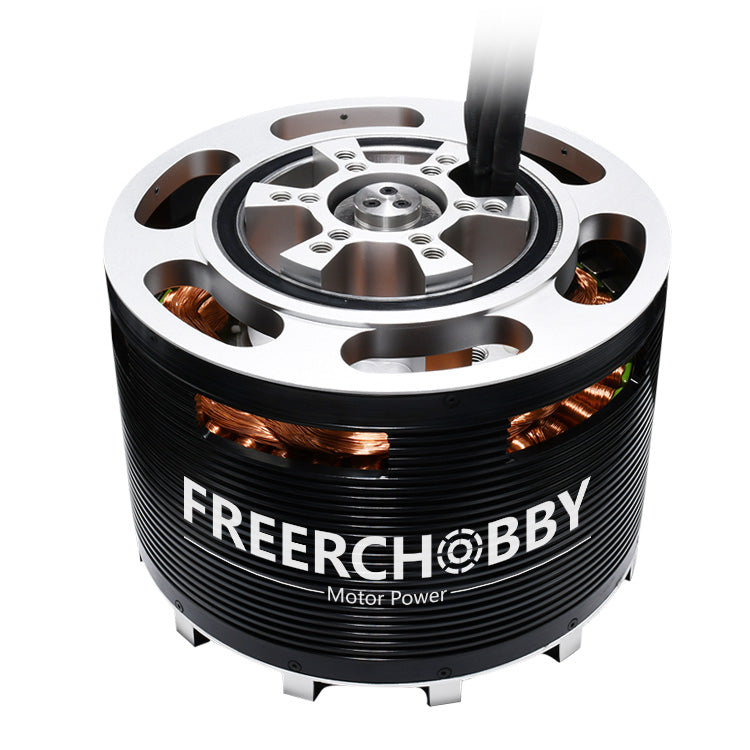

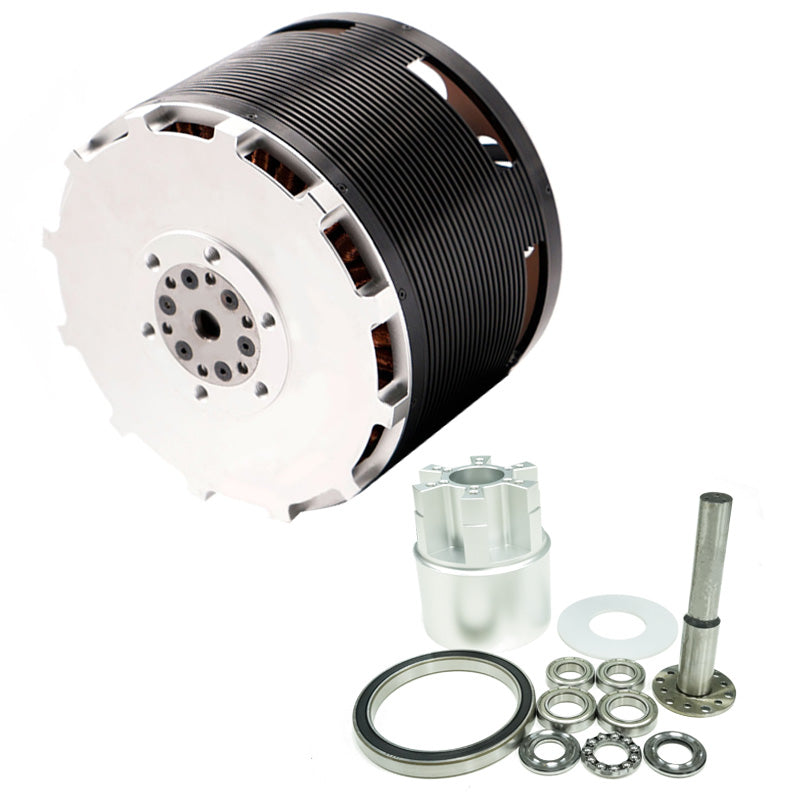

MP202150 70KW 170kg Thrust 120Nm High Torque for Mega Drone Aircraft
MP202150 70KW 170kg Thrust 120Nm High Torque for Mega Drone Aircraft
常规价格
$2,000.00 USD
常规价格
$2,300.00 USD
促销价
$2,000.00 USD
单价
/
单价
结账时计算的运费。
无法加载取货服务可用情况
Share
99 件存货
SKU:
查看完整详细信息![MP202150 70KW 170kg Thrust 120Nm High Torque for Mega Drone Aircraft](http://www.freerchobby.cc/cdn/shop/products/01_60871251-194d-4291-9670-c431c03e78a7.jpg?v=1591775554&width=1445)
![MP202150 70KW 170kg Thrust 120Nm High Torque for Mega Drone Aircraft](http://www.freerchobby.cc/cdn/shop/products/02_afa7458c-f3f4-40dd-aec1-9c0a001b8d23.jpg?v=1591775554&width=1445)
Motor data
-
Specifications:
- MOTOR: MP 202150
- KV: 15/30
- MAX POWER: 70KW
- CONTINIOUS POWER: 35kw
- MAX AMP: 600A
- CONTINIOUS AMP: 350A
- ESC:28S-1200A/MGM 400V-400A
- MAX VOLT: 600V

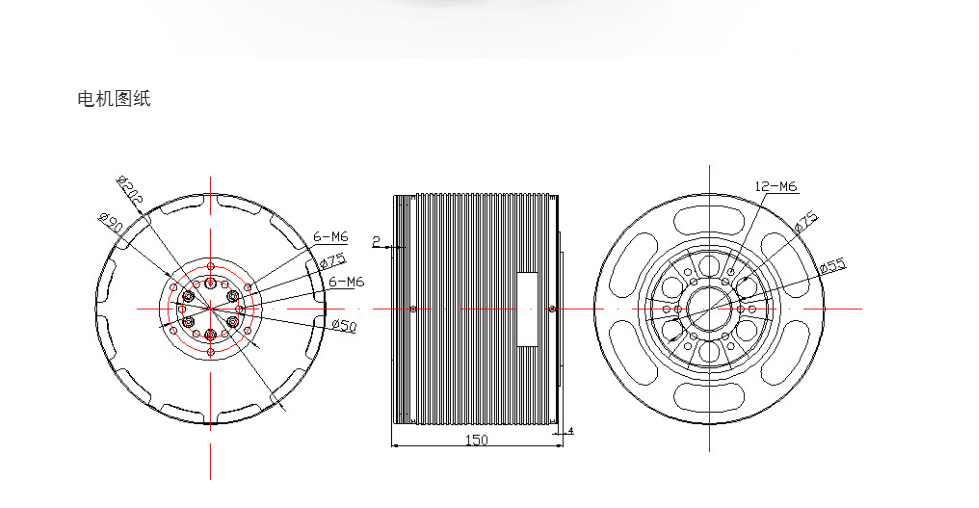

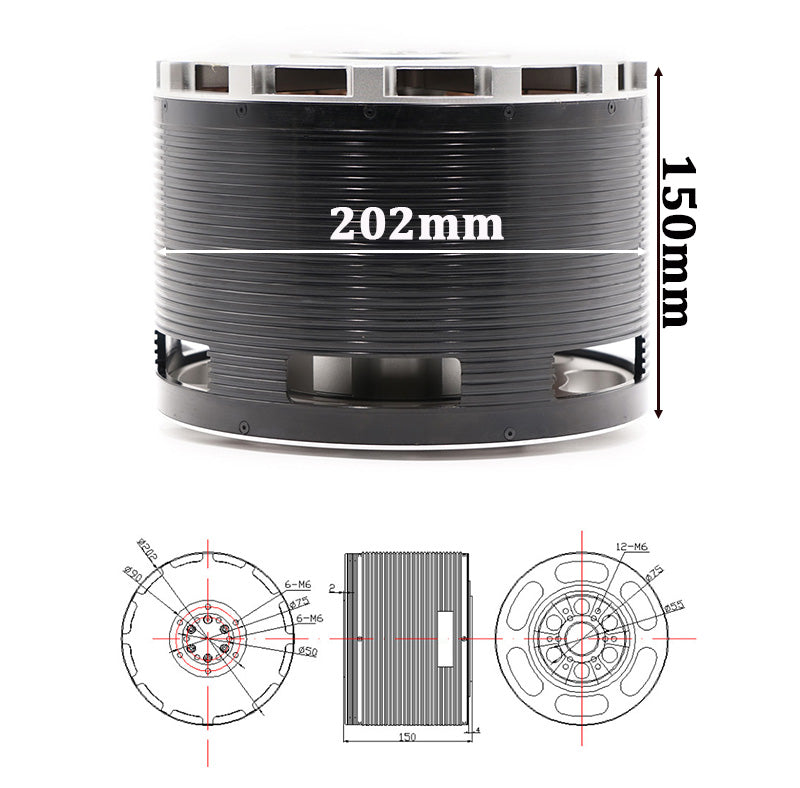

- SIZE: 202x 150( without shaft )
- TORQUE: 130Nm
- THRUST:170kg
- POLES: 20 (40 MAGANET)
- SLOT:36
- PWM:8-16KHZ
- TIMING DEGREE: 15
- WEIGHT (kg):12kg
- SHAFT: 20mm hollow shaft

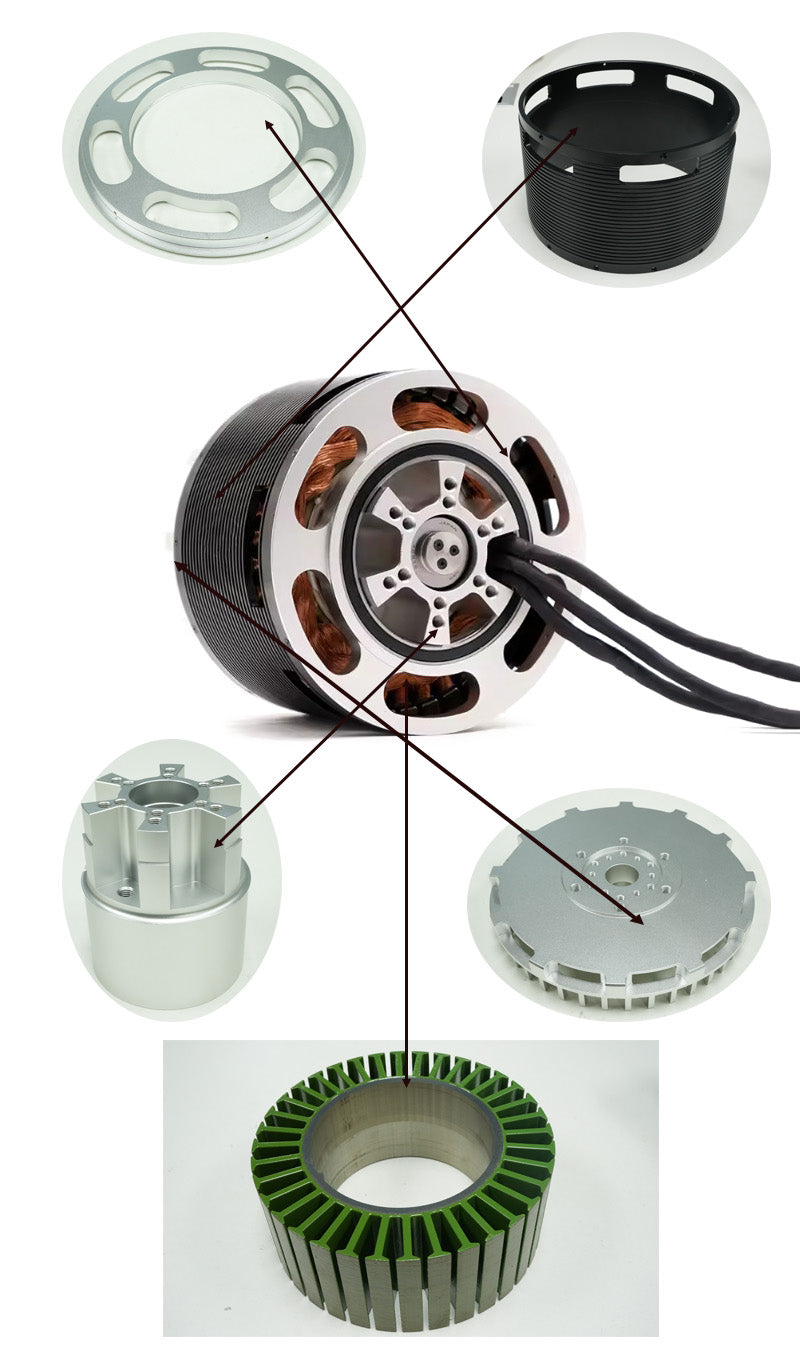

Product Image
![](http://www.freerchobby.cc/cdn/shop/files/3_5babe0fc-2584-421a-92bd-91cd93c4f850.jpg?v=1715307155&width=1500)
Factory environment
Free RC Hobby is a company founded in2012 China, specializing in thedesign and manufacturing of brushless DC
motors, ESCs, and propellers.
![](http://www.freerchobby.cc/cdn/shop/files/001.jpg?v=1717403369&width=1500)
MP202150 Motor use
Mainly used in electric scooter
![](http://www.freerchobby.cc/cdn/shop/files/2_0596b9ed-bacf-418e-ad48-b6eca28a273a.jpg?v=1715311140&width=1500)

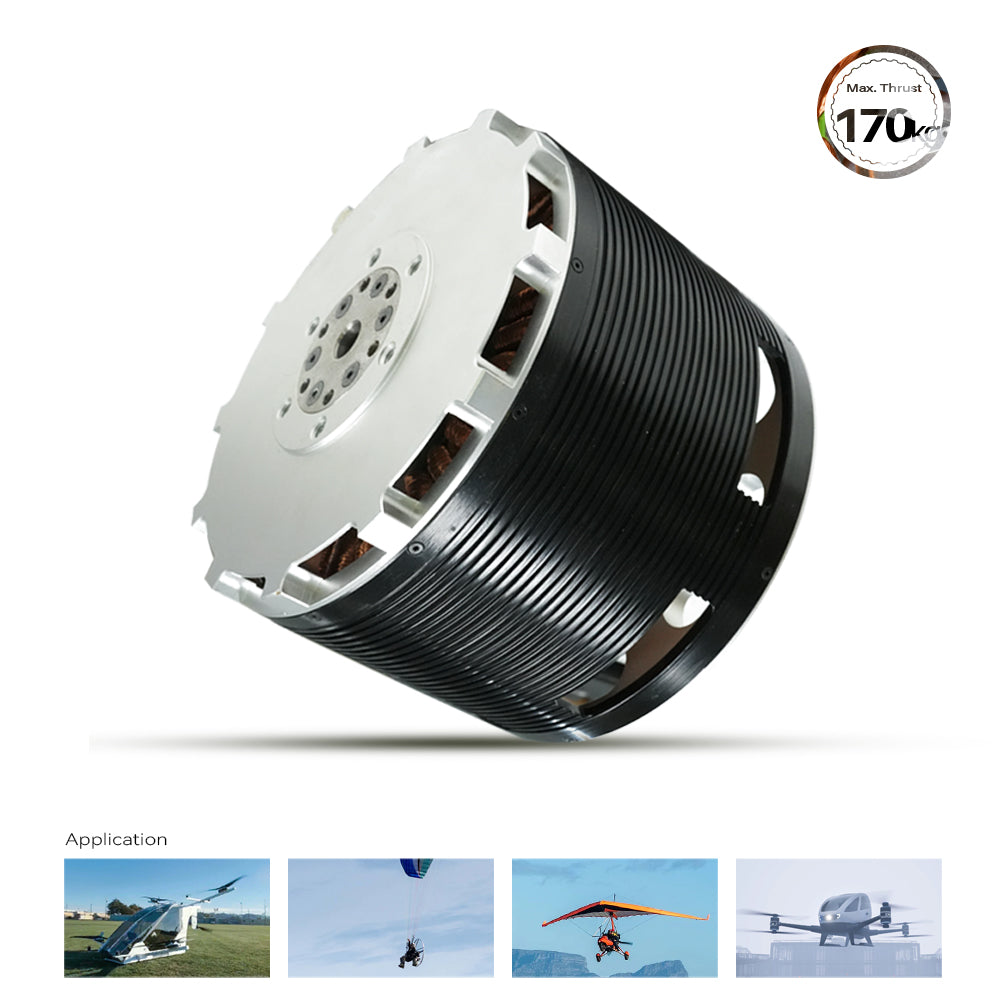

The scope of application of the company motor
It is widely used in hydrofoil surfboard, electric skateboard bicycle powered paraglider, multi-rotor UAV, fixed-wing robot, electric tool, etc.
![](http://www.freerchobby.cc/cdn/shop/files/d74ebcc9833ea13b8b90e80ff651b102.jpg?v=1715308264&width=1500)
Transportation channels
Have USP, FedEX , DHL, TNT, UP SIn different ways.
![](http://www.freerchobby.cc/cdn/shop/files/04_6eff0b12-ac73-46fd-bcd2-311ffb251954.jpg?v=1718174702&width=1500)
Company certificate display
We strive to satisfy your needs as they define them and achieve
their expectations while delivering value. This is accomplished by
implementing thehighest industry standards to coordinate and direct
![](http://www.freerchobby.cc/cdn/shop/files/ce660500b1b944dc8d49588b896a66ae.jpg?v=1715303084&width=3840)
