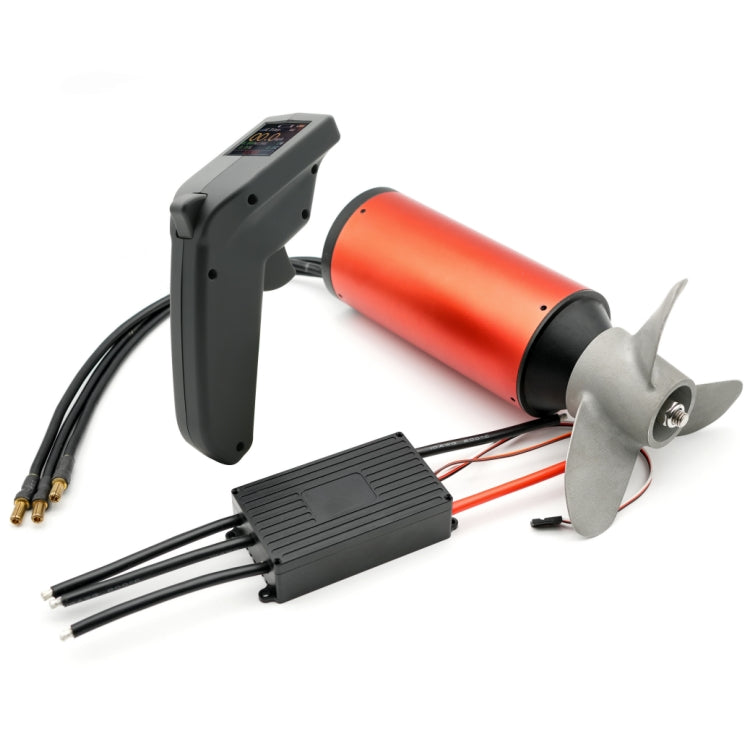

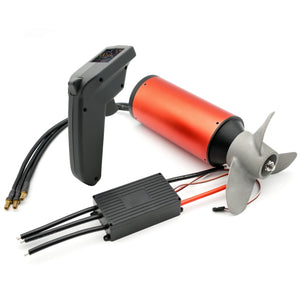

52kg thrust efoil electric propulsion System IP68 Waterproof 70141 bldc Motor +75V 180A ESC +LCD GPS RC remote+CNC propeller

52kg thrust efoil electric propulsion System IP68 Waterproof 70141 bldc Motor +75V 180A ESC +LCD GPS RC remote+CNC propeller

$615.00 USD
$658.00 USD $615.00 USD
Sale Sold out
Shipping calculated at checkout.

18 in stock

FRC-IP6870141COMBO

View full details

Motor Date

  • Specifications:

    • Model type: MP70141
    • Motor dimension: 70*141
    • Shaft:10mm
    • Motor stator slot: 12
    • Motor pole: 14
    • Motor KV:100-300kv
    • Maximum voltage: 48-100v
    • Maximum current 200A
    • No-load current: 1.7A (different kv will be different current)
    • Maximum power: 15kw max and 8kw rated power
    • Resistance: 0.035ohm
    • Weight:1.9kg

Product Image

Factory environment

Free RC Hobby is a company founded in2012 China, specializing in thedesign and manufacturing of brushless DC
motors, ESCs, and propellers.

70141 Motor use

Used in hydrofoil surfboards

The scope of application of the company motor

It is widely used in hydrofoil surfboard, electric skateboard bicycle powered paraglider, multi-rotor UAV, fixed-wing robot, electric tool, etc.

Transportation channels

Have USP, FedEX , DHL, TNT, UP SIn different ways.

Company certificate display

We strive to satisfy your needs as they define them and achieve
their expectations while delivering value. This is accomplished by
implementing thehighest industry standards to coordinate and direct
