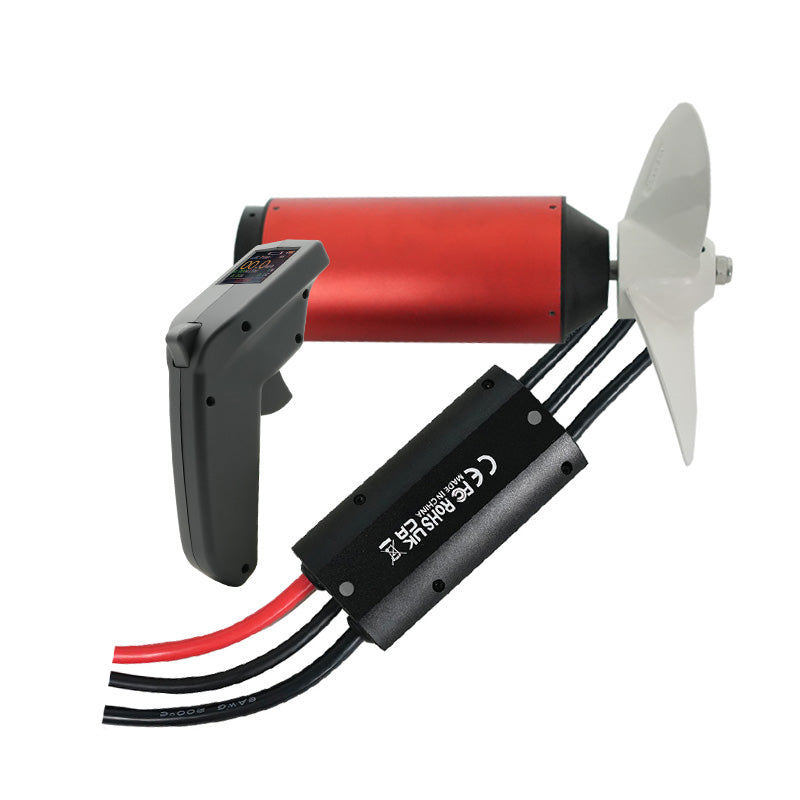

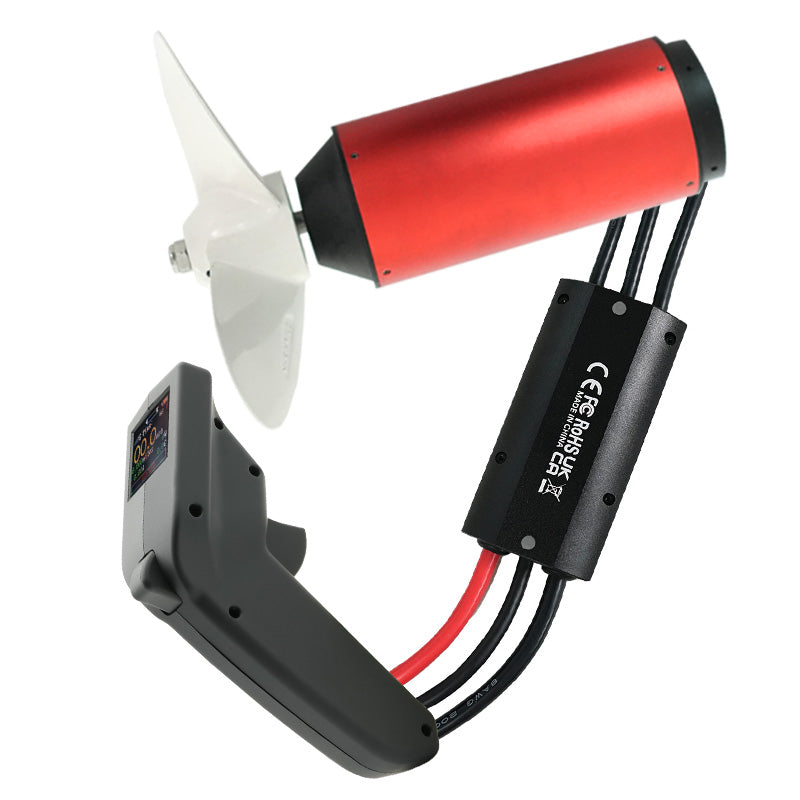

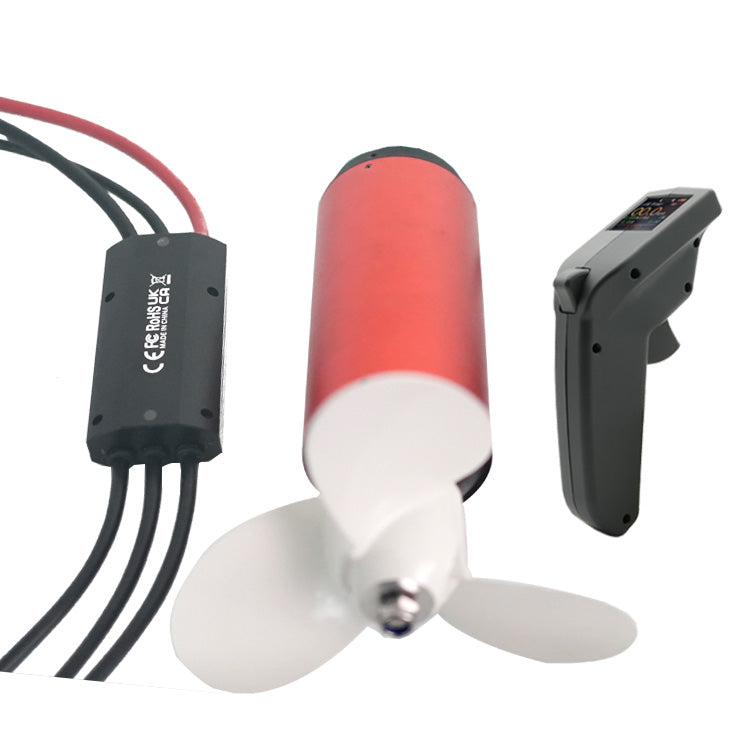

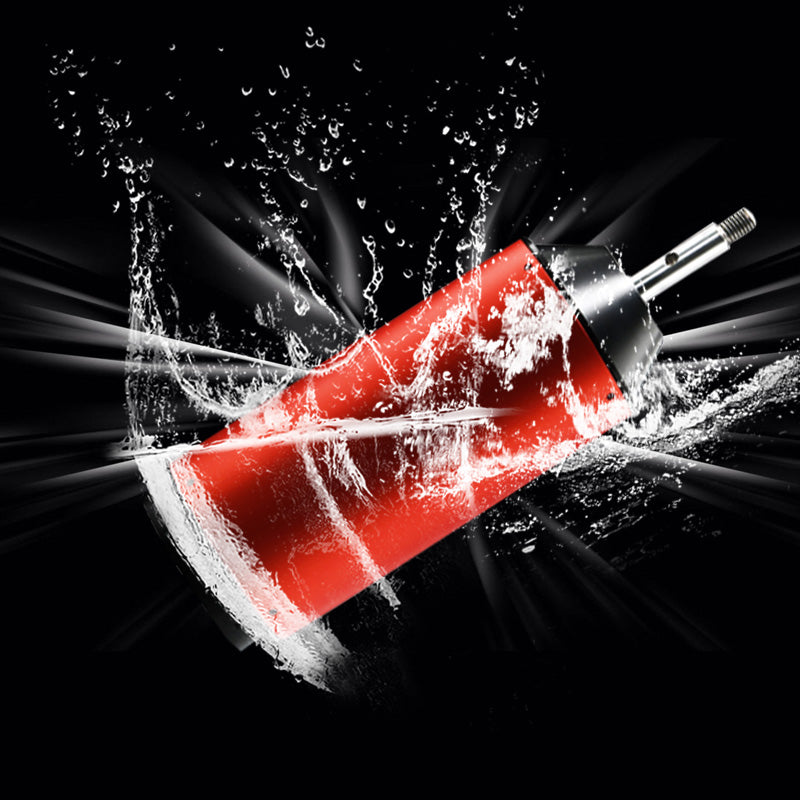

FRC 70141 Brushless Motor IP68 Underwater Thruster Propulsion System With ESC Propeller and Remote Controller
|
Item
|
Value
|
|
Warranty
|
6 months
|
|
Place of Origin
|
China
|
|
Province
|
Guangdong
|
|
Brand Name
|
Free RC Hobby
|
|
Model Number
|
FRC 70141
|
|
Usage
|
Electric Skateboard, Scooter, Car, Electric Bicycle, Fan, Home Appliance, Smart Home, E-foil, Underwater Scooter
|
|
Type
|
Brushless Motor
|
|
Construction
|
Permanent Magnet
|
|
Commutation
|
Brushless
|
|
Protect Feature
|
Explosion-proof
|
|
Efficiency
|
89%
|
|
Dimension
|
70mm x 161mm
|
|
KV Availability
|
70 -150customizable
|
|

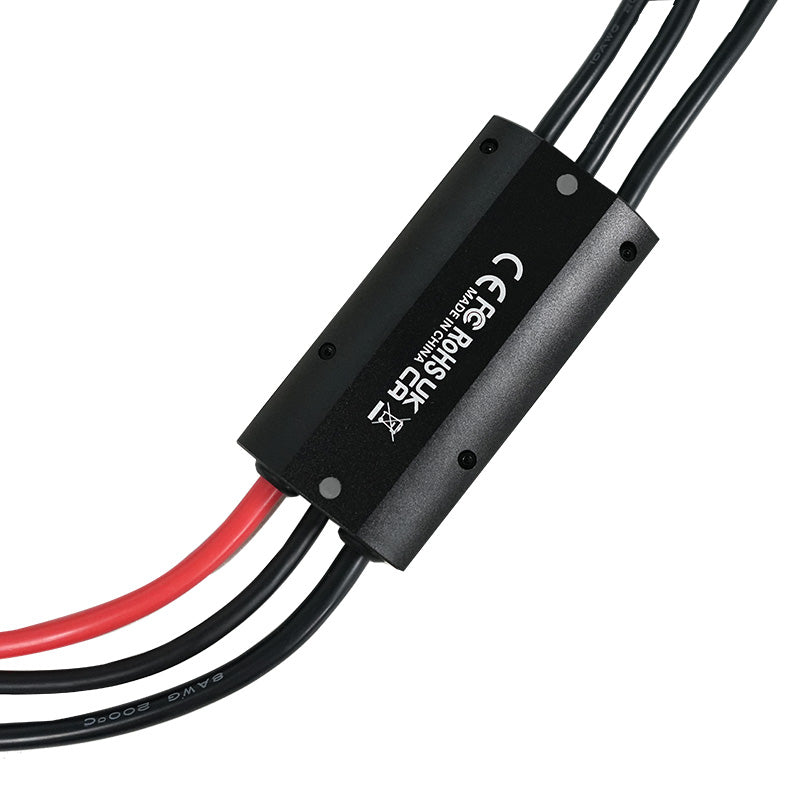

ESC
|
75V 200A
|
|
Max. Torque
|
9N.m
|
|
Max. Thrust
|
50kg
|
|
Max. RPM
|
8000
|
|
Max. Voltage
|
60V
|
|
Peak Current
|
150A
|
|
Continuous Current
|
120A
|
|
Max. Power
|
9KW
|
|
Shaft Diameter
|
8/10mm (customizable)
|
|
Weight
|
2kg
|
