16S 75V 200A Vesc brushless motor controller electric motorcycle efoil boat ect

Regular price
$239.00
Sale price
$239.00
Regular price
$275.00
Sold out
Unit price
per
Shipping calculated at checkout.

16S 75V 200A Vesc waterproof watercooled electric motorcycle efoil bldc motor controller

Spec:

  • Voltage:14-75V( safe for 3-16S)
  • Continuous Current : 200A
  • Max Current :300A
  • Supported sensors: ABI, HALL, AS5047,AS5048A
  • EPRM:150000

Feature:

  • Regenerative braking
  • Sensored or sensorless operation + hybrid mode
  • Configurable RPM-, current-, voltage- and power limits
  • Input source: PPM, Analog, NRF Nyko Kama Nunchuck
  • Communication ports: USB, CAN, UART
  • Throttle curve and ramping for all input sources
  • Seamless 4-quadrant operation
  • Motor revolution, amp hour, watt hour counting
  • Real time data analysis and read out via communication ports
  • Adjustable protection against:
  • Low input voltage
  • High input voltage
  • High motor current
  • High input current
  • High regenerative braking current (separate limits for the motor and the input)
  • High RPM (separate limits for each direction)
  • Digital VCC and analog VCC are produced by different voltage regulators respectively to make the system AD conversion more accurate
  • Motor wire: 8AWG
  • Power cable: 10AWG

Main feacture:

Features:



      1, Based on the design of vesc75300 hardware principle
  1. Using 18 mosfet IRF7769L (100v 200A each)

  2. Independent gate drive

  3. Independent power supply

  4. Independent current sampling

  5. Active filter circuit makes current sampling more accurate

       7, rich onboard interface
       8, independent two-way adc
       9, support VESC TOOL official 75300 firmware
  1. Four-layer board design of size 100x61mm, the circuit is reasonable and stable
    Size: 1127336 (Including heat sink)

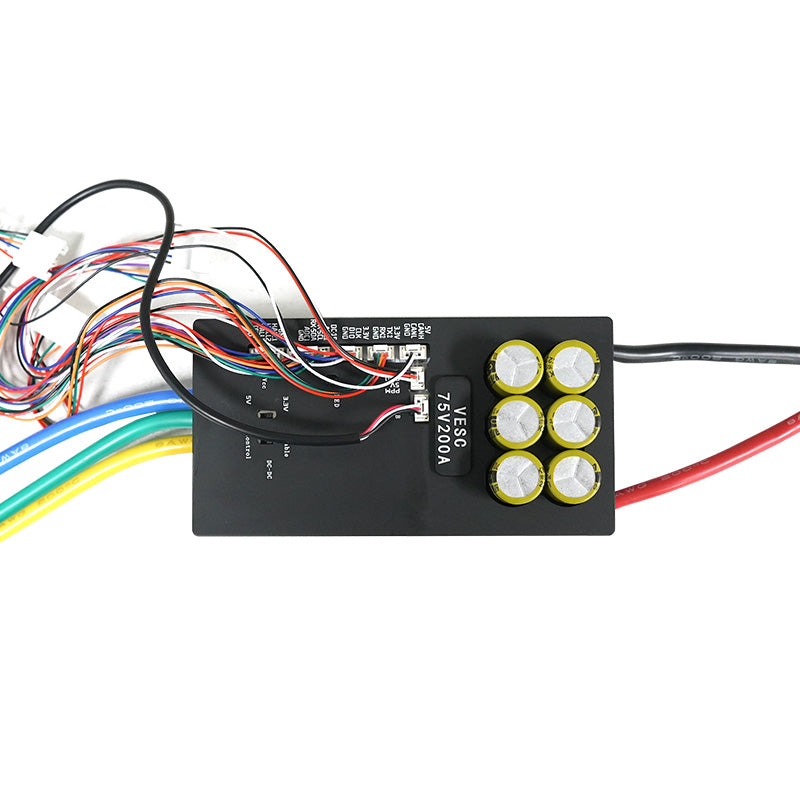

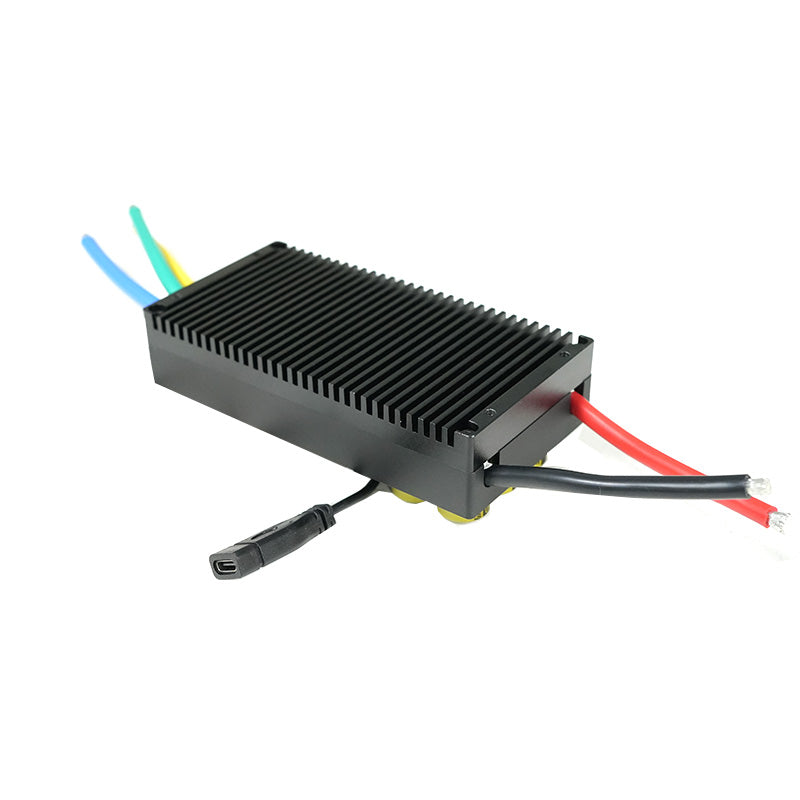

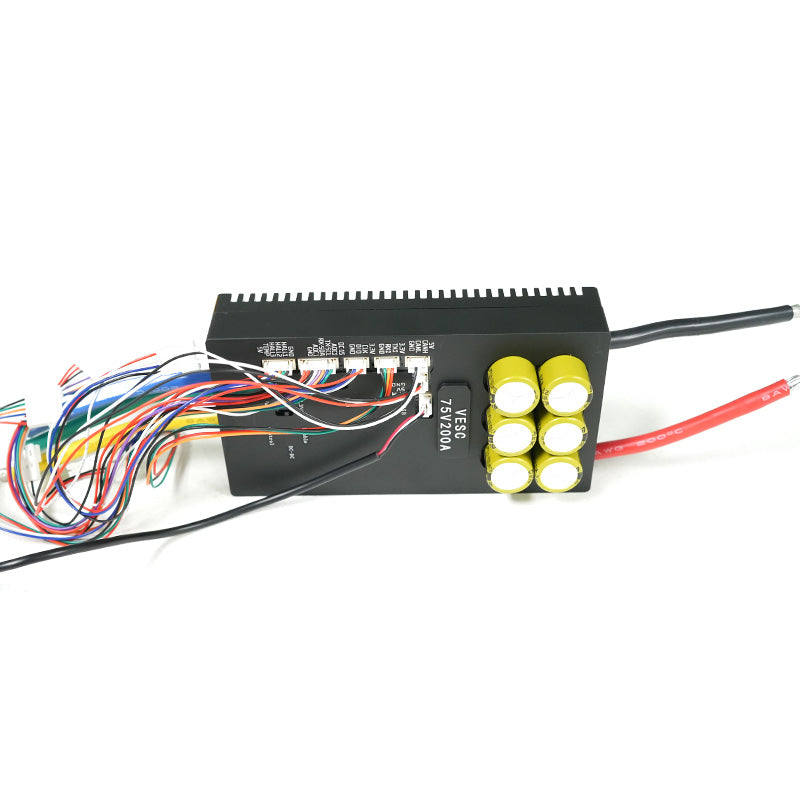

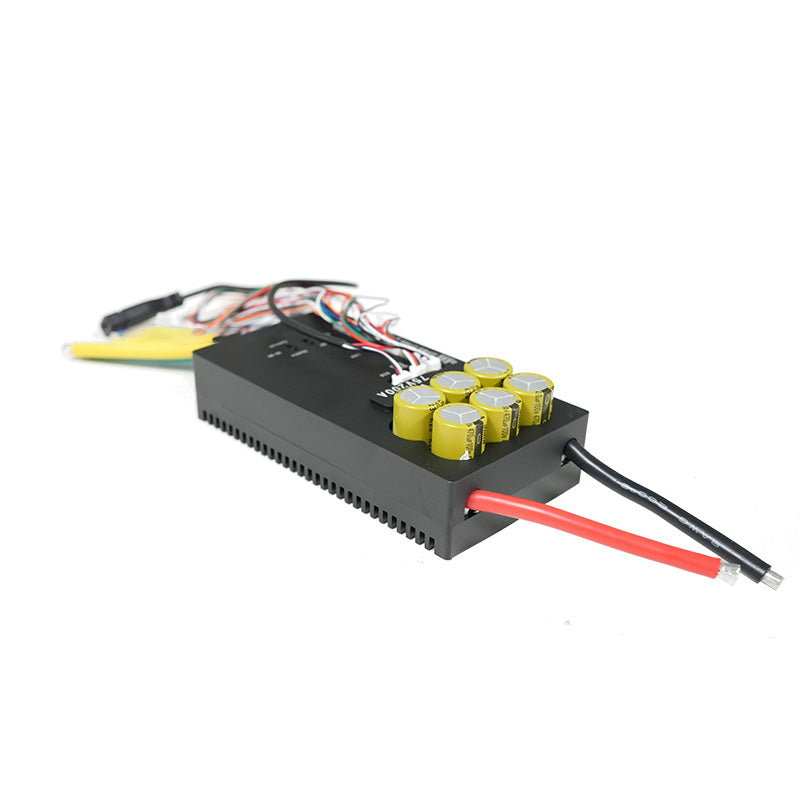

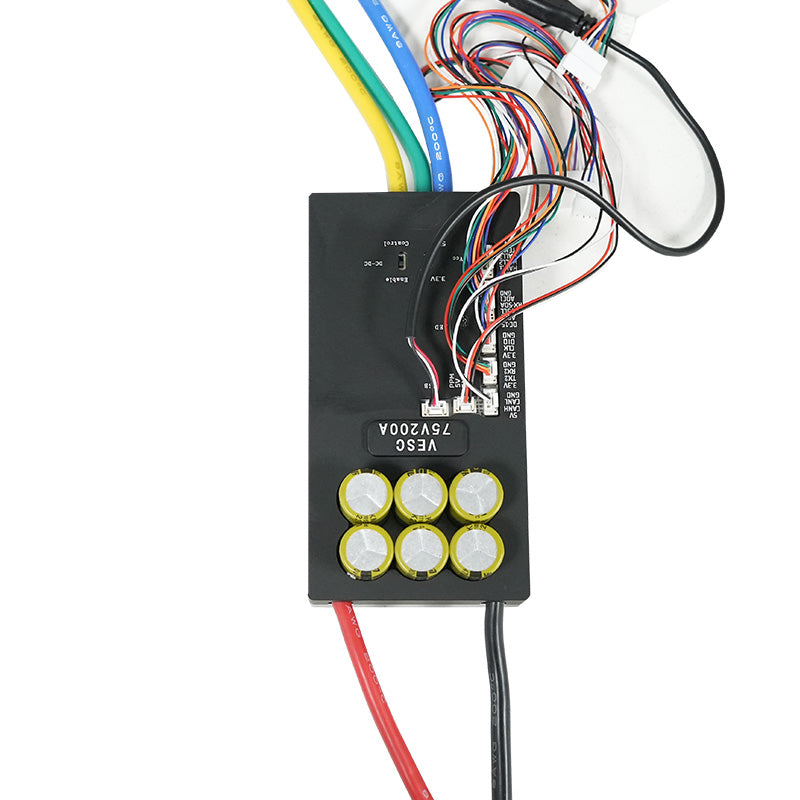

Product Photos:

4) Company Introduction

Dongguan Freerchobby Co.,Limited is a private-owned enterprise, located in Dongguan, which is famous for the world factory with highly developed economy. The company has 1500 square meters of modern industrial plants and advanced assembly line equipment. We are specialized in manufacturing brushless dc motor, controller, model parts, hardware parts and so on. The company has 10 CNC lathes, 5 BLDCM winders and various advanced automatic processing equipment. Our company has a very stable supply capacity, monthly production more than 15000 sets of brushless motor and motor and controller accessories as well as hardware accessories 100000. The products sell well in more than 50 countries and regions from the whole world.



The company strictly controls each process to be standardization, systematization and unification. The company has testing equipment such as dynamic balancing machine, comprehensive tester for BLDCM, noise tester, Gauss tester, tension tester, oscilloscope, etc. to test the performance of motor and controller in a full range and ensure that each performance index can reach the international leading level. All products and parts are in line with ROHS standards, and have won CE and ROHS certification.

The company adheres to the tenet of "quality first, reputation first and service superior", improves the brand awareness, gives full play to the brand advantages, maintains the brand image, and provides the most reliable quality, the best service and the fastest delivery for customers at home and abroad with exquisite technology and standardized management.

Our slogan is "we can do what you need"! We are looking forward to cooperating with you!

5) Production line Photos:

Certificate:
