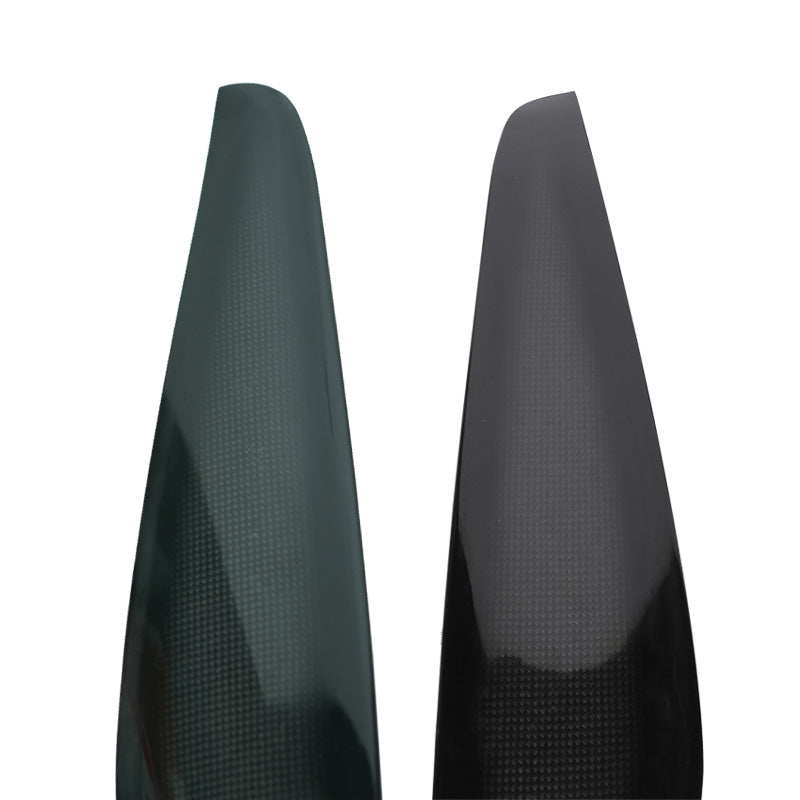

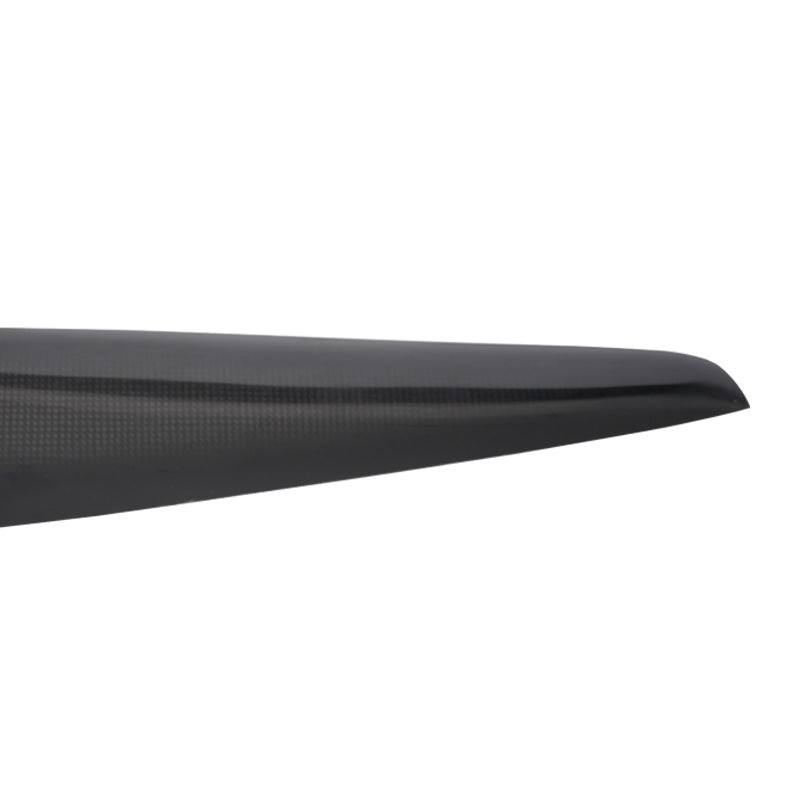

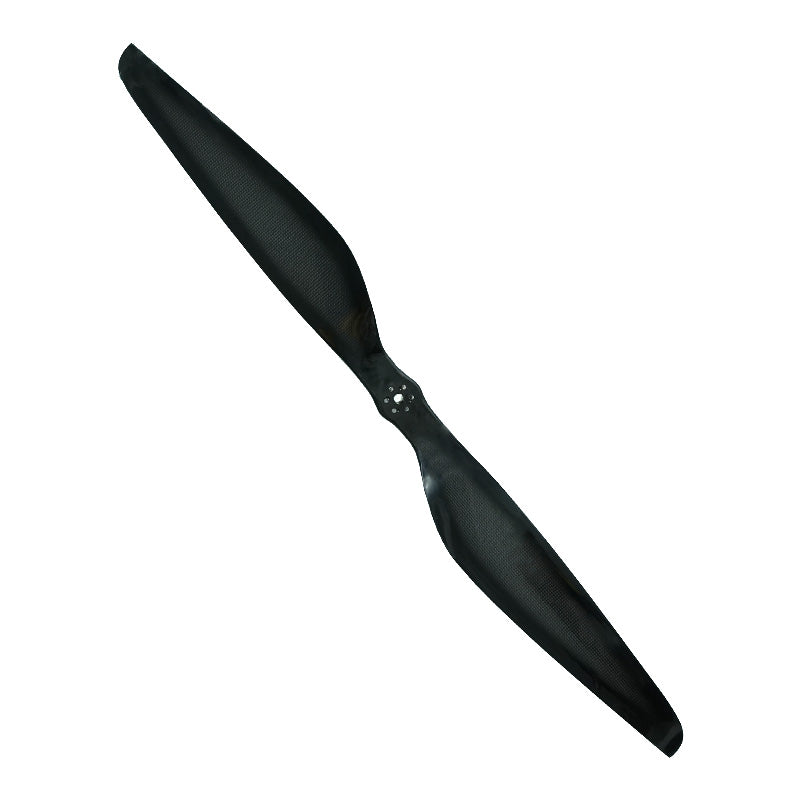

42 inch large size carbon fiber propeller rc helicopter drone propellers for heavy life agriculture airplane

42 inch large size carbon fiber propeller rc helicopter drone propellers for heavy life agriculture airplane

Regular price $185.00 USD
Regular price $195.00 USD Sale price $185.00 USD
Sale Sold out
Shipping calculated at checkout.
Quick Details
Type:
Helicopter
Power:
Battery
Material:
carbon fiber
Scale:
G42*13.1 Prop-2PCS/PAIR
Radio Control Style:
RC HOBBY, RC Hobby
Place of Origin:
China
Brand Name:
T-MOTOR, OEM
Model Number:
G42*13.1 Prop-2PCS/PAIR
Style:
Radio Control Toy
Color:
Black
Hole size:
Hole size can be customized
Application:
For aerial photography / heavy lift agriculture drone
Certificate:
CE TEST REPORT
Feature:
Excellent Quality, High Efficiency
Parts including:
CW*1 or CCW *1 (per pair)
Thrust Limitation:
85kg
Surface Treatment:
Glossy

Packaging & Delivery

Selling Units:
Single item
Single package size:
115X18X14 cm
Single gross weight:
5 kg
Package Type:
Carton box
Lead Time :
Quantity(Boxes) 1 - 100 >100
Est. Time(days) 6 To be negotiated

42 inch props large propeller generator for airplane brushless dc motor propellers

Product Description



    Specifications

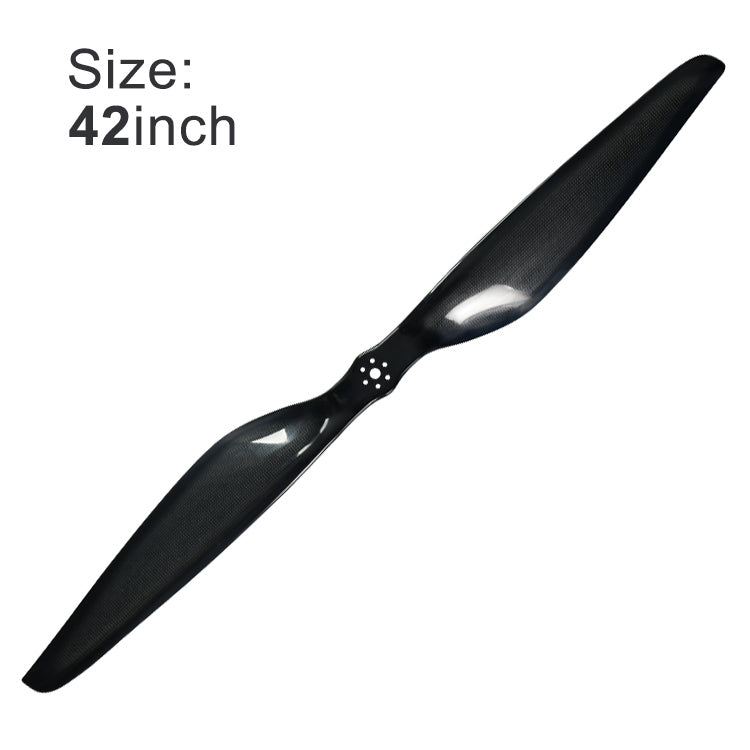

Diameter/Pitch 42*131.1inch   (1068mm*332.7mm) Working Temp -40℃~65℃
Weigh(Single propeller) 290g Storage Temp -10℃~50℃

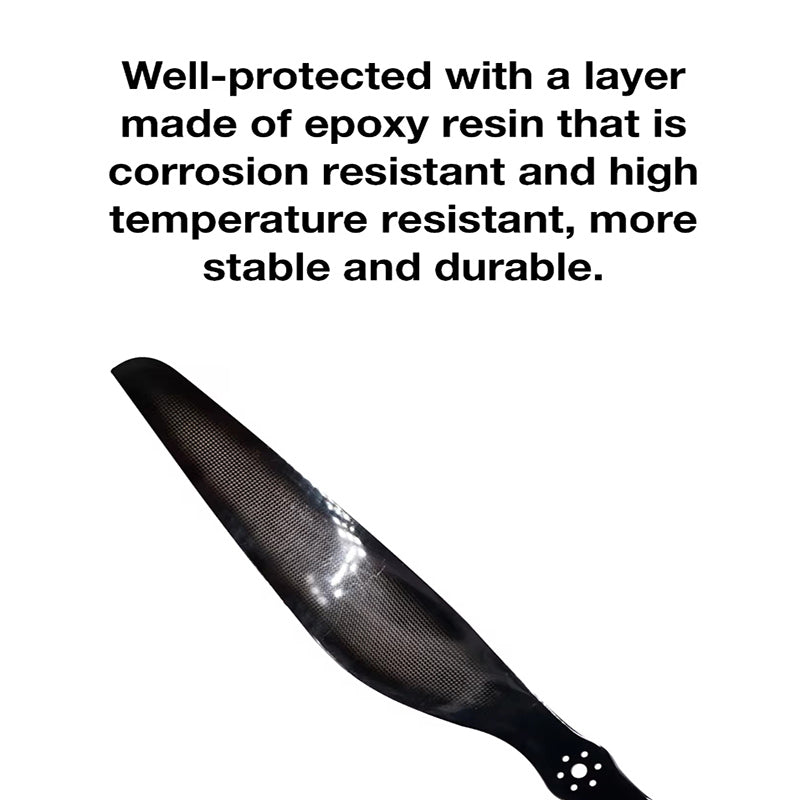

Material CF+Epoxy Storage Humidity <85%
Surface Treatment Glossy Optimum RPM 1000-2800 RPM/min
Propeller type 2blades-intergrated Thrust Limitation 85kg
Warning
(1)Please make sure that screws of cover plates and propellers are mounted properly
(2)Double check that propellers are flawless,otherwise,please replace them before flight
(3)Fall-off or equivalent impact to propellers will lead to defromation or cracks,in this case,you will need replace them
(4)NEVER add force onto the propellers or decompose the propellers,Any decomposition will result in safety issues
(5)For safety,please stay away from the spinning propellers,Special attention should be paid to when using propellers

(6)Please keep the propellers away from hostile environments containing corrosive gases,and maintain strict compliacce with storage temperature and humidity requirements,especially when it comes to long-time storage

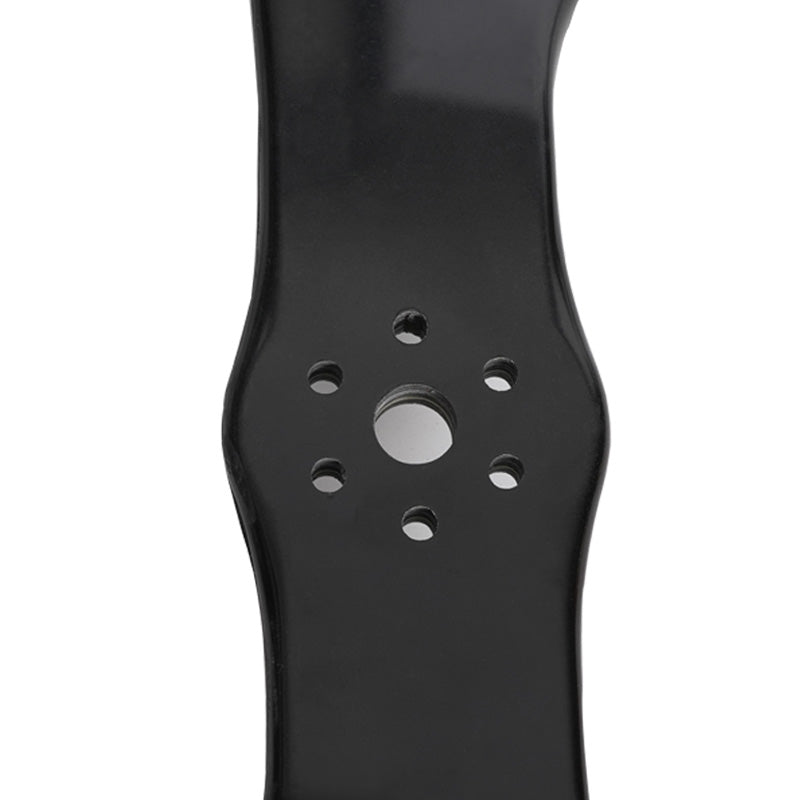

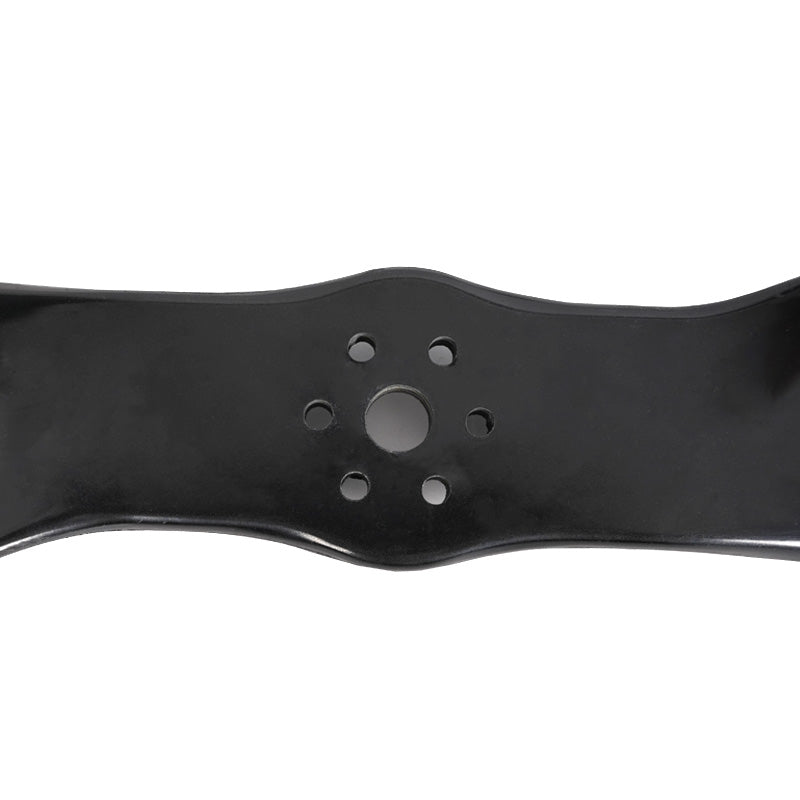

The standard hole pattern: 6M5/12mm.  The center hole is 12mm.



Testing report:



Motor: 154120   ESC: 120V 500A ESC    Prop:4213
KV Voltage(v) Current(A) Thrust(kg) RMP Temp(degree)
33 112 12 10 1900 32.6
33 111 30 20 2600 36
33 111 40 25 2890 38
33 111 50 30 3100 39
33 111 63 35 3300 40
33 110 66 38 / /
33 117 70 39.6 3500 42
40 110 120 55 / 40
55 110 160 58 / /
55 111 230 77 / /
55 111 270 85

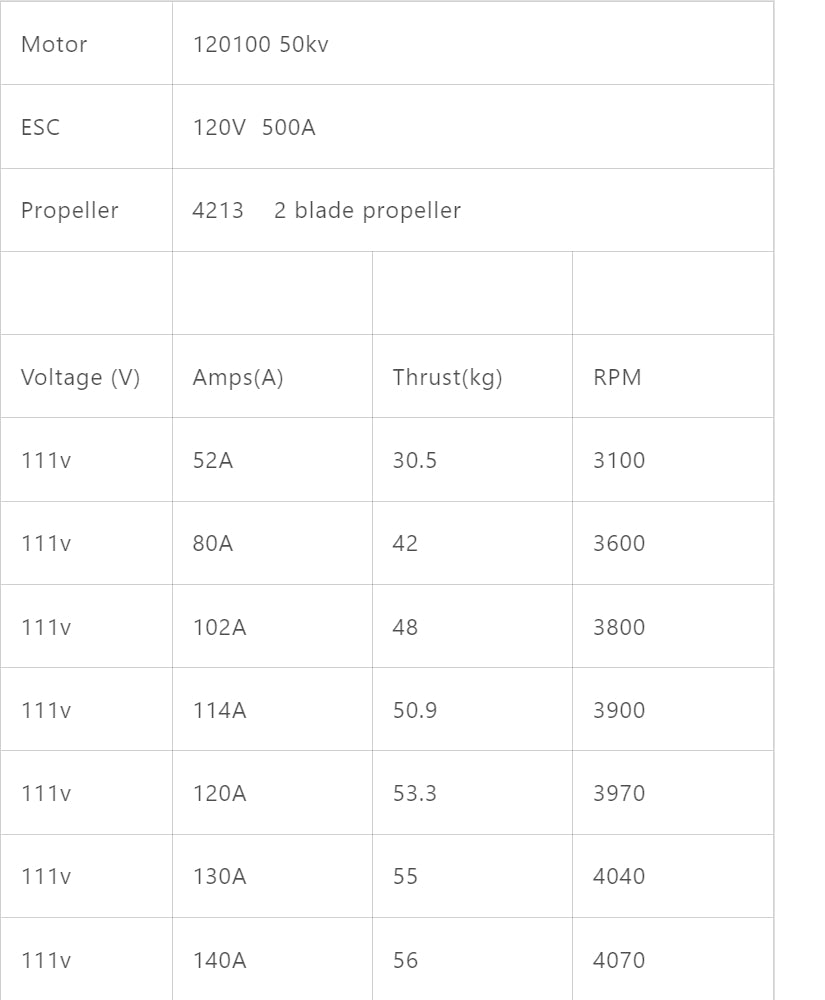

Motor 120100 50kv
ESC  120V  500A
Propeller 4213    2 blade propeller

Voltage (V) Amps(A) Thrust(kg) RPM
111v 52A 30.5 3100
111v 80A 42 3600
111v 102A 48 3800
111v 114A 50.9 3900
111v 120A 53.3 3970
111v 130A 55 4040
111v 140A 56 4070

Applications:
1.UAV Drone, Copter, FPV frame parts, Tools,model,medical devices,toys,telescopic tube;
2.Heli RC Racing Car Parts;
3.Medical X-ray machine Carbon Parts;
4.Mobile or Jewelry electronic Production Decoration;
5.Industrial mechanical parts sports priducts parts;
