25KW 120100 KV80 Outrunner brushless motor for electric paramotors and electric car, electric boat, etc.

1)Specifications:

  • MOTOR: MP120100
  • KV: 121/80/55/42/35
  • MAX POWER: 25KW
  • ESC: 300/400A
  • MAX VOLT: 100V
  • MAX CURRENT:300A
  • CONTINIOUS CURRENT:180A
  • THRUST:55KG
  • TORQUE:35Nm
  • RESISTANCE (Ohm):
  • SIZE: 120 x 120 ( without shaft )
  • STATOR: 60mm
  • NET WEIGHT (kg): 3.9
  • SHAFT: 12mm

2) Testing parameter

Motor 120100 50kv
ESC  120V 500A
Propeller 4010    2 blade propeller
Voltage (v) Amps(A) Thrust(kg) RPM
111v 30A 18.5kg 2783
111v 50A 26.4kg 3335
111v 80A 37kg 3905
111v 100A 42.7kg 4168
111v 130A 50kg 4400
111v 140A 53.7kg 4570

Motor 120100 50kv
ESC  120V  500A
Propeller 4213    2 blade propeller
Voltage (V) Amps(A) Thrust(kg) RPM
111v 52A 30.5 3100
111v 80A 42 3600
111v 102A 48 3800
111v 114A 50.9 3900
111v 120A 53.3 3970
111v 130A 55 4040
111v 140A 56 4070



 3) Product Image

4) Company Introduction

Dongguan Freerchobby Co.,Limited is a private-owned enterprise, located in Dongguan, which is famous for the world factory with highly developed economy. The company has 1500 square meters of modern industrial plants and advanced assembly line equipment. We are specialized in manufacturing brushless dc motor, controller, model parts, hardware parts and so on. The company has 10 CNC lathes, 5 BLDCM winders and various advanced automatic processing equipment. Our company has a very stable supply capacity, monthly production more than 15000 sets of brushless motor and motor and controller accessories as well as hardware accessories 100000. The products sell well in more than 50 countries and regions from the whole world.



The company strictly controls each process to be standardization, systematization and unification. The company has testing equipment such as dynamic balancing machine, comprehensive tester for BLDCM, noise tester, Gauss tester, tension tester, oscilloscope, etc. to test the performance of motor and controller in a full range and ensure that each performance index can reach the international leading level. All products and parts are in line with ROHS standards, and have won CE and ROHS certification.

The company adheres to the tenet of "quality first, reputation first and service superior", improves the brand awareness, gives full play to the brand advantages, maintains the brand image, and provides the most reliable quality, the best service and the fastest delivery for customers at home and abroad with exquisite technology and standardized management.

Our slogan is "we can do what you need"! We are looking forward to cooperating with you!

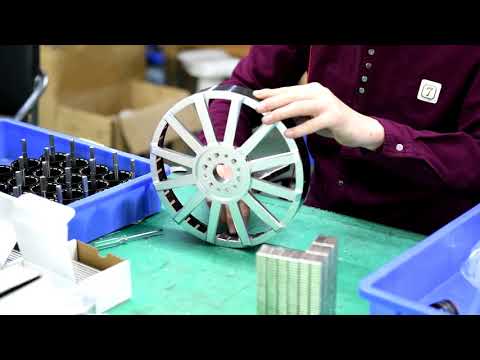

5) Production line Photos:
