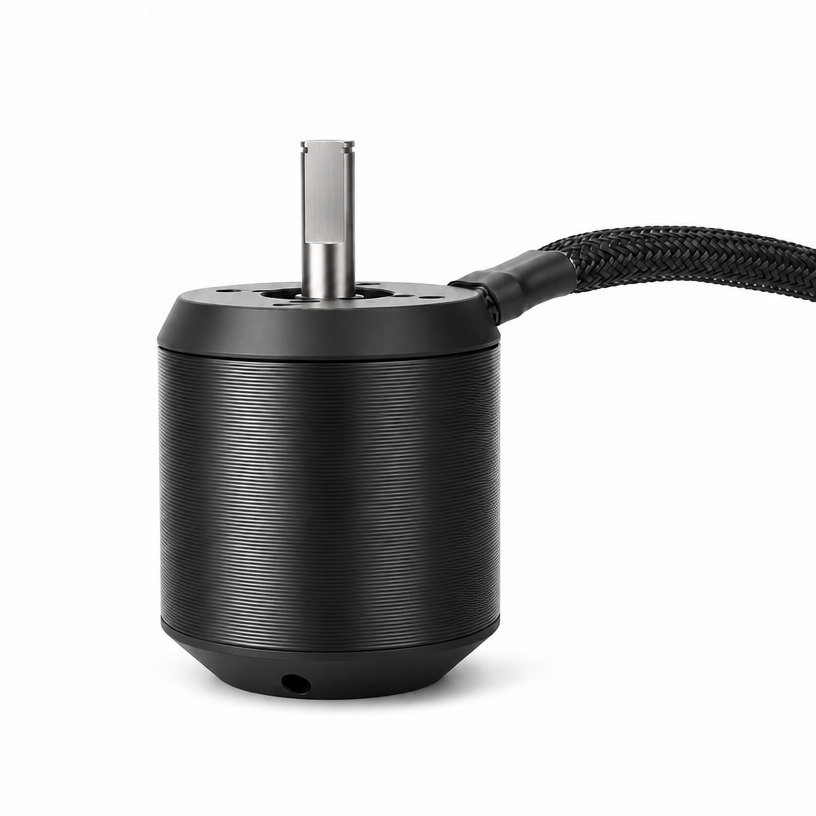

Freerchobby 2950W BLDC Motor 6368 190KV Brushless DC Motor for DIY Skateboard

Regular price
$56.00
Sale price
$56.00
Regular price
$70.00
Sold out
Unit price
per
Shipping calculated at checkout.

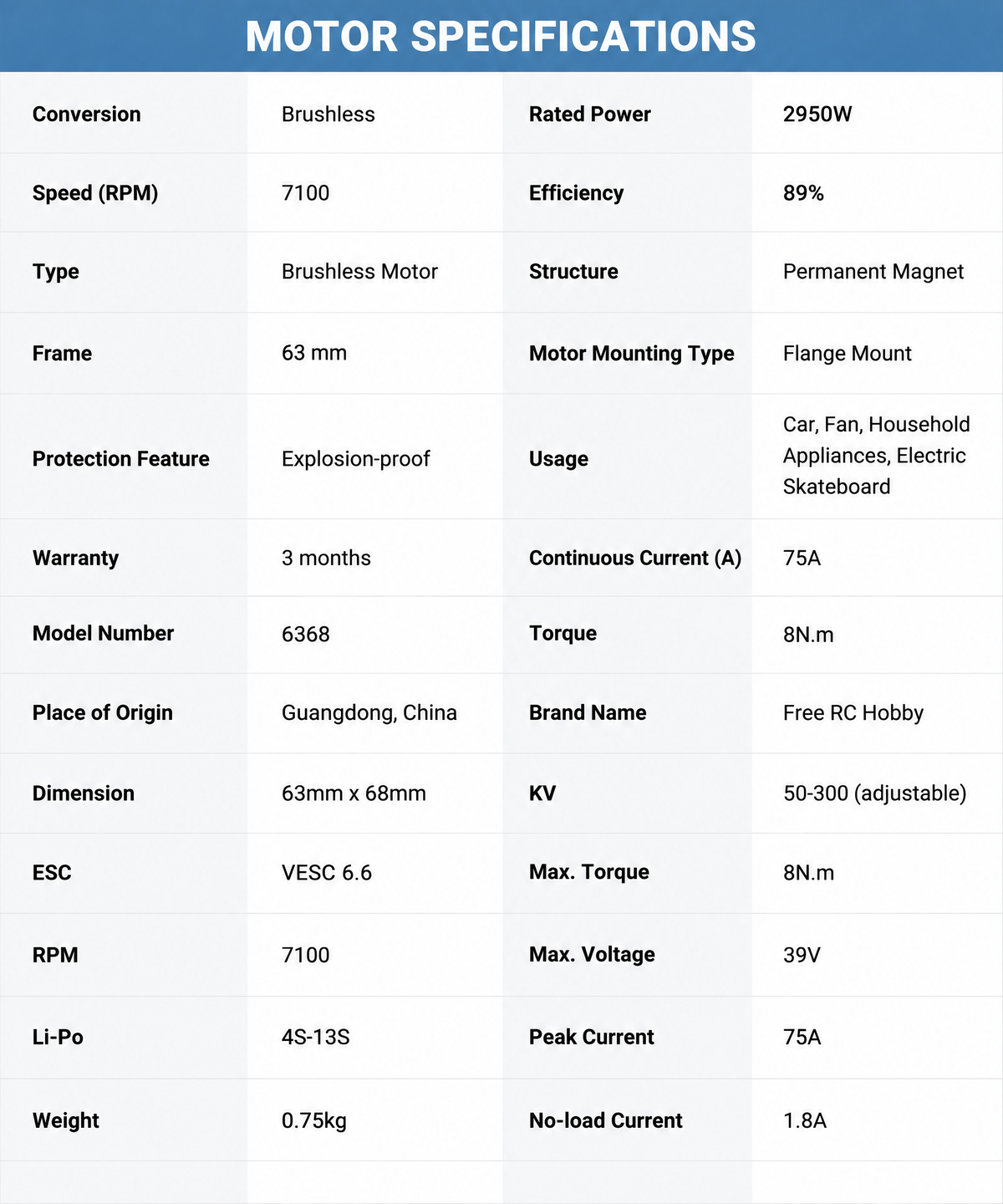

Product Spec:
Max Power:2950 Watts
Max Current: 75 Amps
Max Volts: 4-13S
Max Torque:8Nm
Motor Resistance: 0.1678Ohm
Recommend ESC:VESC4&VESC6(3-13S )
Weight: 750g

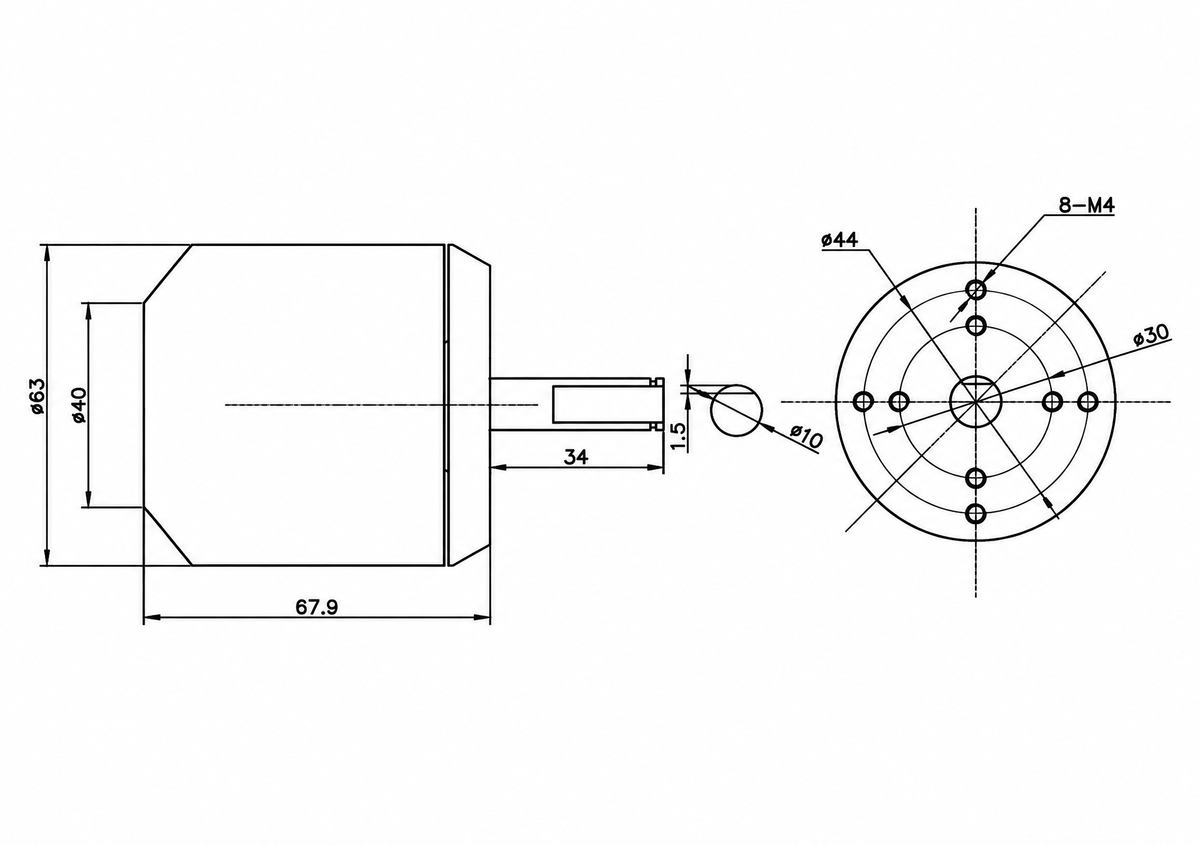

The motor length:68mm
The motor diameter: 63mm
Shaft Diameter 8mm/10mm, 30mm length(8mm ), 25mm length(10mm),3x3x14mm keyway slot.
Motor Wire: 12AWG wire with 4.0mm Gold Bullet Connector Male.customizable 5.5mm gold plated connector
Wire configuration:
Blue = A
Black = B
Yellow = C
Stator: 0.2mm thickness lamination japan steel
Magnet: N42SH high temp curve magnet
BLDC Motor
The number of pole: 14
Sensor Wire: Standard RC Sensor Wire JST-ZH 6pin 1.5mm/2mm pitch
Internal PCB with 120 Degree Hall Effect Sensors.
Motor can be used with or without a sensor. Sensorless operation is most common.
VESC Sensor Wires required to use with VESC.



2) Product Image

3) Company Introduction

Dongguan Freerchobby Co.,Limited is a private-owned enterprise, located in Dongguan, which is famous for the world factory with highly developed economy. The company has 1500 square meters of modern industrial plants and advanced assembly line equipment. We are specialized in manufacturing brushless dc motor, controller, model parts, hardware parts and so on. The company has 10 CNC lathes, 5 BLDCM winders and various advanced automatic processing equipment. Our company has a very stable supply capacity, monthly production more than 15000 sets of brushless motor and motor and controller accessories as well as hardware accessories 100000. The products sell well in more than 50 countries and regions from the whole world.



The company strictly controls each process to be standardization, systematization and unification. The company has testing equipment such as dynamic balancing machine, comprehensive tester for BLDCM, noise tester, Gauss tester, tension tester, oscilloscope, etc. to test the performance of motor and controller in a full range and ensure that each performance index can reach the international leading level. All products and parts are in line with ROHS standards, and have won CE and ROHS certification.

The company adheres to the tenet of "quality first, reputation first and service superior", improves the brand awareness, gives full play to the brand advantages, maintains the brand image, and provides the most reliable quality, the best service and the fastest delivery for customers at home and abroad with exquisite technology and standardized management.

Our slogan is "we can do what you need"! We are looking forward to cooperating with you!

4) Production line Photos:
