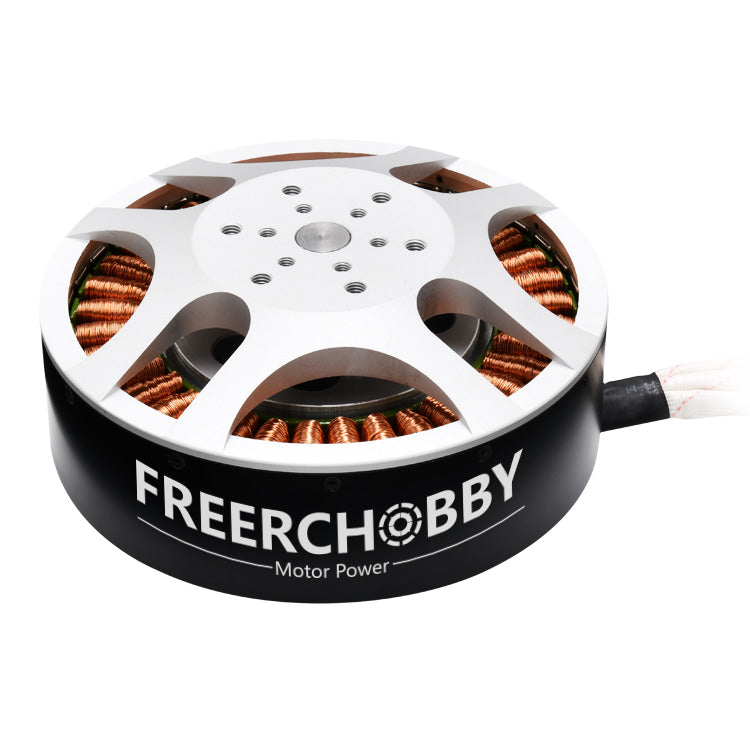

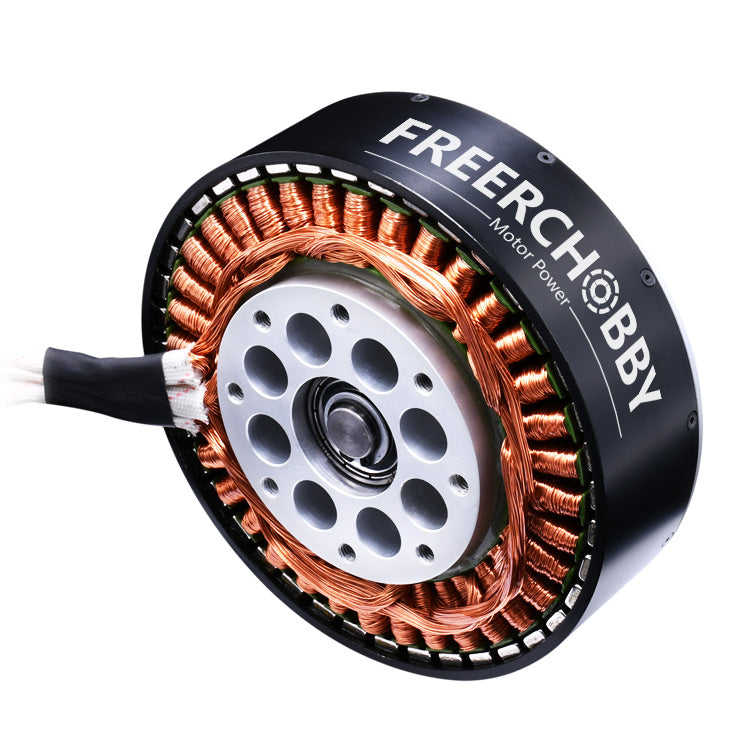

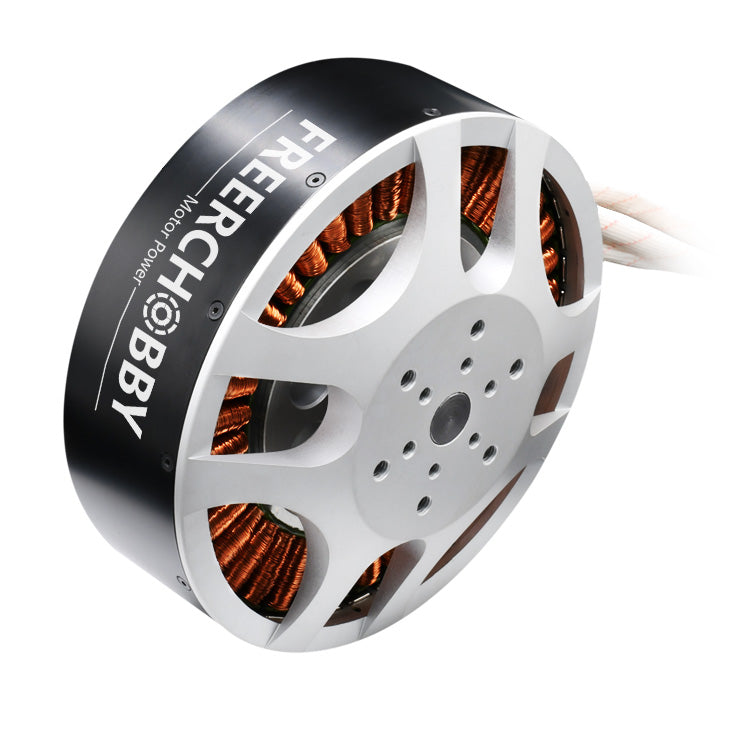

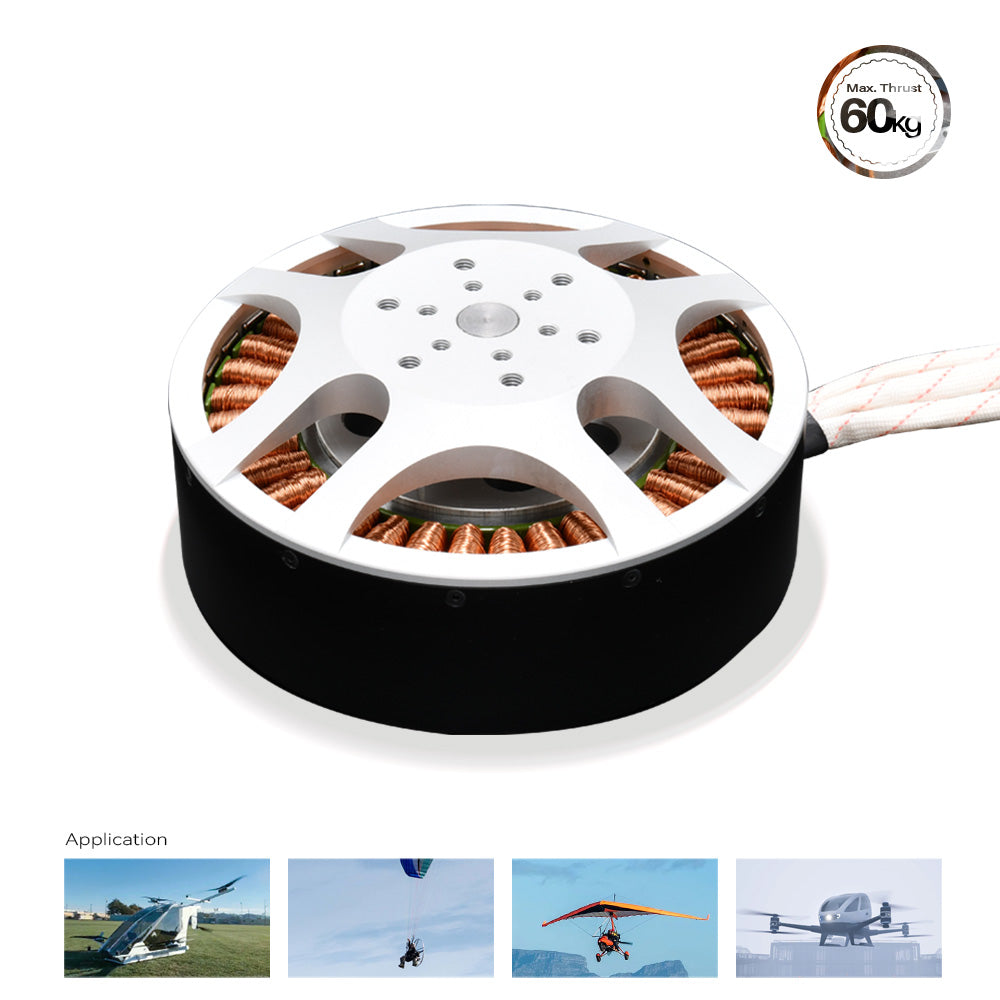

MP 15470 30kw 60kg Thrust Sensorless Motor for Drone /Paramotor

MP 15470 30kw 60kg Thrust Sensorless Motor for Drone /Paramotor

Regular price $650.00 USD
Regular price $650.00 USD Sale price $650.00 USD
Sale Sold out
Shipping calculated at checkout.

94 in stock

SKU:

View full details

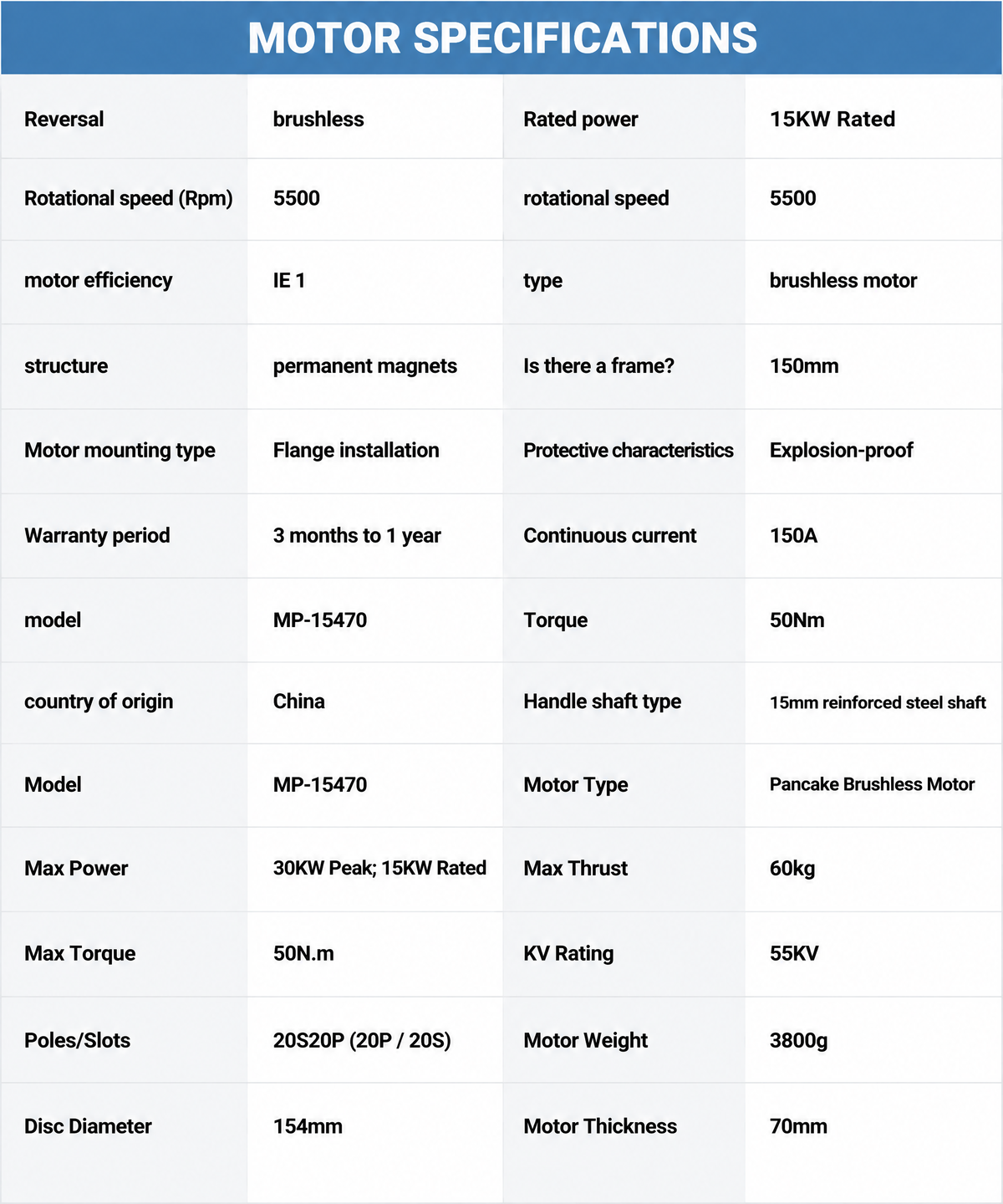

  • Specifications:

    • MOTOR: MP 15470
    • KV: 55
    • MAX POWER: 30KW
    • RATED POWER: 12kw
    • MAX CURRENT:300A
    • ESC:120V 500A ESC /22S 500A ESC
    • MAX VOLT: 100V
    • RPM: 5500

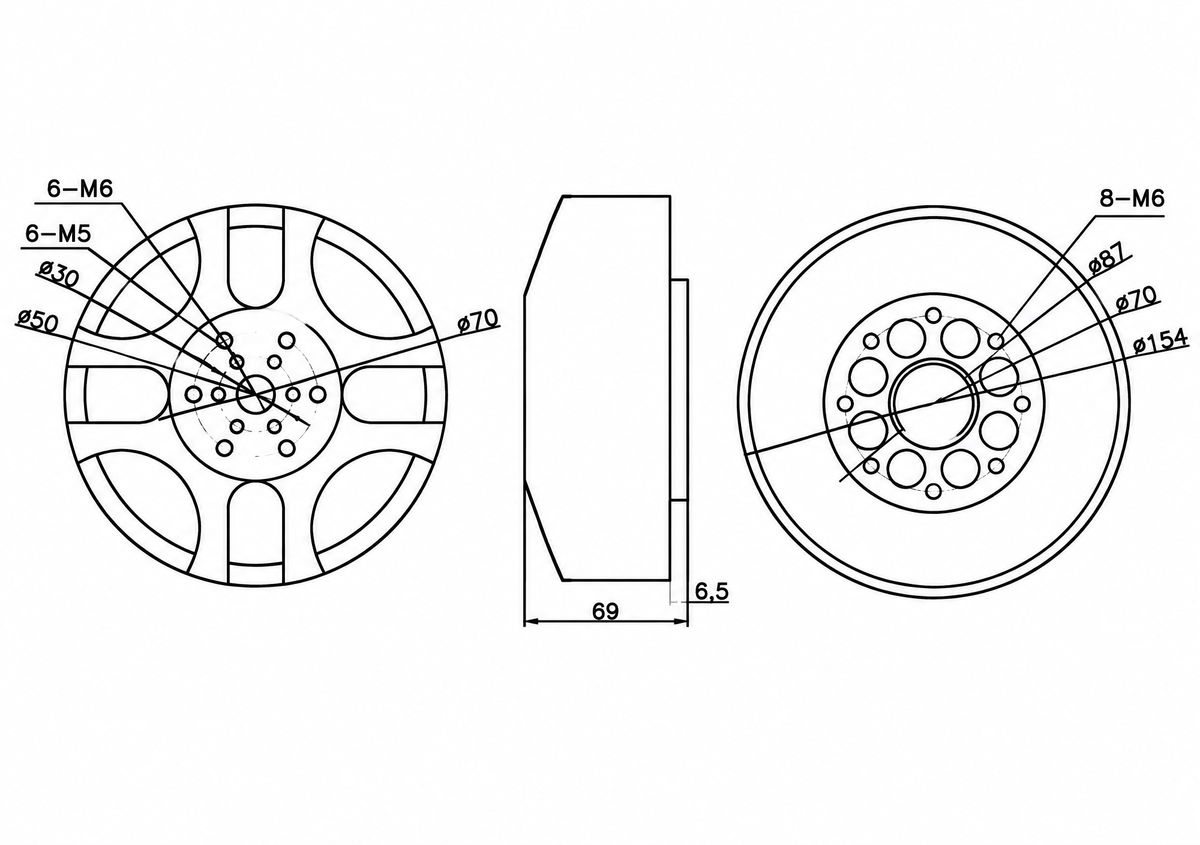

    • SIZE: 154 x 69.5( without shaft )
    • TORQUE: 50Nm
    • THRUST:60KG
    • POLES: 20 (40 MAGANET)
    • SLOT:36
    • PWM:8-16KHZ
    • TIMING DEGREE: 15
    • NET WEIGHT (kg):3.5
    • SHAFT: 15mm

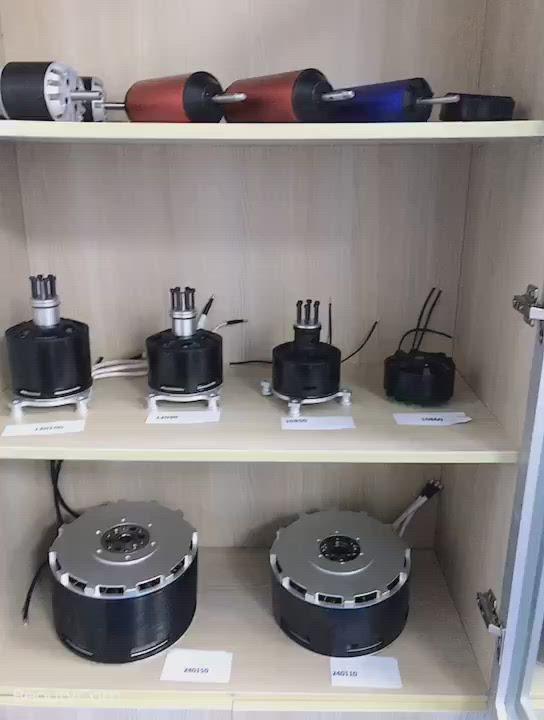

Factory environment

Free RC Hobby is a company founded in2012 China, specializing in thedesign and manufacturing of brushless DC
motors, ESCs, and propellers.

MP15470 Motor use

Mainly used in electric scooter

The scope of application of the company motor

It is widely used in hydrofoil surfboard, electric skateboard bicycle powered paraglider, multi-rotor UAV, fixed-wing robot, electric tool, etc.

Transportation channels

Have USP, FedEX , DHL, TNT, UP SIn different ways.

Company certificate display

We strive to satisfy your needs as they define them and achieve
their expectations while delivering value. This is accomplished by
implementing thehighest industry standards to coordinate and direct
