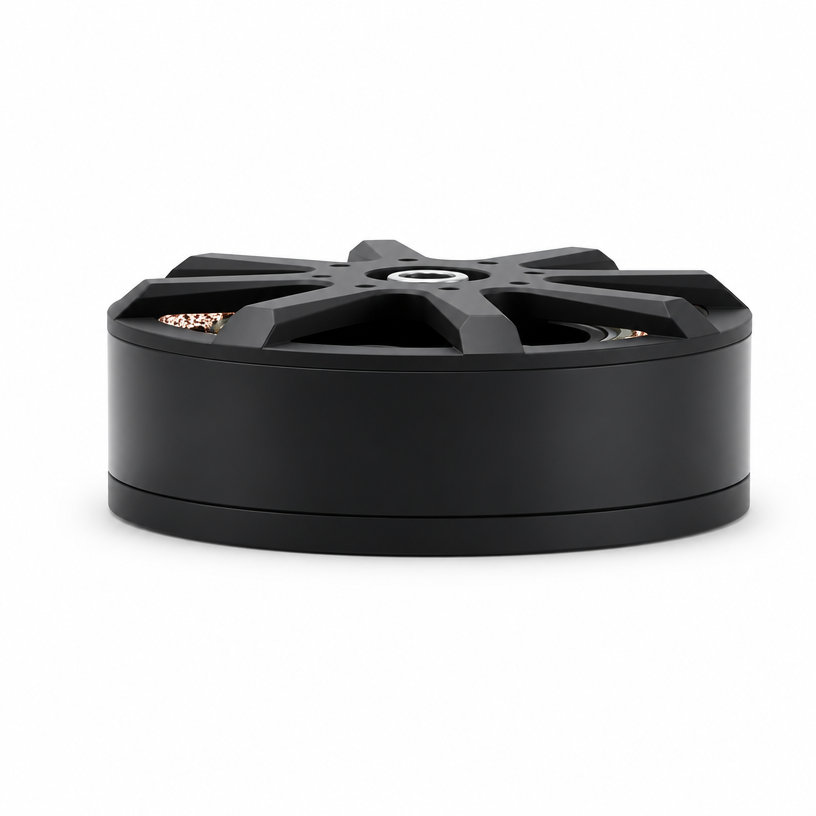

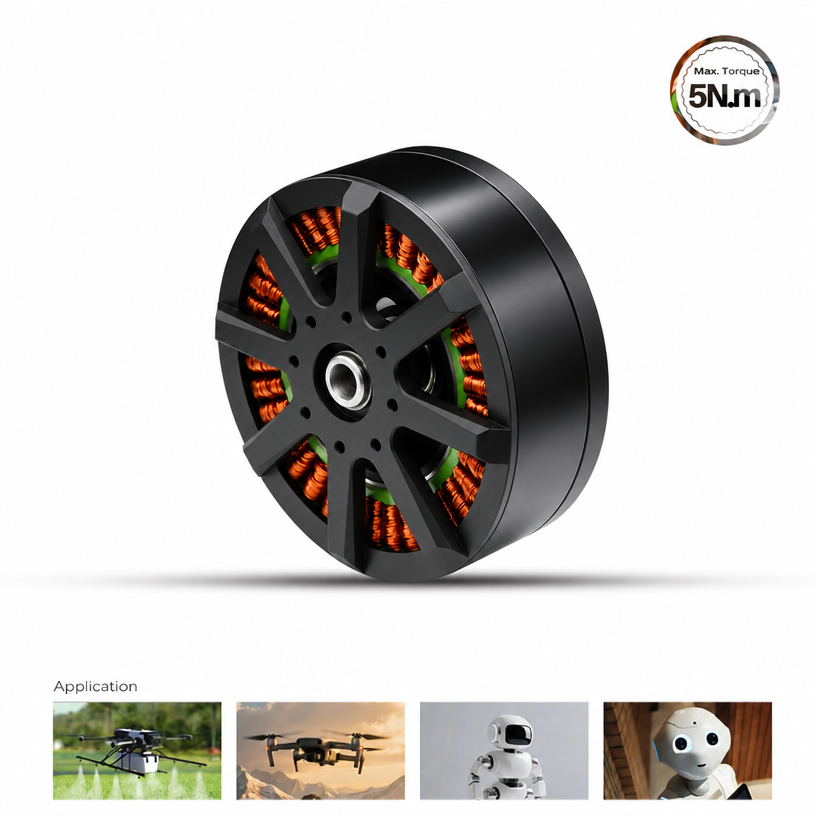

MP 8318 2870W Brushless Motor for Agricultural UAV Drone
8318 100KV Brusheless Motor
Motor KV: 100KV RPM/V
Motor Resistance (RM): 0.0692 Ω
Idle Current (Io/10V) : 1.1A/10V
Max Continuous Current: 62A
Max Continuous Power: 3000W
Lipo Cell: 3-12S
Motor Diameter: 92mm/3.62in
Motor Body Length: 37.8mm/1.49in
No. of Stator Arms: 36
Pole Count : 42
Overall Shaft Length: 38.3mm/1.5in
Bolt holes spacing: 32mm/40mm/1.26in/1.57in
Bolt thread: M4×16
Maximum thrust: 12500g
1 , Hollow heat dissipation;
2) Testing parameter

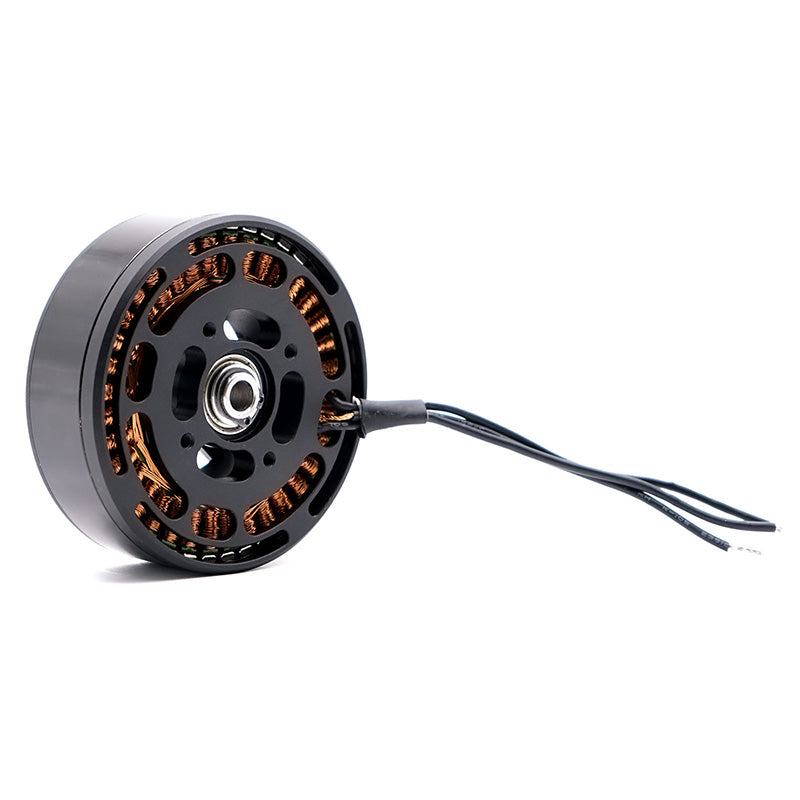

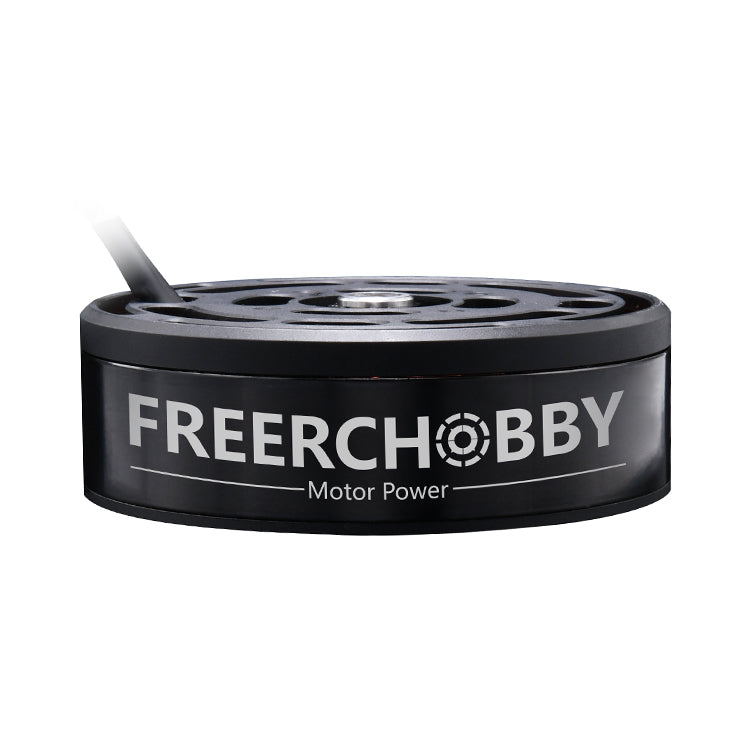

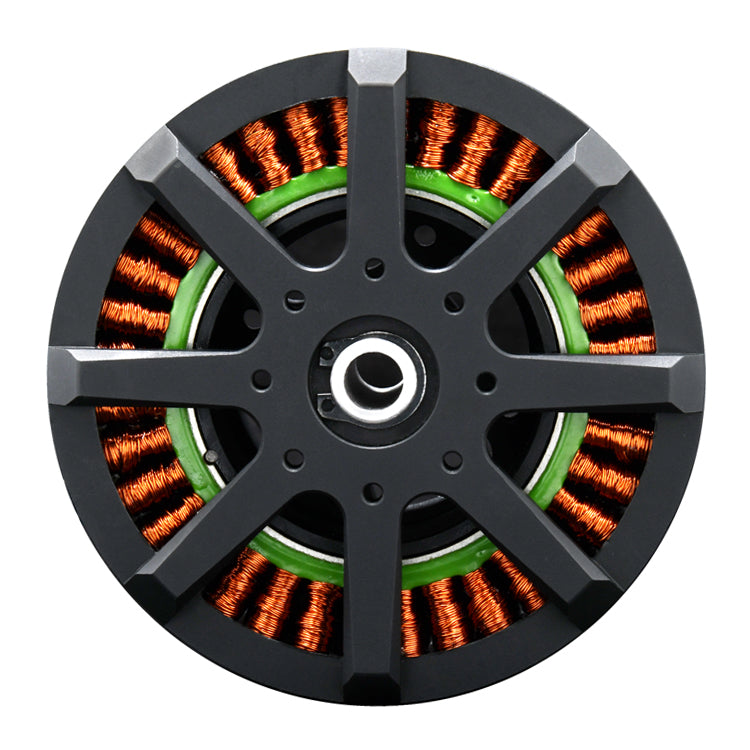

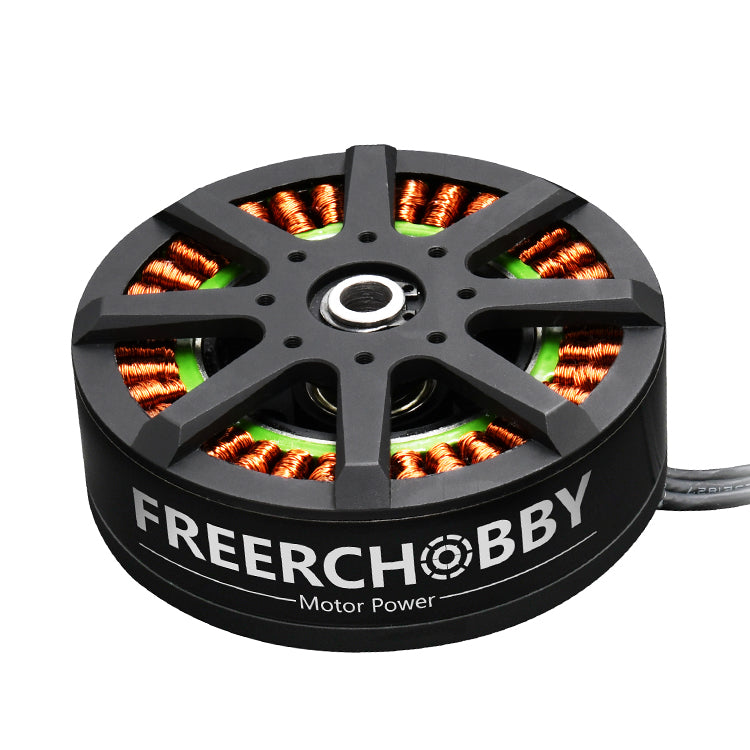

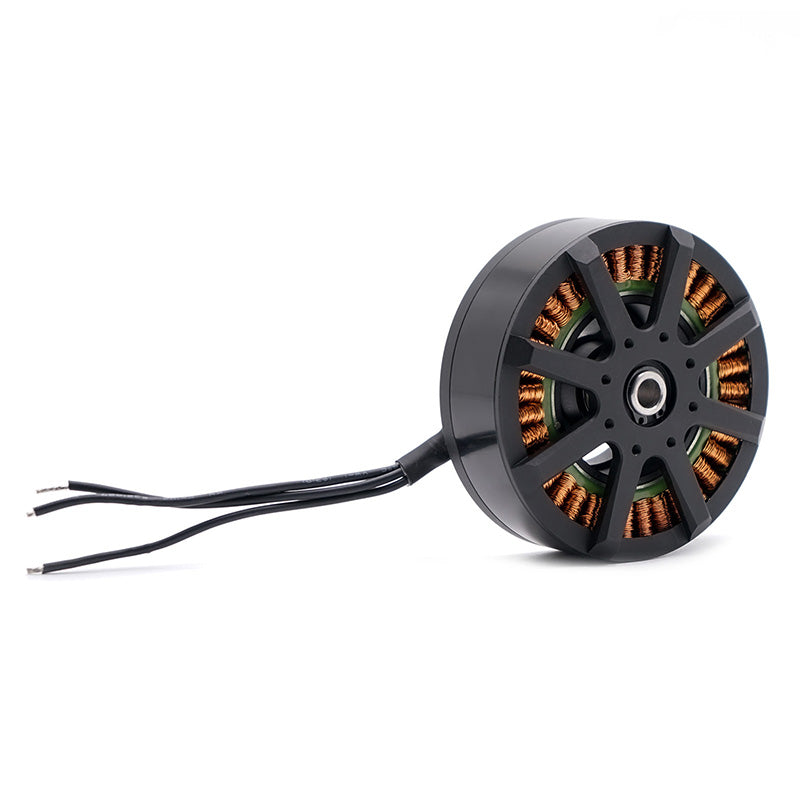

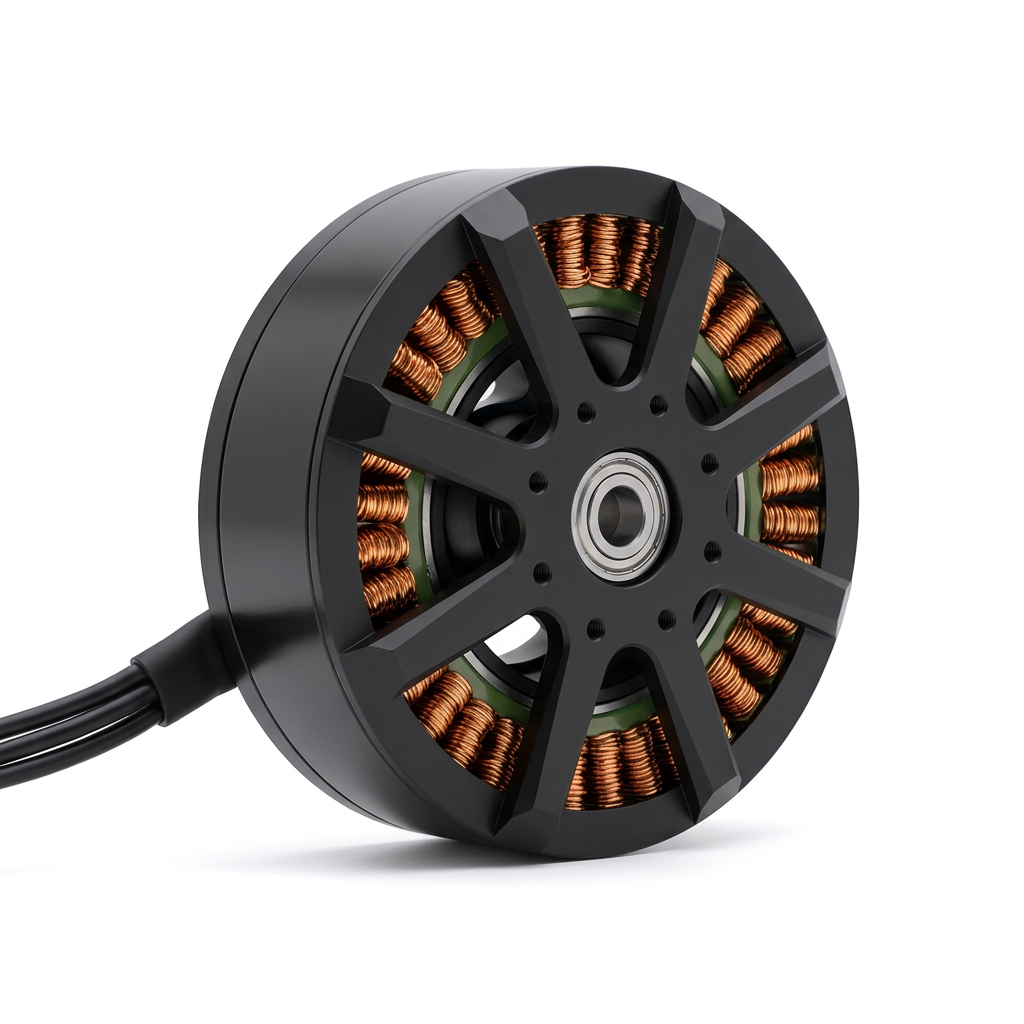

3) Product Image
4) Company Introduction
Dongguan Freerchobby Co.,Limited is a private-owned enterprise, located in Dongguan, which is famous for the world factory with highly developed economy. The company has 1500 square meters of modern industrial plants and advanced assembly line equipment. We are specialized in manufacturing brushless dc motor, controller, model parts, hardware parts and so on. The company has 10 CNC lathes, 5 BLDCM winders and various advanced automatic processing equipment. Our company has a very stable supply capacity, monthly production more than 15000 sets of brushless motor and motor and controller accessories as well as hardware accessories 100000. The products sell well in more than 50 countries and regions from the whole world.
The company strictly controls each process to be standardization, systematization and unification. The company has testing equipment such as dynamic balancing machine, comprehensive tester for BLDCM, noise tester, Gauss tester, tension tester, oscilloscope, etc. to test the performance of motor and controller in a full range and ensure that each performance index can reach the international leading level. All products and parts are in line with ROHS standards, and have won CE and ROHS certification.
The company adheres to the tenet of "quality first, reputation first and service superior", improves the brand awareness, gives full play to the brand advantages, maintains the brand image, and provides the most reliable quality, the best service and the fastest delivery for customers at home and abroad with exquisite technology and standardized management.
Our slogan is "we can do what you need"! We are looking forward to cooperating with you!
5) Production line Photos:
