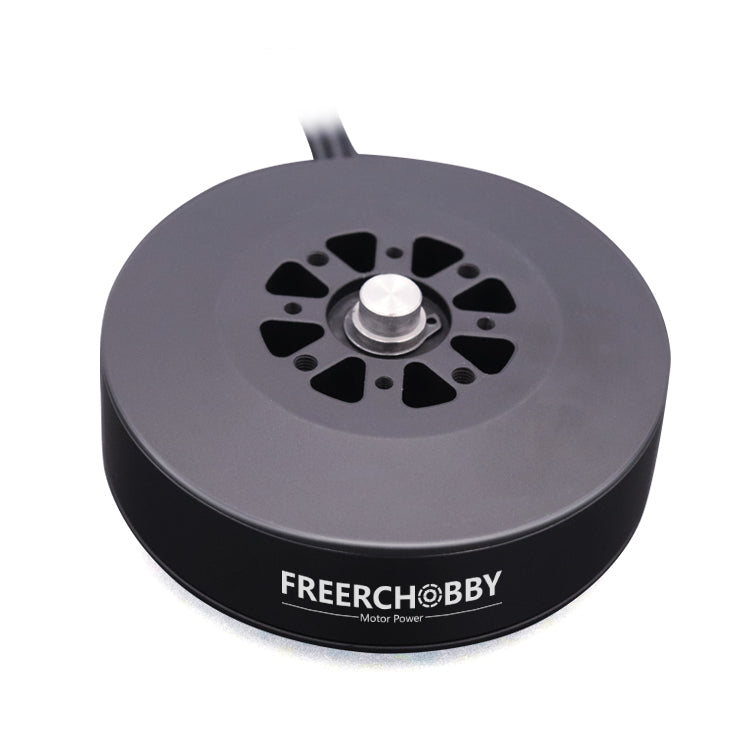

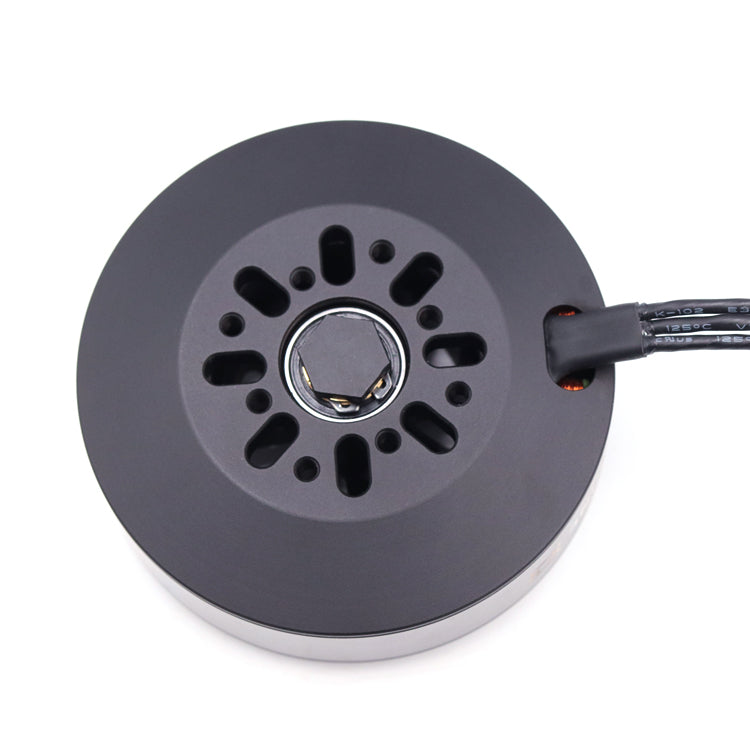

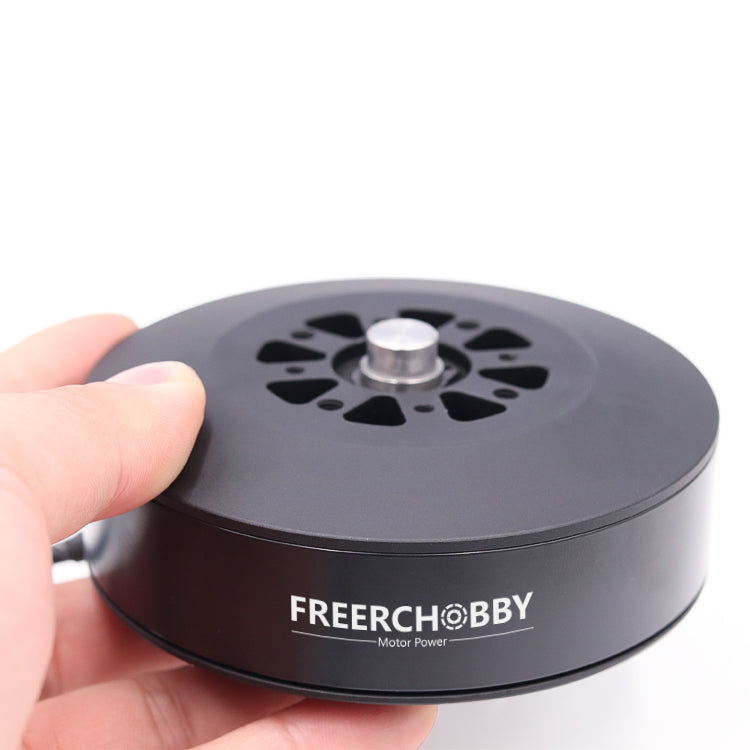

MP8318 2870W IP waterproof version for agructure UAV drone, robotic, EV vehicle

MP8318 2870W IP waterproof version for agructure UAV drone, robotic, EV vehicle

Regular price $75.00 USD
Regular price Sale price $75.00 USD
Sale Sold out
Shipping calculated at checkout.

94 in stock

SKU:

View full details

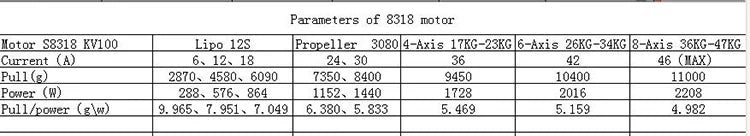

  • Specifications:

    8318 100KV Brusheless Motor

    Motor KV: 100KV RPM/V

    Motor Resistance (RM): 0.0692 Ω

    Idle Current (Io/10V) : 1.1A/10V

    Max Continuous Current: 62A

    Max Continuous Power: 3000W

    Lipo Cell: 3-12S

    Motor Diameter: 92mm/3.62in

    Motor Body Length: 37.8mm/1.49in

    No. of Stator Arms: 36

    Pole Count : 42

    Overall Shaft Length: 38.3mm/1.5in

    Bolt holes spacing: 32mm/40mm/1.26in/1.57in

    Bolt thread: M4×16

    Maximum thrust: 12500g



Factory environment

Free RC Hobby is a company founded in2012 China, specializing in thedesign and manufacturing of brushless DC
motors, ESCs, and propellers.

MP8318 Motor use

For fixed-wing robots and uavs

The scope of application of the company motor

It is widely used in hydrofoil surfboard, electric skateboard bicycle powered paraglider, multi-rotor UAV, fixed-wing robot, electric tool, etc.
